Overview

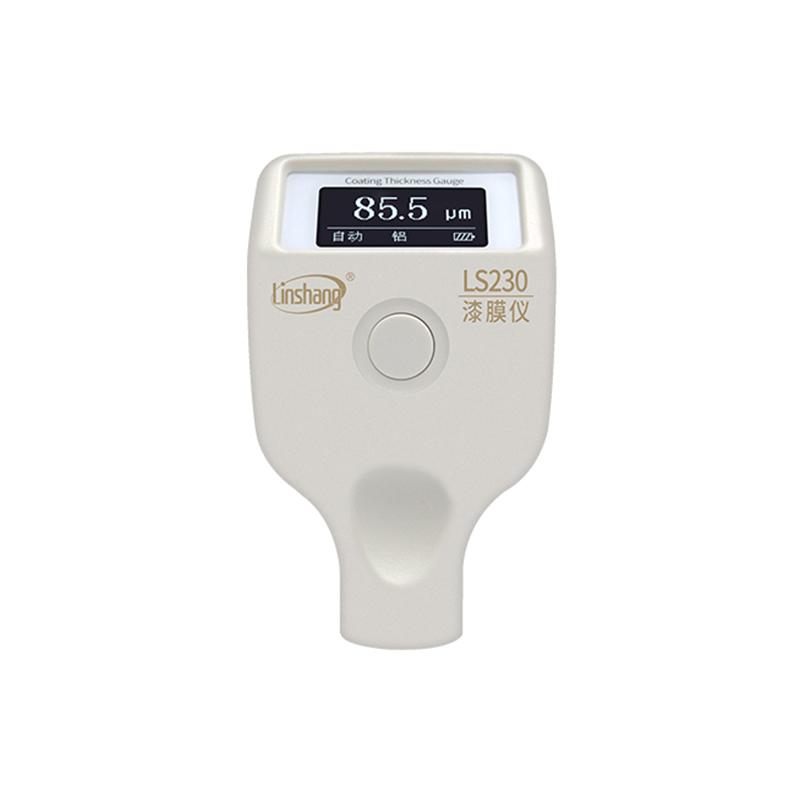

LINSHANG LS230 paint film instrument is a professional equipment for used car paint film thickness detection. It adopts low temperature resistant OLED LCD display and can be used normally in a low temperature environment of minus 40 ° C. The instrument adopts Hall effect and eddy Current two measurement principles, which can quickly measure the thickness of paint film on metal substrates such as steel plates and aluminum alloys, and automatically convert Measurement mode.
Features
1. Fast measurement, complete a measurement in 0.5 seconds
2. Adopt low temperature OLED liquid crystal display to ensure normal use in a low temperature environment of -40 ° C
3. There is only one button, and the operation is simple
4. No need to calibrate after booting, just use the standard board equipped to zero
5. Probe High Hardness Ruby to Ensure Long-term Use
6. Adopt iron-aluminum dual-use Probe, automatically identify steel plate, aluminum alloy and other materials and automatically switch Measurement mode
7. Measurement modes of "Fe", "NFe" and "Fe/NFe", adjustable in Chinese and English and in μm and mil
8. With temperature compensation function and analog signal terminal digitalization function to ensure the stability of Sensor signal
9. Ultra-low power consumption, with automatic shutdown function without operation for 3 minutes, effective energy saving
Principle
LINSHANG LS230 film instrument adopts Hall effect and eddy Current two Measurement principles, through the built-in Probe to detect the thickness of the paint film on the metal substrate, the instrument can automatically identify the substrate of different materials such as steel plate and aluminum alloy and automatically convert the corresponding Measurement mode.
Applications
Used car paint film thickness detection
Steps
Step 1 Power on
2. Use the equipped standard board to zero
3. Probe the measurement surface for measurement
Notice
• Generally, the paints thickness gauge adopts LCD screen display, which will fail when used at minus tens of degrees and cannot display data normally
• Minimum measurement surface is φ 25mm
• Minimum radius of curvature: convex 5mm/concave 25mm
• Minimum substrate thickness: 0.2mm for Fe/0.05mm for NFe
• Operating temperature range -40 ° C to 50 ° C
• Storage Temperature range -50 ℃ to 60 ℃
