Overview

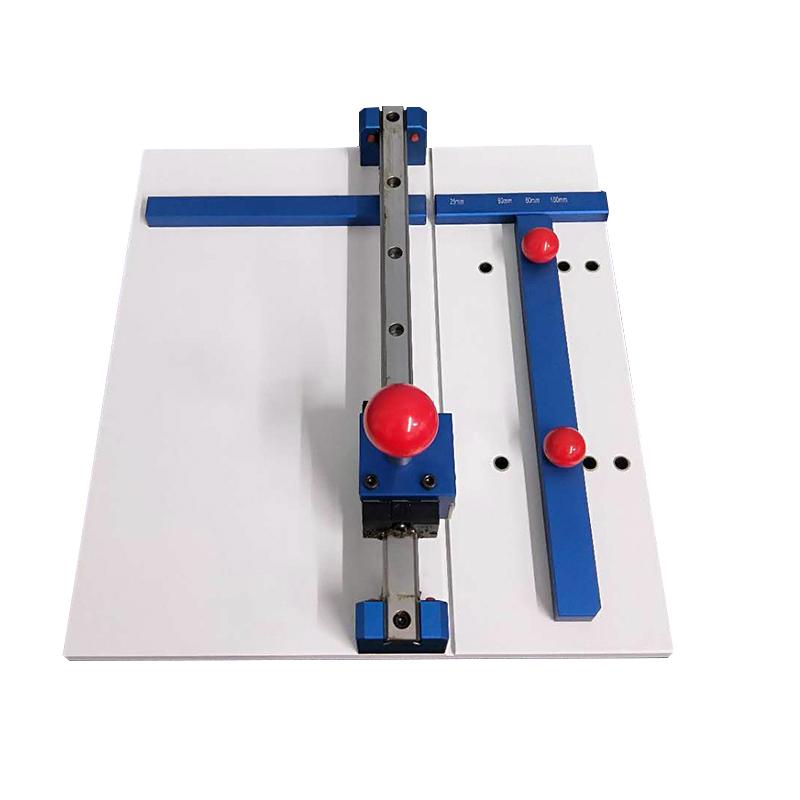

Side pressure Sampler is a special equipment for Corrugated Board Edge Crush Test and adhesive strength test sample sampling. It can cut the specified size sample conveniently, quickly and accurately, and is a satisfactory test aid for Corrugated Board and carton manufacturers, scientific research institutes and mass supervision and inspection departments.
Features
1. Linear guide is used as the sliding unit for smoother and faster sampling
2. Imported tungsten sheet, sampling without burrs, durable
3. Two positioning pins, one positioning, no need to adjust the size of multiple gears
4. Any combination can cut a variety of samples
Principle
The edge pressing Sampler realizes smooth and fast sampling operation through the sliding unit of the linear guide rail, adopts imported tungsten sheet to ensure that the cutting is free of burrs, and realizes one positioning through two positioning pins, and can cut samples of various specifications without adjustment.
Applications
Corrugated Board and carton manufacturers, research institutes, mass supervision and inspection departments
Standards
GB/T 6546-1998 "Determination of Corrugated Board Edge Crushing Test", GB/T 6548-1998 "Determination of Corrugated Board adhesive strength"
Steps
1. Place the specimen on the Sampler
2. Positioning through two positioning pins
3. Slide the cutting unit along the linear guide
4. Complete the cutting of the specified size sample
Notice
• Ensure sampling thickness does not exceed 18mm
• The sampling width is controlled within the range of 25 +/- 0.5mm
• Regularly check the abrasion of imported tungsten sheets
• Keep the linear guide clean and lubricated
• Confirm that the positioning pin is in the correct position before use
