Overview

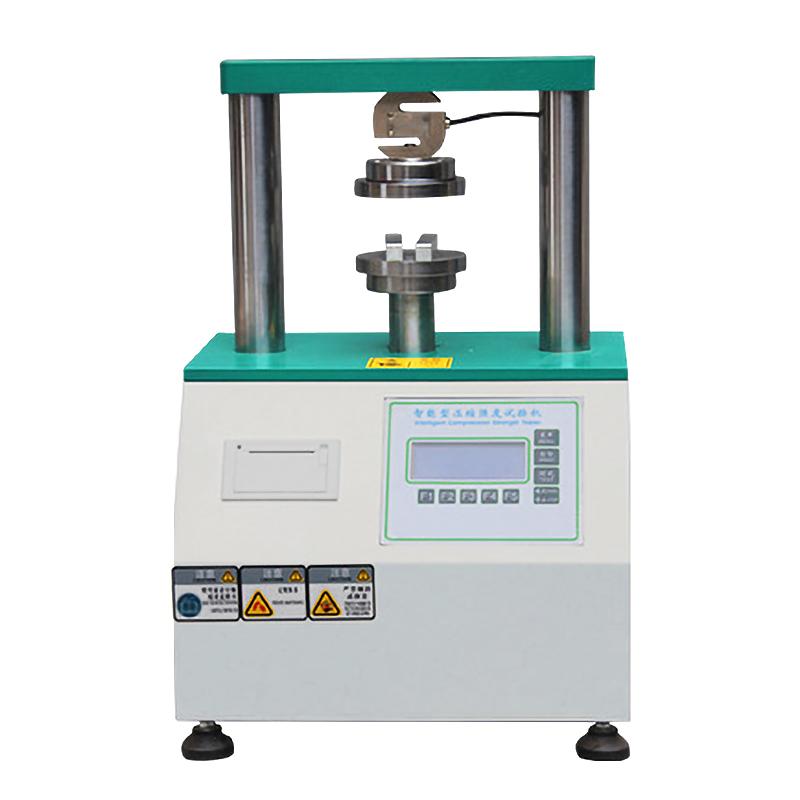

HP-YSY3000 electronic compression tester is a professional Cardboard compressire strength testing instrument of HENGPIN brand, also known as computer measurement and control compression tester, Cardboard Compression Tester, etc. The instrument adopts High Accuracy Sensor and high-speed processing chip design to ensure sampling Precision. It can test a number of performance parameters such as raw paper Ring Crush Test, Corrugated Board Edge Crush Test, adhesive strength, Flat Crush Test, and laboratory post-corrugation Compressive Strength and compressive strength, in line with relevant national standards.
Features
1. LCD display, PVC control panel, user-friendly design
2. Test process automatic measurement, intelligent judgment of experimental results, automatic return
3. Microcomputer processing system, enter Grammage and size, and display strength results after testing
4. The microcomputer collects data and calculates the pressure value, and the microprinter prints the test results
5. Meet four test modes, edge pressure, flat pressure, ring pressure, gluing four strength tests
6. Adopting synchronous motor drive, the transmission is smooth and accurate, making the output pressure more accurate
Principle
The instrument uses High Accuracy Sensor and high-speed processing chip for data collection and processing, provides smooth and accurate pressurized power through synchronous motor drive system, and the microcomputer system automatically controls the test process and calculates the test results to achieve accurate measurement of Cardboard compressire strength.
Applications
Cardboard compressire strength performance test, paper Encasement test
Standards
Relevant national standards
Steps
1. Enter Grammage and Size Parameters
2. Select the test mode (side pressing, flat pressing, ring pressing, or gluing)
3. Start the test, the instrument automatically measures and judges the results
4. Automatic return after the test is completed
5. Microprinter printing test results
