Overview
The PosiTector SHDA3 Shore Shore Durometer is a Defelsko branded Handheld device for the measurement of Crowd Hardness in Non-metallic materials. This model is suitable for the Shore A Hardness range with user adjustable Measurement time and Screen Inverted Timing function and meets national and international standards.
Features
1. Simple: enhanced one-handed menu operation, including Chinese interface; user-defined test time, screen countdown display; reset function can quickly restore the hardness gauge to the factory state
2. Durable: acid-proof, oil-proof, waterproof, solvent-proof, dust-proof; anti-collision rubber protective cover with waist clip
3. Accurate: Each instrument has a calibrated certificate traceable to NIST standards; automatic filtrate mode, according to international standards, filtrate less than 20% and higher than 90% of the readings; high resolution mode, screen Display resolution increased to 0.1; random measurement test block; ISO and ASTM standards
4. Universal: can and DeFelsko Ultrasonic Thickness Gauge, Coating thickness gauge, dew point instrument, salt measurement instrument, surface roughness instrument, Pap hardness gauge shared host; high contrast ratio reversible color display, with backlight; inverted display, convenient reading; use alkaline battery, optional rechargeable battery
5. Effective: continuous display including average, Standard Deviation, maximum/MIN Minimum and measurement times; upper and lower limit alarm; screenshot function, can save the screen display into picture format; connect to the computer conveniently through the USB data cable, and power to the host; can download and browse the data of the host through the computer; can upgrade the host program through the computer
6. Advanced features: can store 1000 sets of data, 100,000 data; real-time mapping of measurement data; WiFi and PosiSoft.net wireless synchronization and download software; Bluetooth 4.0 transmits data to PosiTectorAPP or optional Portable printer; BLE API can be integrated into third-party software; Miscellaneous Probe data stored by the host, such as thickness, salt, asperity, etc., are in different groups
Principle
The PosiTector SHDA3 Shore Shore Durometer is used to measure the Hardness of Non-metallic materials by Cedar method. The indenter is pressed into the surface of the material under standard pressure, and the Hardness value is calculated according to the Cedar depth or area.
Applications
Soft plastic, soft rubber, neoprene, silicone rubber, etc
Steps
1. Turn on the device power supply
2. Select Measurement mode and set test time

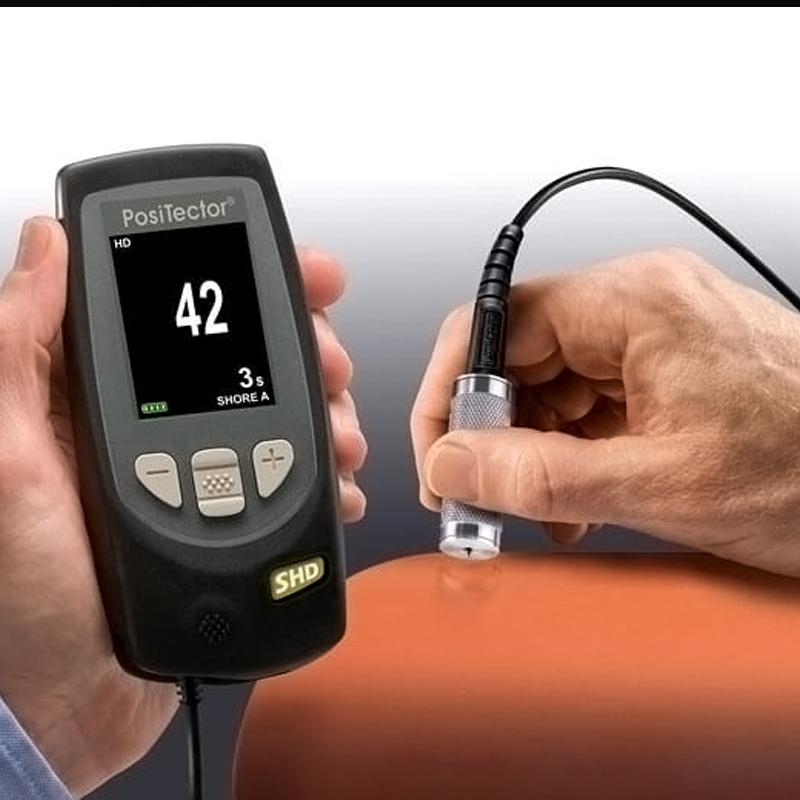

3. Press the Probe vertically into the surface of the tested material
4. Wait for the screen countdown to end and read the Hardness value
5. Transfer data to a computer or mobile device via USB, WiFi or Bluetooth
Notice
• Probe clean to avoid contamination affecting Measurement accuracy
• Keep the equipment stable during measurement and press the material vertically
Periodically calibrated for accuracy
• Avoid use in extreme temperatures or Humidity environments
• Turn off the power in time after use to save battery
