Overview

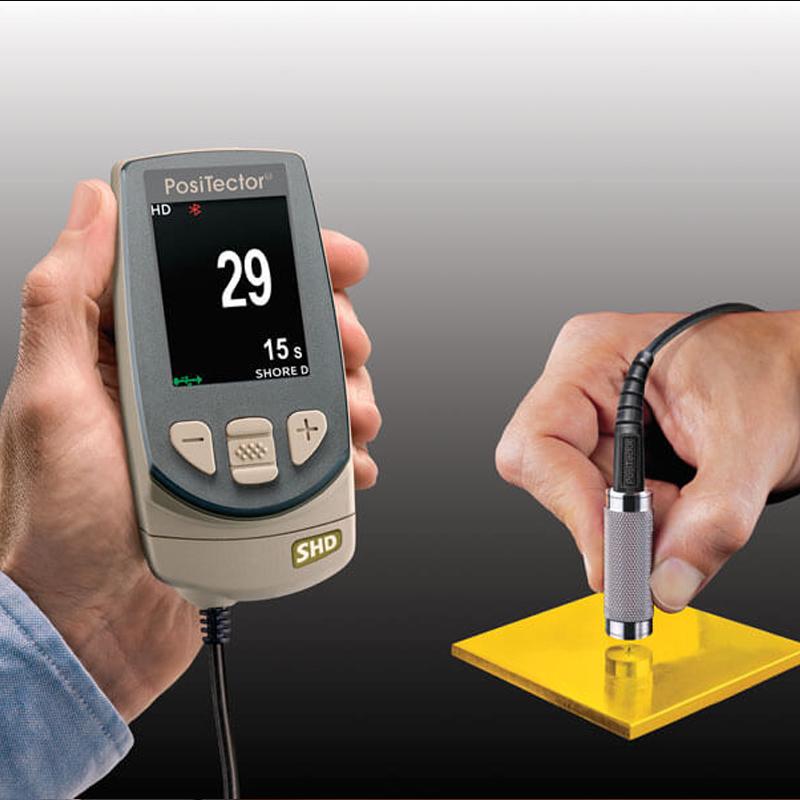

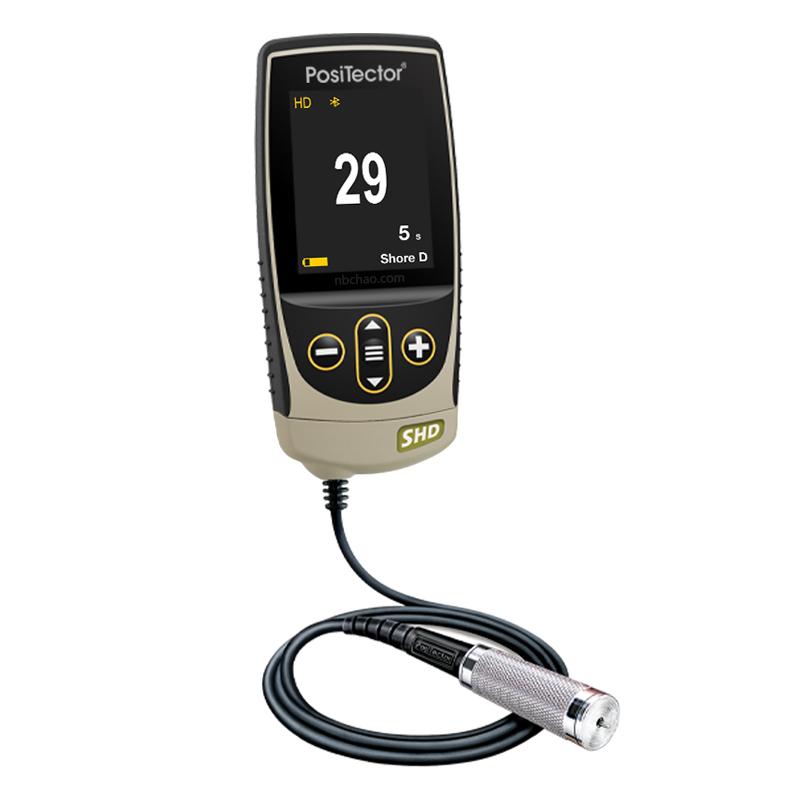

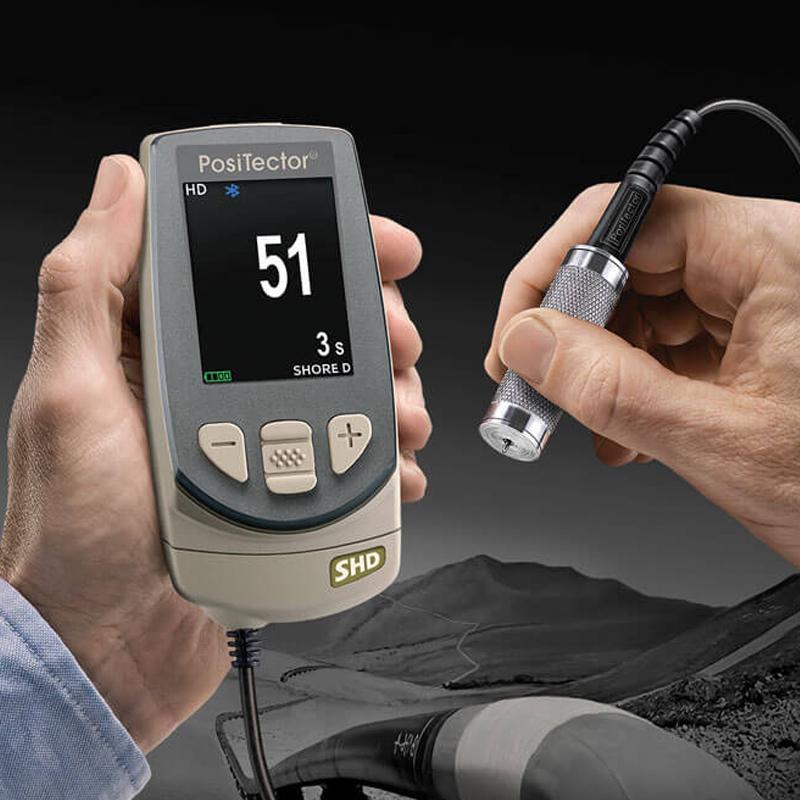

The Defelsko PosiTector SHDD3 Shore Shore Durometer is a Handheld device designed for the measurement of Crowd Hardness in Non-metallic materials. This model is suitable for the Shore D Hardness range and features user-adjustable Measurement time, Auto Ignore mode, and resistance to solvents, acids, water, and dust. It also supports USB, WiFi, and Bluetooth connectivity and includes a NIST-traceable calibrate certificate.
Features
1. Simple: Enhanced one-handed menu operation, including Chinese interface; user-defined test time, screen countdown display; reset function can quickly restore to factory state.
2. Durable: acid-proof, oil-proof, waterproof, solvent-proof, dust-proof; anti-collision rubber protective cover with waist clip.
3. Accuracy: Each instrument has a calibrated certificate that can be traced back to NIST standards; the automatic filtrate mode filtrates readings below 20% and above 90%; the high resolution mode displays 0.1; the measurement test block is randomly provided; it meets ISO and ASTM standards.
4. Universal: can be shared with DeFelsko's Ultrasonic Thickness Gauge, Coating thickness gauge and other hosts; high contrast ratio reversible color display with backlight; inverted display for easy reading; use alkaline batteries, optional rechargeable batteries.
5. Effective: Continuous display of average, Standard Deviation, Maximum/MIN Minimum and measurement times; upper and lower limit alarm; screenshot function to save pictures; USB connection to computer power supply and data transmission; can download, browse and upgrade data through computer.
6. Advanced features: store 1000 sets of data, 100,000 data; real-time mapping of measurement data; WiFi and PosiSoft.net wireless synchronization; Bluetooth 4.0 transmission to APP or printer; BLE API integrated third-party software; host stores Miscellaneous Probe data in different groups.
Principle
PosiTector SHDD3 Shore Shore Durometer evaluates Hardness by applying pressure to Non-metallic materials through Probe based on the principle of Cor hardness testing. The device adopts automatic ignore mode to filtrate invalid readings according to international standards to ensure Measurement accuracy.
Applications
Hard rubber, epoxy resin, rigid plastic, PVC, acrylic, etc
Standards
ASTM D2240、ISO 868/7267/7619、DIN 53505
Steps
1. Turn on the power supply of the device and select the Chinese interface.
2. Set the user-defined test time and observe the screen countdown.
3. Align the Probe to the measured material for measurement.
4. Use the reset function to restore factory settings (if necessary).
5. Connect the computer or APP to transfer data through USB, WiFi or Bluetooth.
Notice
Equipment is suitable for non-metallic materials, avoid using incompatible materials.
• Probe clean during measurement to avoid affecting accuracy.
• Use alkaline batteries or rechargeable batteries and pay attention to power management.
When storing data, pay attention to group classification to avoid confusion.
Make sure the software is compatible when connecting the computer, and update the program regularly.
