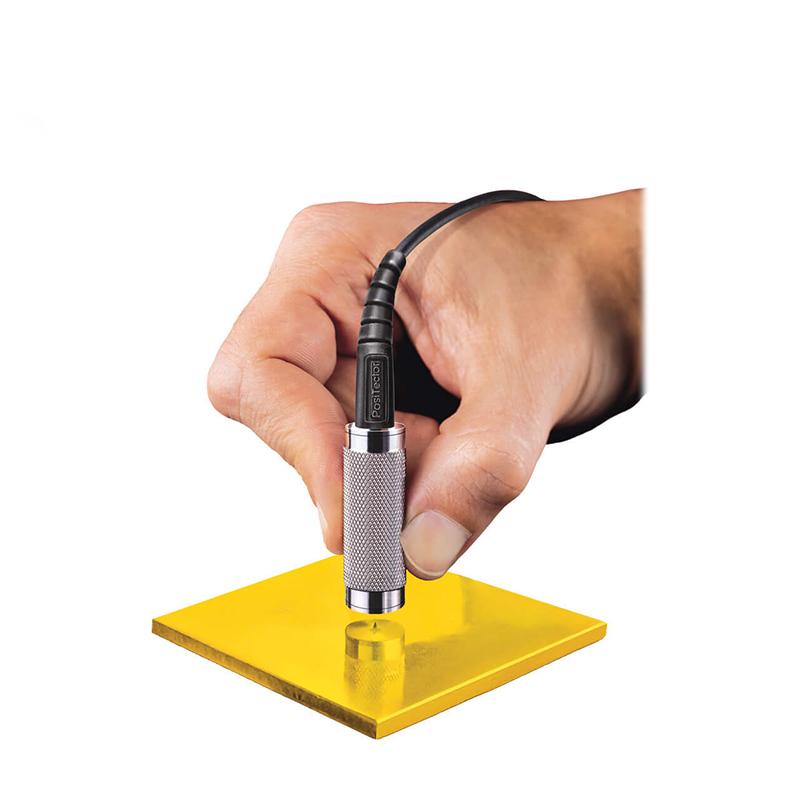

Defelsko PRBSHDA Shore DuroMeter Probe A Measurement range 0~ 100HA accuracy +/- 1HA

Name: Defelsko PRBSHDA Shore DuroMeter Probe A Measurement range 0~ 100HA accuracy +/- 1HA
Brand: Defelsko
SKU: NB032549
Price: 777.0 USD
Availability: InStock

$ 777.00Ex works

Measurement range 0~ 100HA, accuracy +/- 1HA, resolution 0.1HA, suitable for soft materials, in line with ASTM D2240 and other international standards, Probe height 54.4mm, diaMeter 18.3mm.

Model

PRBSHDA

Get Quote

Category : Shore Durometer

Brand : Defelsko

SKU : NB032549

Service :The delivery and service By NBCLab.Com

Overview

PRBSHDA Shore Shore Durometer A Probe Measurement range 0~ 100HA, Measurement accuracy +/- 1HA, resolution 0.1HA, suitable for soft plastics, soft rubber, neoprene, silicone rubber and other materials.

Features

1. Measurement range 0~ 100HA 2. Measurement accuracy +/- 1HA 3. Resolution 0.1HA 4. Suitable for a variety of soft materials 5. Probe height 54.4mm 6. Probe diameter φ 18.3mm

Principle

The Probe uses the Shore A hardness testing principle to determine the Hardness value by measuring the depth of the Crowd of a material under a specific pressure.

Applications

Soft plastic, soft rubber, neoprene, silicone rubber

Standards

ASTM D2240、ISO 868/7267/7619、DIN 53505

Steps

1. Align the Probe vertically on the surface of the material under test 2. Apply standard pressure for measurement 3. Read the displayed Hardness value 4. Record measurement results

Notice

• Ensure that the Probe is in vertical contact with the tested surface • Avoid measurement on curved or irregular surfaces • Measurement accuracy calibrated regularly • Keep Probe Clean and Pollution Free • Use according to standard operating procedures

Measurement Range
0~100 HA
resolution
0.1 HA
measurement error
±1 HA
Typical application
Soft plastic, soft rubber, neoprene, silicone rubber, etc
Meet the standard
ASTM D2240, ISO 868/7267/7619 and DIN 53505
Probe height
54.4mm
Probe diameter
Φ18.3mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
