Overview

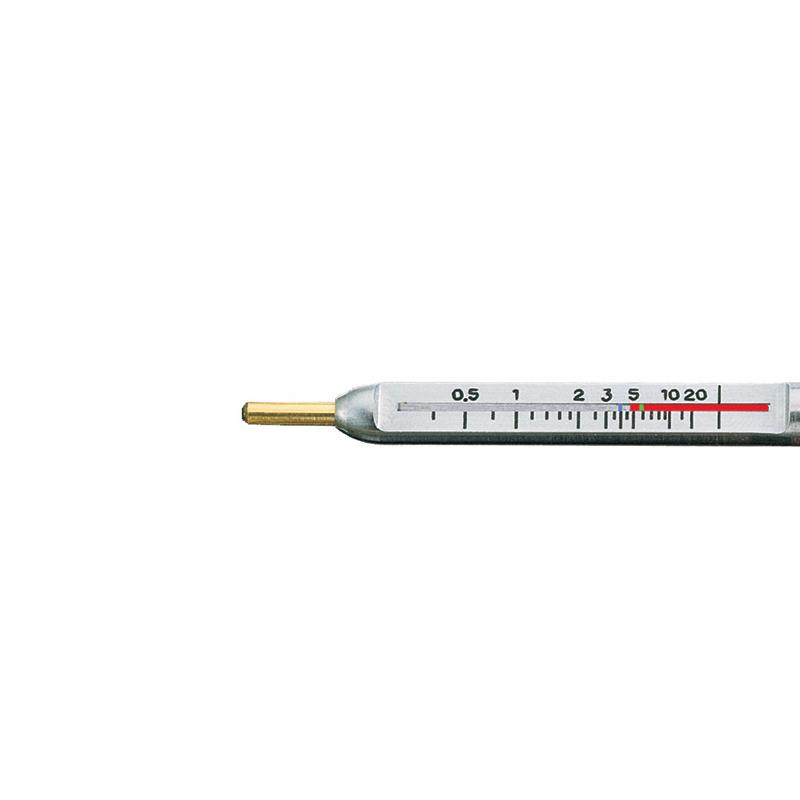

The Defelsko PosiPen Coating thickness gauge is a pen-like magnetic pull-off Coating thickness measurement instrument. The measurement head has a very small magnet, which can be accurately placed on very small parts, peaks or valleys for measurement. The instrument uses the principle of magnetic, does not require any external power supply or battery power, and can be easily measured by magnetic pull-off. Coating thickness is strong, simple, economical and easy to carry. It is especially suitable for the measurement of nonmagnetic coatings on steel such as paints, enamels, Eletroplating, hot dip galvanizing of steel.
Features

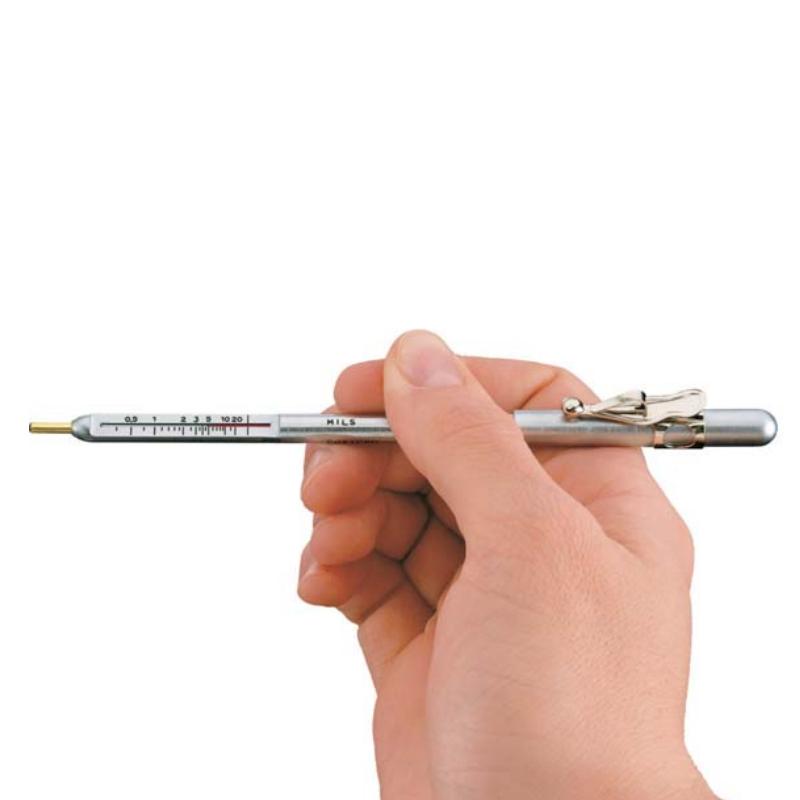

1. Simple to operate, mass and light to carry, like a ballpoint pen
2. No Batteries or Power Supply Required, Rugged and Unaffected by Mechanical Impact, Acid, Oil, Water and Dust
3. No user adjustment required, calibrated certificates can be traced back to include PTB, high wear resistant probes with long life and continuous accuracy, each PosiPen offers two scale units in milliliters (inches) and microns (metric)
Principle
PosiPen uses the principle of magnetic Induction to measure Coating thickness by magnetic pull-off without any external power supply or battery power supply.
Applications
Small, hot or hard-to-reach Coating thickness measurement, site inspection, hot spray-on lining, refineries, petrochemical plants, Eletroplating, chromium, zinc, galvanizing, powder coatings
Standards
ASTM D7091/B499、ISO2808
Steps
1. Place the PosiPen measurement head accurately on the surface of the part to be tested
2. Coating thickness measurement by magnetic pull-off

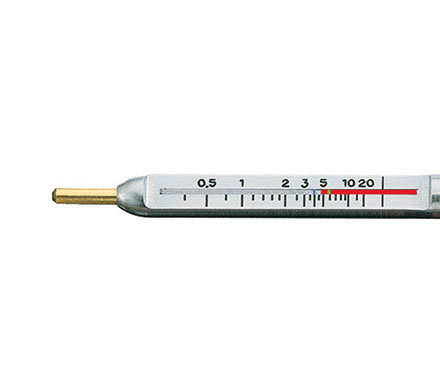

3. Read the surface film thickness scale indicator value
Notice
• Recommended for use in specified applications such as small, hot or hard to reach Coating thickness measurement
• Suitable for on-site inspection and can be conveniently placed in shirt pockets
• Probe Contact Temperature range -100 ℃~ 230 ℃
