Overview

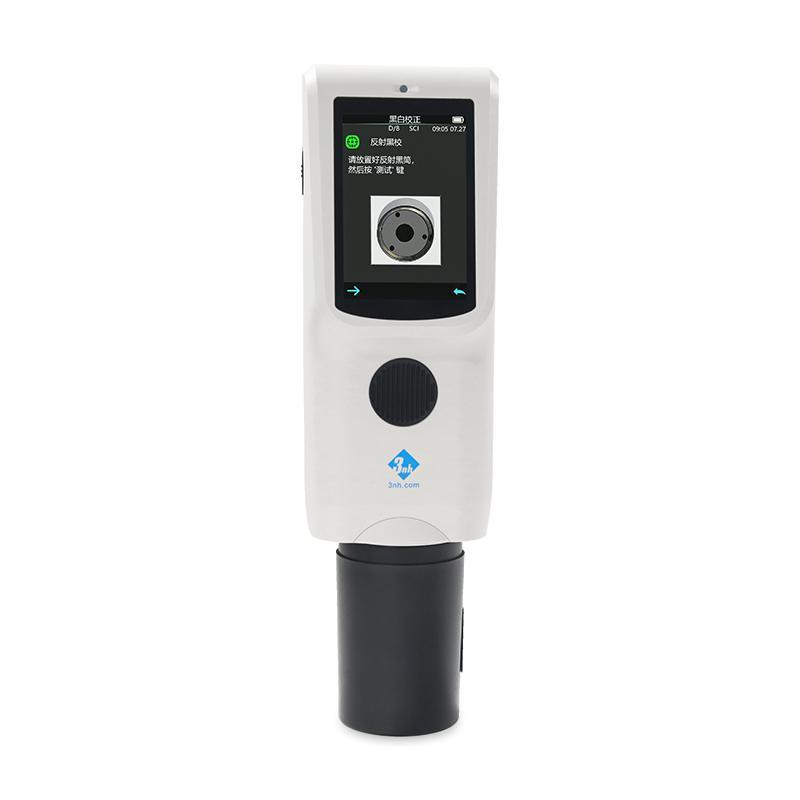

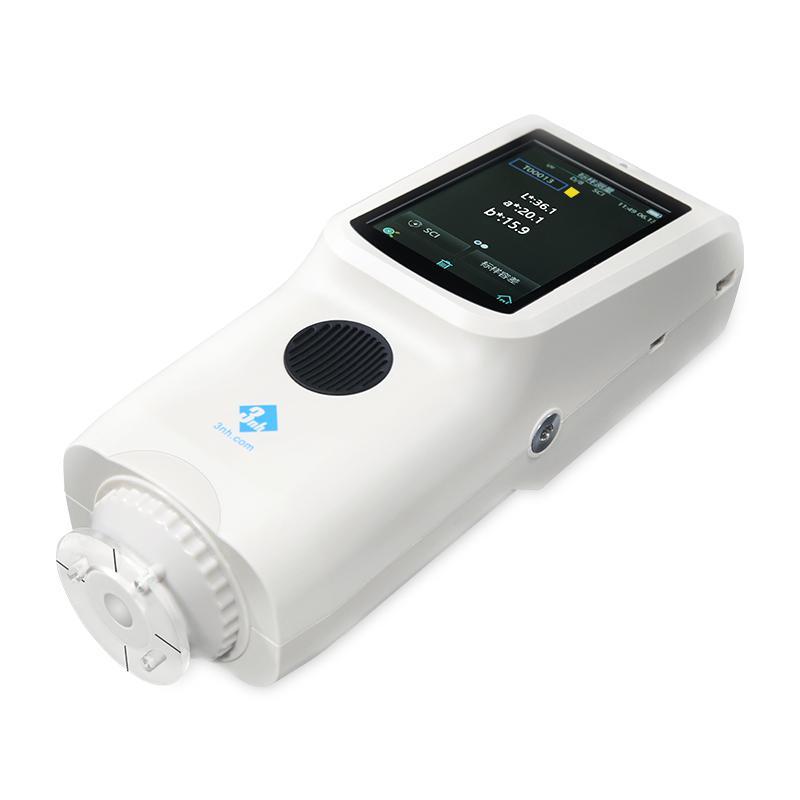

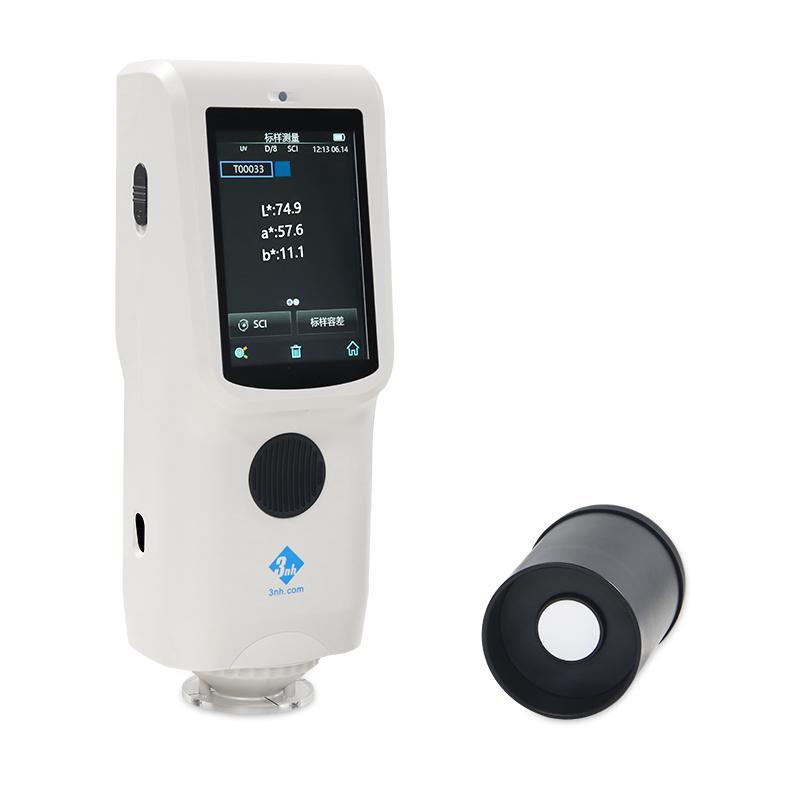

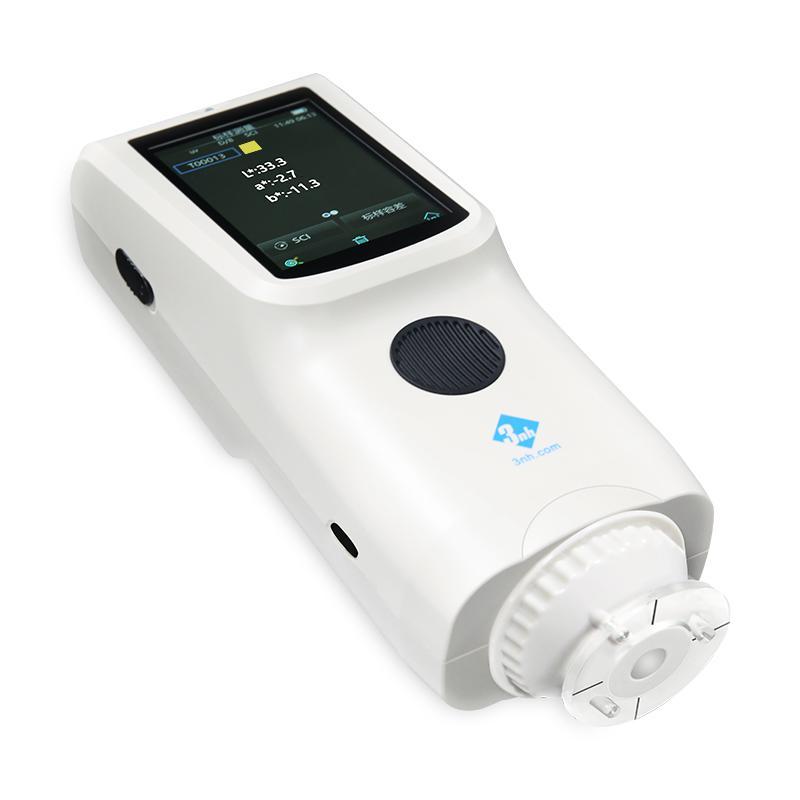

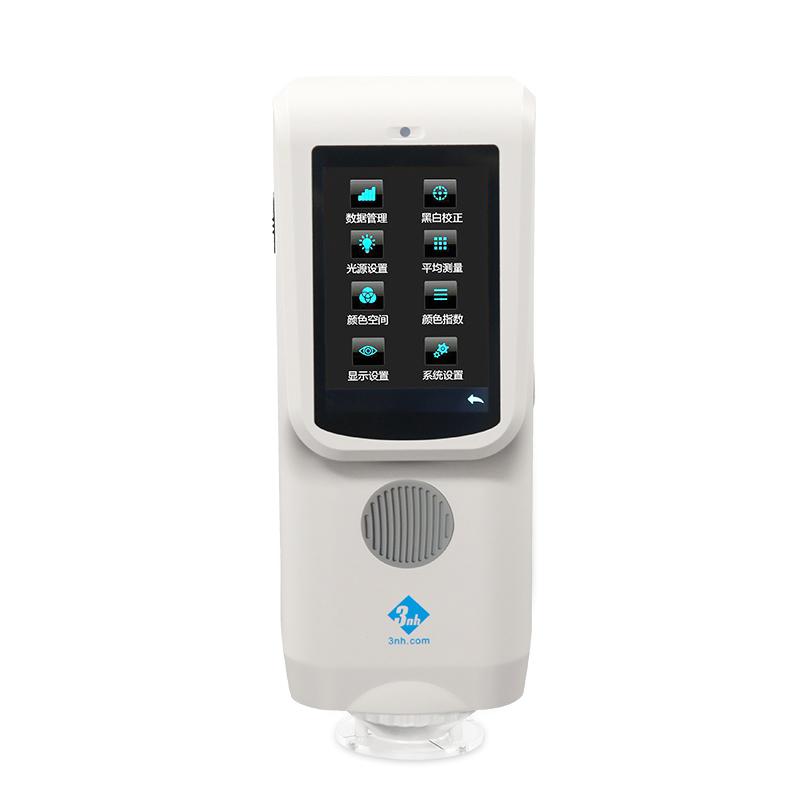

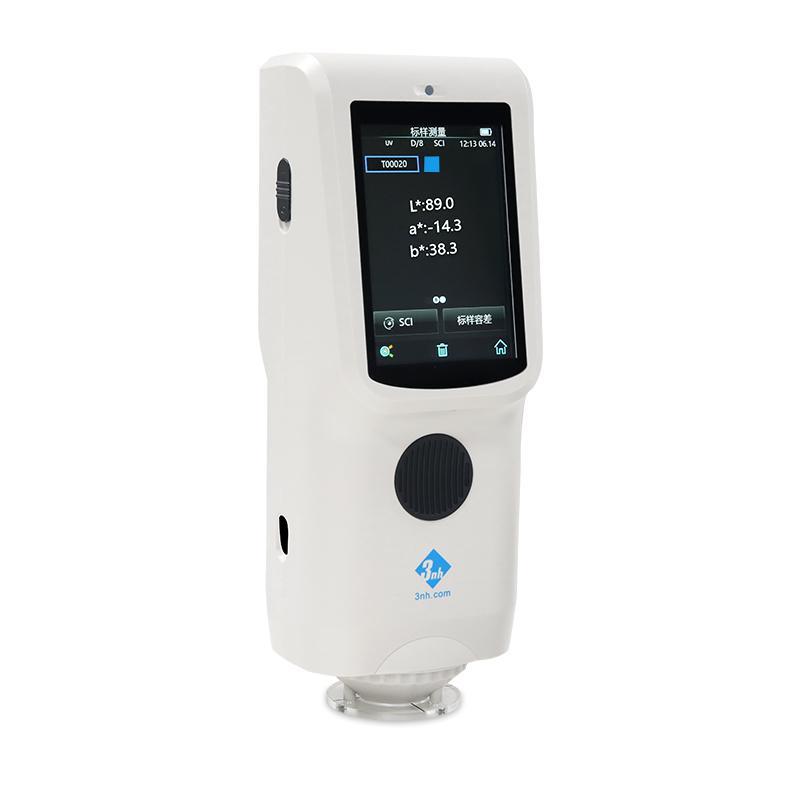

TS7036 is a 3nh use of independent spectroscopic core technology research and development of Portable color difference meter, is a high-level color difference meter under the spectroscopic architecture, in addition to ensuring accurate relative value Delta E at the same time, but also to ensure the absolute value L, A, B long-term accuracy, anytime and anywhere by international standards and national standards Measurement. Using built-in silicon photodiode array (double row 32 groups) sensor, imported whiteboard, Repeatability Delta E * ab easily controlled within 0.05, while taking into account the convenience of Measurement speed and operation, connected to PC software or not PC software can quickly carry out color difference measurement judgment, powerful, 4/8mm double measurement diameter to meet the plastic electronics, paints inks, Spinning & weaving garment printing, printing, ceramics and other industries in the production and quality inspection of accurate color difference control.
Features
4/8Mm double measurement diameter, 10 ° observer angle, can meet the needs of most industry customers;
2. Combination of Full Light spectrum LED Illuminant, Planar Grating Spectroscopic, True Color Capacitive Touchscreen, High starting point configuration;
3, silicon photodiode array (dual 32 groups) sensor, display accuracy 0.01, Repeatability is good;
4. Illuminant life 5 years is greater than 3 million measurements, lithium battery 6000 measurements within 8 hours, can be recharged repeatedly and has a long battery life;
5. Data storage master standard 1000, sample 30000, fast data search, analysis and comparison.
Principle
TS7036 spectroscopic color difference meter adopts D/8 illumination observation conditions, SCI/SCE synthesis technology, provides sufficient Light spectrum distribution through full-band equalized LED Illuminant, uses silicon photodiode array Sensor for Light spectrum Response, and combines planar grating spectroscopic technology implementation Color measurement. ETC real-time calibrating technology ensures the accuracy of each test, and camera viewing and positioning improves the accuracy of measurement area judgment.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, ceramics
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Align the measured area through camera viewfinder positioning or stabilizer positioning;
2. Select Single measurement or Average Measurement mode;
3, start the measurement, the instrument automatically completes the data collection;
4. View the displayed Light spectrum, chromatic value or color difference results;
5. Conduct data management and analysis and comparison through SQCX software.
Notice
• Operating Ambient Temperature should be between 0~ 40 ℃, Humidity 0~ 85% RH No condensation
• Storage Ambient Temperature should be between -20~ 50 ℃, Humidity 0~ 85% RH No condensation
• The altitude should be less than 2000m
• Regularly clean imported whiteboards to ensure measurement accuracy
• Avoid direct exposure to the Sensor
• Charge the battery in time to ensure continuous measurement
