Overview

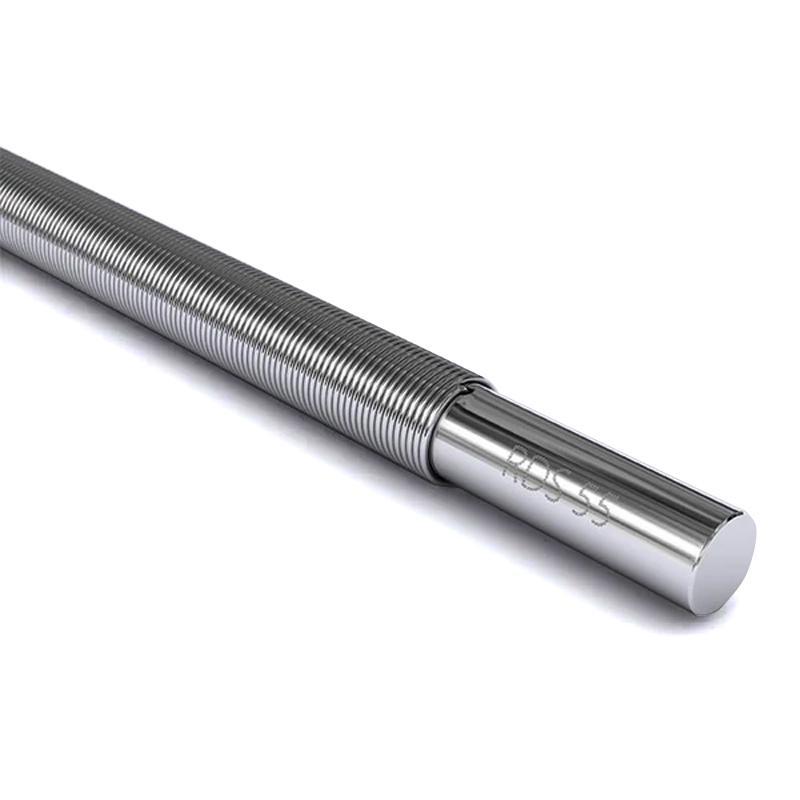

RDS 5 #L1135φ 10 wire-wound Applicator rod is a wire-wound Spreader Metering rod produced by the American RDS brand. RDS has more than 80 years of experience in R & D and production of coating rods. Its Mayer rod coating method is widely popular for its simple, accurate, uniform and economical characteristics. It is suitable for a variety of substrates. It provides a variety of specifications from No. 3 to No. 75, and supports customized services.
Features
1. Wire wound production process, wet film thickness of 11.4μm, to ensure uniform Spreader.
2. The diameter of the steel wire is φ 0.13mm, the diameter of the main rod is φ 10mm, the total length is 1135mm, the effective application width is 810mm, and the design is reasonable.
3. The mandrel is made of stainless steel 304, and the surface is chrome-plated to enhance durability.
4. Support customization, no minimum cost and installation cost, disbonding and re-winding to save costs.
5. Suitable for a variety of industries, including paint, window film, tape, etc., with high flexibility.
Principle
Wire-wound Applicator rod is based on the Mayer rod coating method, which forms a cavity on the rod surface through a wire wound structure to control the flow and thickness of the paint. The wet film thickness is determined by the diameter of the wire, and the paint is evenly distributed on the substrate through the cavity during Spreader, achieving accurate Measurement.
Applications
Paint, manufacturing window film, tape, release paper, photovoltaic film, wall covering material, special paper
Steps
1. Submit customization requirements through the NBchao Metering rod customization tool.
2. Obtain quotations and confirm specifications based on specific requirements.
3. Install the coating rod to the Spreader equipment, adjust the pressure or tension to control the Coating thickness.
4. Spreader operation to ensure uniform coverage.
Notice
• Coating rods can be disbonded and rewound to reduce waste.
• Pay attention to adjust the pressure or web tension when installing to control the Coating thickness.
• Regularly clean the surface of the rod to prevent blockage.
• Detailed specifications need to be provided when customizing.
