Overview

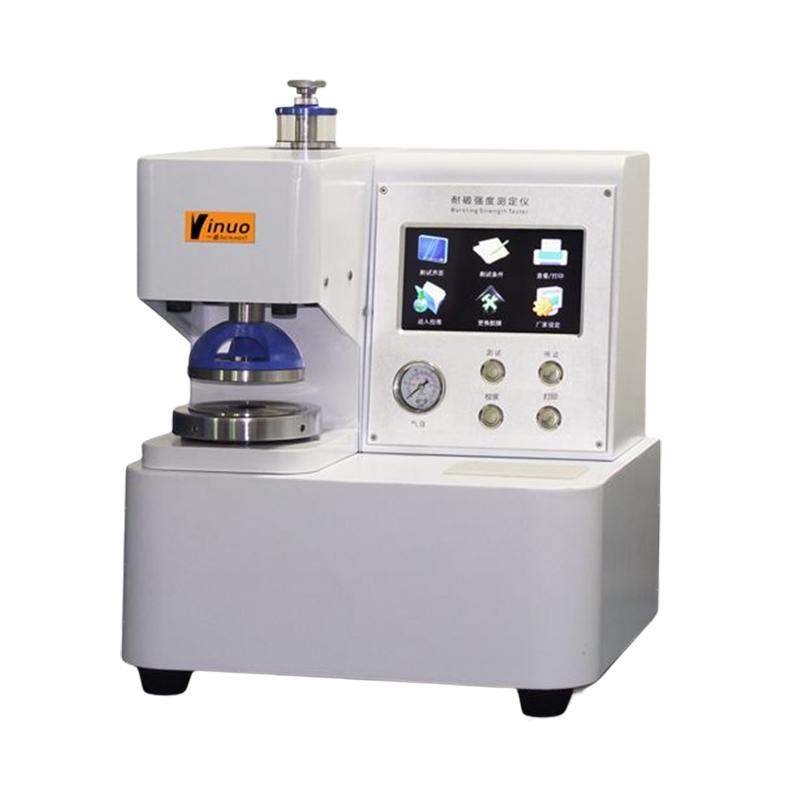

YN-NPY1600 microcomputer Burst Strength tester is a YINUO brand dedicated instrument for paper Breaking strength detection. It adopts pneumatic clamping method and film bursting sample technology to simulate the extension force of paper when it is slowly bursted by film resilience. It is mainly used to detect the Burst Strength of various types of paper, low Grammage Cardboard, aluminum foil and other sheet materials. It is suitable for paper mills, R & D institutions and Quality control departments.
Features
1. 7-Inch Touchscreen with Linear dispersion display, supports free switching between Chinese and English bilingual languages;
2. Pneumatic clamping of the sample, using the film bursting sample Test method;
3. The pressure plate is a round hole opening and located on the test axis to ensure stable and accurate data.
4. Automatically clamp the specimen to eliminate the tester's influence on the process.
5. Open structure, providing 360-degree full-view viewing of the entire test process.
6. Comes with calibrating system, with delayed pressurization and decompression delay control, automatic reset after the test is completed;
7. Built-in upper and lower limit protection devices, overload protection to prevent empty or over-range film explosion;
8. Double sealing oil circuit device to achieve high-strength and high voltage sealing, prevent oil leakage and improve life and Stability;
9. Powerful Linear dispersion analysis function, real-time display of test changes, instantaneous force value, strength value, clamping force, MAX Maximum, MIN Minimum, average value, breaking index and other data.
Principle
The principle of paper Burst Strength test is to place the sample on the resilience film, clamp the periphery of the sample tightly, and make it bulge freely with the film. When the hydraulic fluid is pumped at a steady rate to make the film bulge until the sample breaks, the maximum pressure applied is the sample Burst Strength.
Applications
Paper, Cardboard, Kraft Paper, Bobbin Paper, Paper Bag Paper, Mica Paper, Aluminum Foil
Standards
GB/T 454、QB/T 1057、ISO 2758、TAPPI T403
Steps
1. Place the sample on the resilience film;
2. Use a pneumatic clamping device to clamp the periphery of the sample tightly.
3. Start the instrument and pump the hydraulic fluid at a steady rate.
4. The film bulges until the sample ruptures.
5. Record the maximum pressure applied as Burst Strength.
6. After the test is completed, the instrument is automatically reset.
Notice
• Ensure that the Working Ambient Temperature is at (20 +/- 10) ° C and Humidity is below 85%;
• Check the film sheet and oil circuit system before use to avoid oil leakage or damage.
• Avoid empty hitting or exceeding the protective range during the test to prevent explosion film;
• Periodically calibrate the instrument and use an aluminum foil calibration shim for verification;
The clamping force is controlled within the range of 0 to 1200Kpa.
The test head can be positioned 360 ° freely to ensure the correct placement of the sample.
• Use dedicated wrenches and standard tools for operation and maintenance.
