Overview

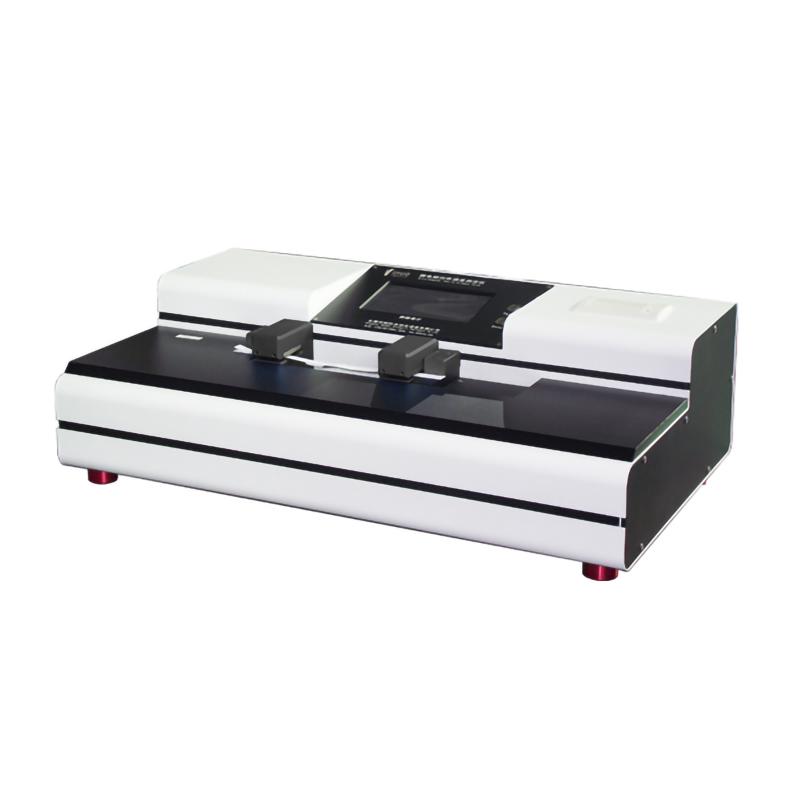

YN-WKZY300 microcomputer horizontal Tensile strength tester is a paper horizontal Tensile strength tester, using High Accuracy Sensor and pneumatic clamping specimen, automatic Measurement mode, in line with international standards ISO1924.2 and GB/T 12914 and other requirements, used to detect paper tension, Tensile Strength, elongation, fracture length, Tensile Energy Absorption, Tensile Index, Tensile Energy Absorption Index and Paper Wet Tensile Strength, suitable for paper mills, R & D institutions and Quality control departments.
Features
1. Microcomputer control technology, fully automatic pneumatic clamping of the sample, simple and convenient operation, one-click to complete the test;
2. Adopt 7.0in large-screen color touch LCD display, Chinese menu, real-time display of various data and tensile curve;
3. Adopt imported stepper motor control, use subdivision technology, accurate instrument positioning, fast speed Response, save test time and improve test efficiency;
4. High-speed ARM processor, Degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable;
5. Adopt 24-bit High Accuracy AD converter (resolution up to 1/10,000,000) to ensure the speed and accuracy of instrument force data collection;
6. Built-in air circulation heat sink to improve long-term operation of equipment failures.
7. Optional connection computer software, convenient Data analysis management, saving, printing and other functions;
8. Standard configuration host, 15mm fixture, standard Paper cutter, power cord, manual, certificate, warranty card, Optional accessories include other size fixtures, anti-tension special Sampler, professional software, communication cable.
Principle
Horizontal Tensile strength tester testing principle: Tensile Strength tester under constant speed stretching, the specified size of the sample stretched to fracture, measured its tensile strength, and record the ultimate tensile strength at fracture, breaking length and tensile index.
Applications
Paper, mica paper, paper, Electrical Insulating Paper, fiber paper, filter paper, other industrial paper, graphene, composite fiber material
Standards
GB/T 12914、GB/T453、ISO1924-2
Steps
1. Prepare the sample and use a standard Paper cutter to cut the specified size;
2. Place the specimen in a pneumatic fixture for automatic clamping.
3. Set test parameters, such as stretching speed, through Touchscreen.
4. Start the test, and the instrument automatically completes the stretching process.
5. Display data and tensile curves in real time, and automatically record the results after the test is completed;
6. Optional print output or connect to the computer through the communication interface for Data analysis.
Notice
Make sure the power supply is 220V and 50Hz to avoid voltage instability.
• The clamping pressure can be adjusted from 0.2 to 0.7 MPa, which needs to be adjusted according to the type of sample;
• Check the fixture width and clip spacing before testing to ensure that the sample requirements are met;
• Avoid long-term continuous operation and use the built-in heat sink to prevent overheating;
• When using the optional accessories, ensure correct connection and installation;
• Regularly calibrate the instrument to ensure that the Force Precision and Indication Error are within the allowable range.
