Overview

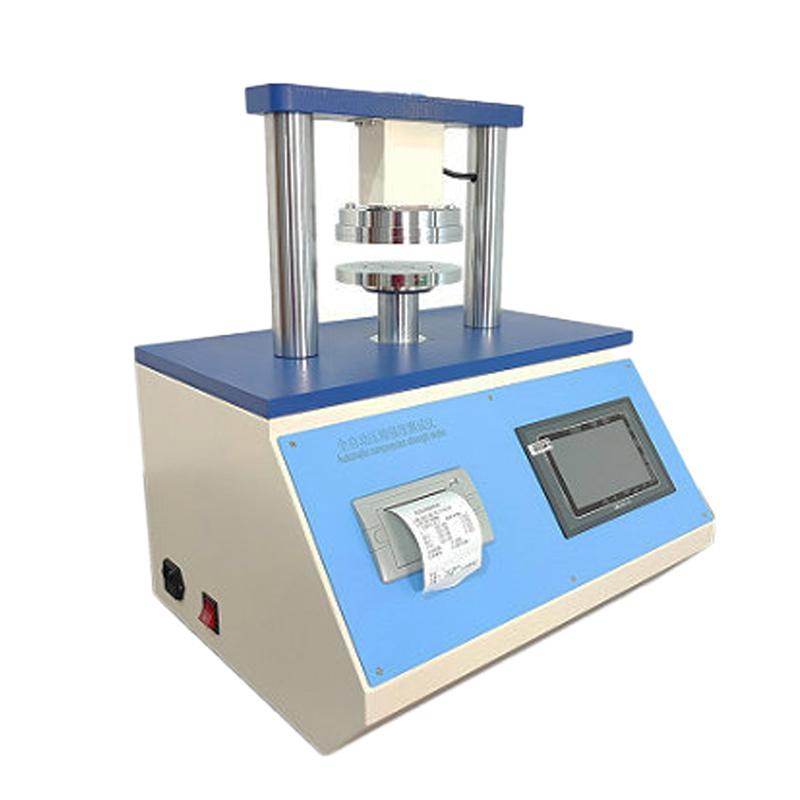

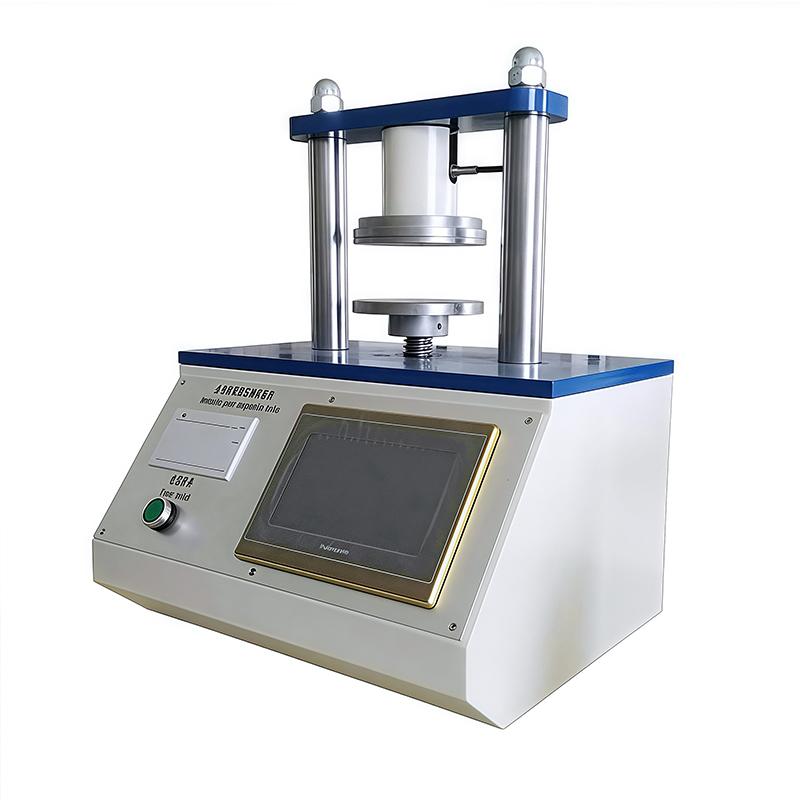

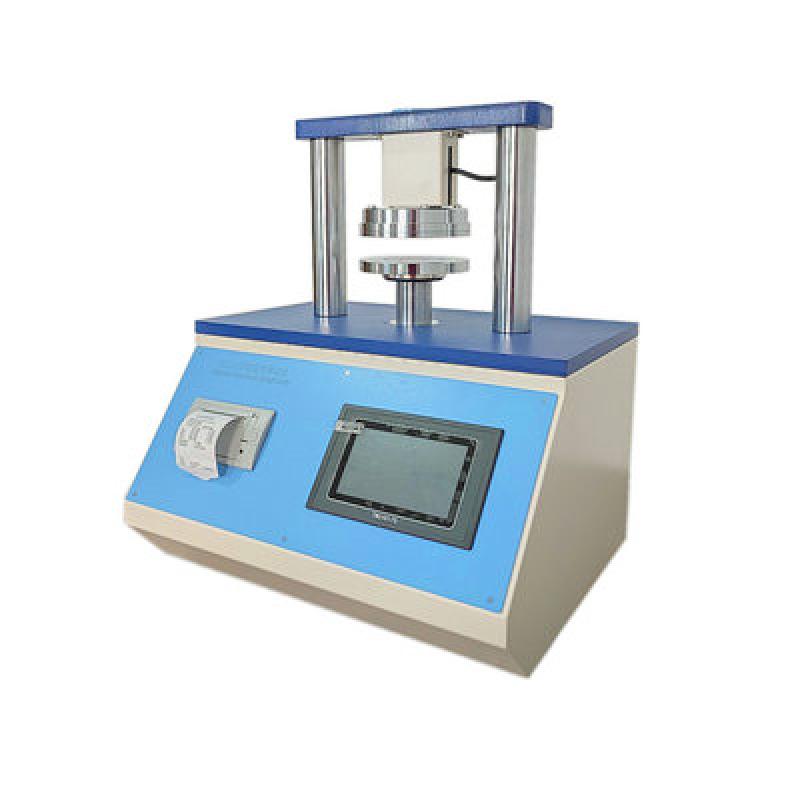

JINGWEN JW-101C1 paper compression tester is a modern mechatronics design testing equipment. It adopts 7-inch brand touch screen operation, with compact structure, beautiful appearance and convenient maintenance. The instrument is suitable for various tests such as Ring Crush Test, Corrugated Board Edge Crush Test, Flat Crush Test, adhesive strength and paper core Flat Crush Test for paper thickness 0.15~ 1.00mm. The pressure plate can be changed to detect the compressire strength and deformation of small containers such as paper cups, paper bowls and paper drums.
Features
1. Modern design concept of mechatronics, 7-inch brand touch screen operation, compact structure, beautiful and generous Appearance, convenient maintenance.
2. High Accuracy Weighing Sensor is adopted to ensure fast and accurate force data collection and high Measurement accuracy.
3. Equipped with high-speed brand PLC processor, Degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable, with powerful data processing function, can directly draw MAX Maximum, MIN Minimum, average and other statistical results, and can automatically reset, easy to operate, stable performance.
4. Pressure and time test Linear dispersion can be displayed, and pressure resistance can be displayed in real time.
5. Adopting a modular integrated thermal printer, the printing speed is fast and the paper change is convenient.
6. Can be connected to computer software or U disk, with real-time download test data, save, print and other functions (optional).
Principle
The instrument adopts the fixed design of the upper pressure plate, quickly collects the force value data through the High Accuracy Weighing Sensor, and combines with the high-speed PLC processor to realize automatic measurement and intelligent judgment. During the test process, the pressure and time Linear dispersion and pressure resistance values can be displayed in real time, and the data can be automatically processed and the statistical results can be output.
Applications
Paper Ring Crush Test, Corrugated Board Edge Crush Test, Corrugated Board Flat Crush Test, Corrugated Board adhesive strength test, Paper Core Flat Crush Test, Paper Cup compressire strength test, Paper bowl compressire strength test, Paper barrel compressire strength test, Paper tube compressire strength test, Small Encasement Box compressire strength test, Honeycomb board compressire strength test, Paper cup paper bowl paper barrel manufacturer, Quality control department
Standards
ISO 12192、ISO 3035、ISO 3037、ISO 7263、GB/T 2679.6、QB/T1048-98、GB/T 2679.8、GB/T 6546、GB/T 6548
Steps
1. Turn on the power supply and ensure that the voltage is AC220V +/- 10%.
2. Select test items and parameters through a 7-inch touchscreen.
3. Place the sample between the upper and lower pressure plates and adjust the position.
4. Start the test, and the instrument automatically pressurizes and collects data.
5. Real-time observation of pressure-time Linear dispersion and pressure resistance values.
6. After the test is completed, the instrument automatically outputs statistical results (MAX Maximum, MIN Minimum, Average).
7. Use a thermal printer to print the report or save the data through a USB stick/computer software.
Notice
• Ensure that the Ambient Temperature is in the range of 20 +/- 10 ° C and the relative humidity is below 85%.
• Regularly check the parallelism of the upper and lower pressure plates to ensure that it is less than or equal to 0.05mm.
• Verify force range and accuracy before use, Indication Error +/- 1%, variability < 1%.
• To avoid overload use, the force range is 1~ 3000N.
• The pressurization speed is controlled at 12.5 +/- 1.5mm/min.
• Pay attention to the operating specifications when replacing thermal printing paper.
• When connecting external devices (such as computers or USB sticks), ensure that the optional function is normal.
