Overview

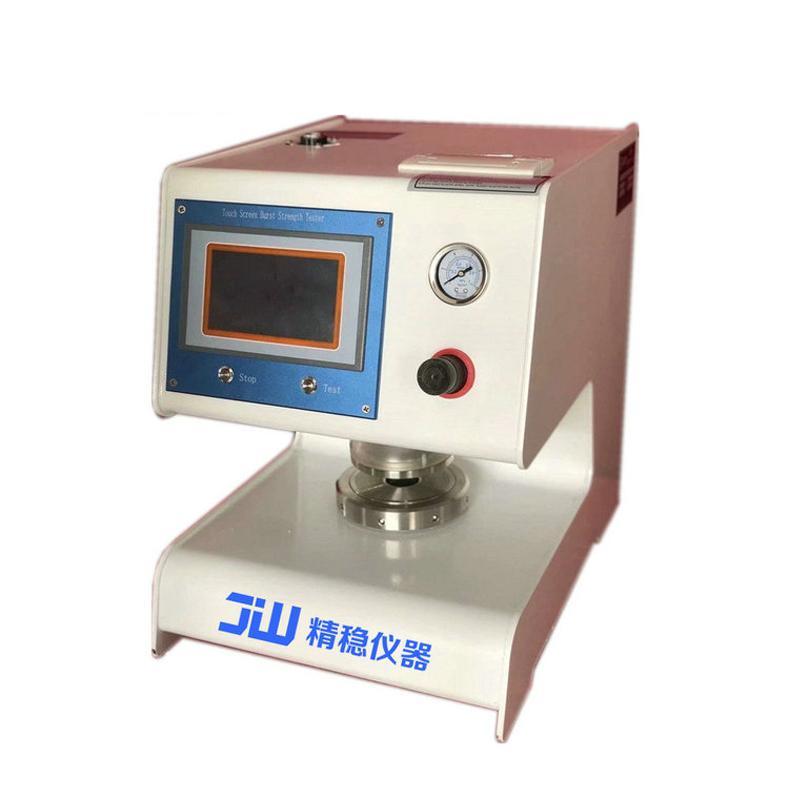

JW-102C1Z paper Burst Tester is a special instrument for all kinds of paper Burst Strength performance testing, suitable for all kinds of paper Burst Strength testing, but also can be used for silk, cotton and other non-paper sheet materials Burst Strength testing.
Features
1. Mechatronics Modern Design Concept, Compact Structure, Modular Structure, Beautiful Appearance, Easy Maintenance
2. Full scale alarm function, 3-speed limit alarm, pressure limit protection alarm, protect precision Sensor
3. High-speed ARM processor, Degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable
4. Adopt 24-bit High Accuracy AD converter (resolution up to 1/10,000,000) and High Accuracy, stable performance pressure sensor to ensure the speed and accuracy of instrument force data collection
5. Adopt modular integrated thermal printer, fast printing speed and convenient paper change
6. Multiple unit options, can be switched between kPa, kgf/cm2, lbf/in2
7. With power failure protection test data function
Principle
The instrument clamps the sample through the upper pressure plate, uses the hydraulic system to apply pressure at the oil feeding speed of 95 +/- 5mL/min until the sample breaks, collects and processes the data through the High Accuracy pressure sensor and AD converter, and automatically measures Burst Strength value.
Applications
Paper, silk, cotton and other non-paper sheet materials
Standards
ISO2758 "Paper - Burst Strength Determination", GB454 "Paper Burst Strength Determination Method"
Steps
1. Prepare the specimen and place it in the clamping device
2. Set test parameters through a 5.5-inch touch screen
3. Start the test, and the instrument automatically applies pressure and collects data
4. After the test is completed, the data is automatically displayed and optionally printed out
5. Output test results through thermal printer
Notice
• The working environment needs to maintain indoor temperature (20 +/- 10) ℃, relative humidity < 85%
• Ensure system sealing, pressure drop < 10% FS within 1 minute
• Power supply voltage is 220V +/- 10%, 50Hz
• Regularly Maintain Sensors and Hydraulic Systems to Ensure Measurement accuracy
• Pay attention to safety during operation and avoid excessive range use
