Overview

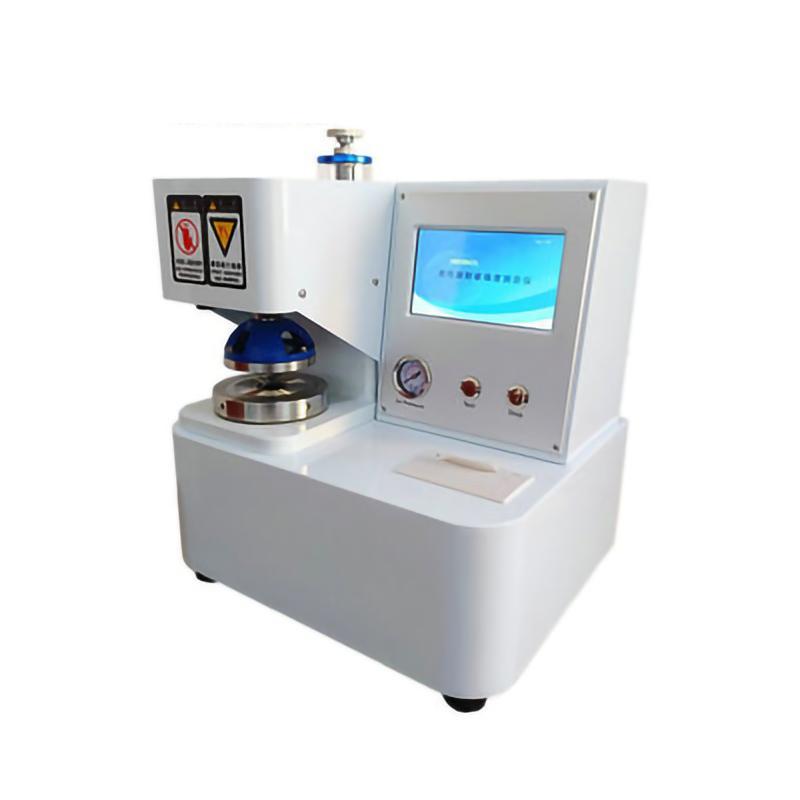

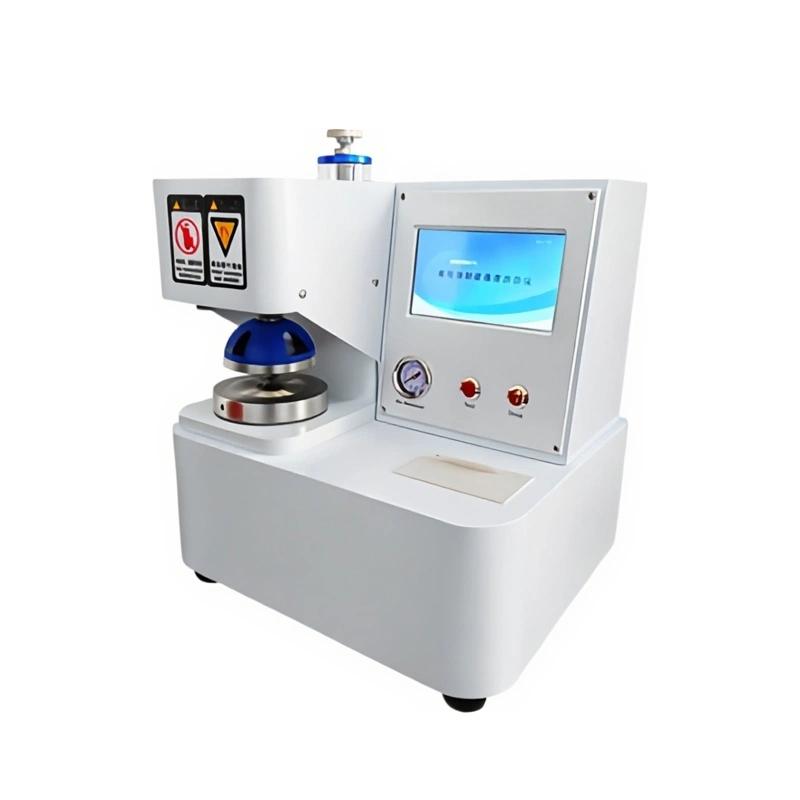

JW-102C2Z paper Burst Tester is a professional testing instrument under the JINGWEN brand, which is dedicated to the determination of various types of paper Burst Strength performance, and is also suitable for Burst Strength testing of non-paper sheet materials such as silk and cotton. The instrument is simple to operate, reliable in performance, and professional in technology. It is an indispensable equipment for R & D institutions, paper mills, Encasement industries, and Quality control departments.
Features
1.7-Inch Touchscreen display for easy operation
2. Measurement range, covering different pressure ranges of paper and Cardboard
3. Precision high ，≤ +/- 0.5%
4. Fine resolution, up to 0.1kpa
5. All-steel chain drive structure to prevent compression deviation, improve detection stability and life
6. High-strength high voltage oil circuit sealing system with double sealing knob and high voltage stainless steel YouTube
7. Comes with water vapor filtrating device to protect circuit stability
8. Anti-interference power block device to ensure test data accuracy and Reliability
9. Self-calibrating system and manual pressurization and decompression Control system
10. Test head material is 304 stainless steel, corrosion resistance
11. Modular integrated thermal printer for easy data output
12. Flexible unit conversion, supports Kg/cm2, kpa, lbf/in2
Principle
The instrument fixes the sample by clamping the upper and lower parts, applying pressure using an oil pressure system, and the film deforms under pressure until the sample breaks. Burst Strength measurement by High Accuracy Sensor. The drive structure adopts an all-steel chain to ensure uniform pressure and prevent deviation, thereby improving the Stability and accuracy of detection.
Applications
R & D institutions, paper mills, Encasement industries, Quality control departments
Standards
GB/T454、QB/T 1057、ISO 2758
Steps
1. Turn on the instrument power and start the system
2. Set test parameters through Touchscreen, such as unit selection
3. Place the sample between the upper and lower clamping sections to ensure fixation
4. Start the test, and the instrument automatically pressurizes until the sample ruptures
5. Read and record test data
6. Use Built-in Printer to output results
7. After the test is completed, decompress and clean
Notice
Make sure the sample is placed flat to avoid wrinkles affecting the test results
* Regularly check the sealing of the oil circuit system to prevent leakage
* Calibrate instruments before use to ensure data accuracy
* Avoid operating in a strong electromagnetic interference environment
The test head is made of stainless steel and requires regular cleaning and maintenance
* Pay attention to safety during operation to prevent high voltage injury
