Overview

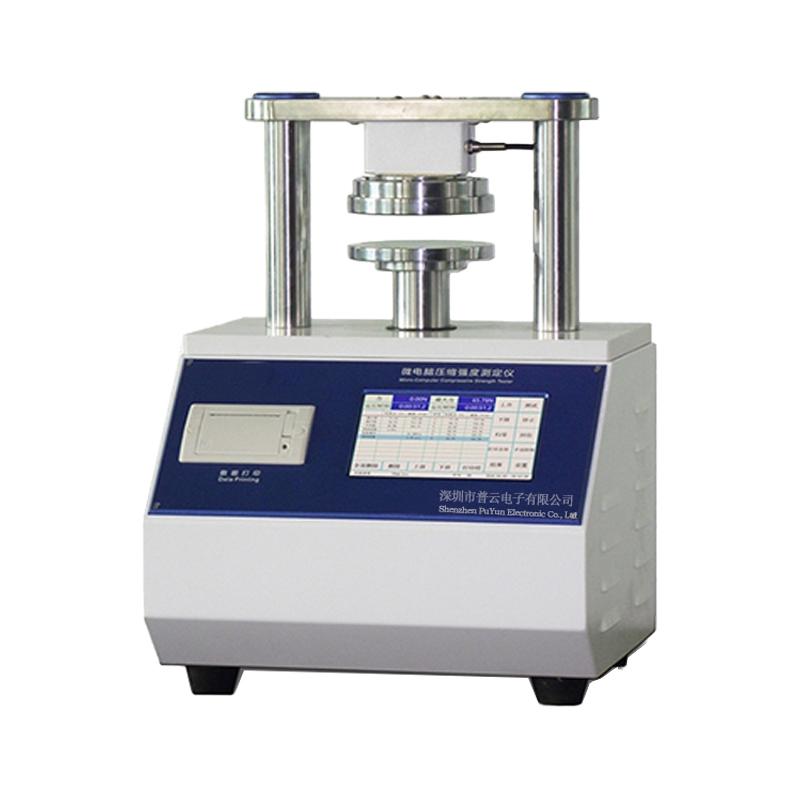

PY-H603 automatic Compressive Strength tester is a new type of High Accuracy smart tester independently developed by PUYUN according to relevant national standards. It is used to detect 6 testing items such as Ring Crush Test RCT of paper, Cardboard Edge Crush Test ECT, Corrugated Board adhesive strength PAT, Corrugated Board Flat Crush Test FCT, Corrugated Base Paper CMT and Corrugated Base Paper CCT.
Features
1. Adopt microcomputer automatic measurement and control, high accuracy, stable and reliable performance.
2. The main engine is shared with the control box, and the transmission part adopts a combined structure of worm gear deceleration and synchronous motor, which is simplified and clear as a whole.
3.7 inch touch screen display, Chinese menu Operating interface, real-time display of test values.
4. Automatic measurement of the sample, the test results automatically lock the maximum peak, displacement, MAX Maximum, MIN Minimum, average and other data.
5.99 group storage function, powerful storage function.
6. Multiple protection functions, including shutdown or power-off data memory, query, printing, Travel protection, overload protection, automatic reset, fault alarm prompt, Sensor nonlinear correction.
7. Three units can be switched arbitrarily: N, kgf, and lbf.
8. Using Japanese imported thermal printing movement, high speed, low noise, no color ribbon.
9. Set the real-time clock and display it on the test results when printing.
10. The operation display interface adopts high-tech LCD color touch screen display module, and the digital display mode and Linear dispersion mode can be switched at any time.
11. The surface of the machine structure is treated with advanced baking paint, which is beautiful and durable.
Principle
The instrument uses microcomputer touch screen control technology to automatically measure and control Compressive Strength, detects force values through Sensor, displays test data in real time, and automatically locks and analyzes results.
Applications
Paper Ring Crush Test, Cardboard Edge Crush Test, Corrugated Board adhesive strength test, Corrugated Board Flat Crush Test, Corrugated Base Paper CMT Test, Corrugated Base Paper CCT Test
Standards
GB/T 2679.8、GB/T 6546、GB/T 6548、GB/T 2679.6、ISO12192-2011
Steps
1. Select the corresponding Accessories according to the test item.
2. Use the touchscreen interface to set parameters and units.
3. Place the sample and start the test.
4. The instrument automatically measures and displays real-time data.
5. After the test is completed, the results are automatically locked and can be queried, printed, or stored.
Notice
• Make sure the data is saved when the instrument is turned off or powered off.
• Check that Travel protection and overload protection functions are normal before operation.
• When using a thermal printer, there is no need to change the color ribbon or add inks.
• Regularly calibrate Sensors to standard to maintain accuracy.
• Avoid electromagnetic interference and ensure the stability of the circuit system.
