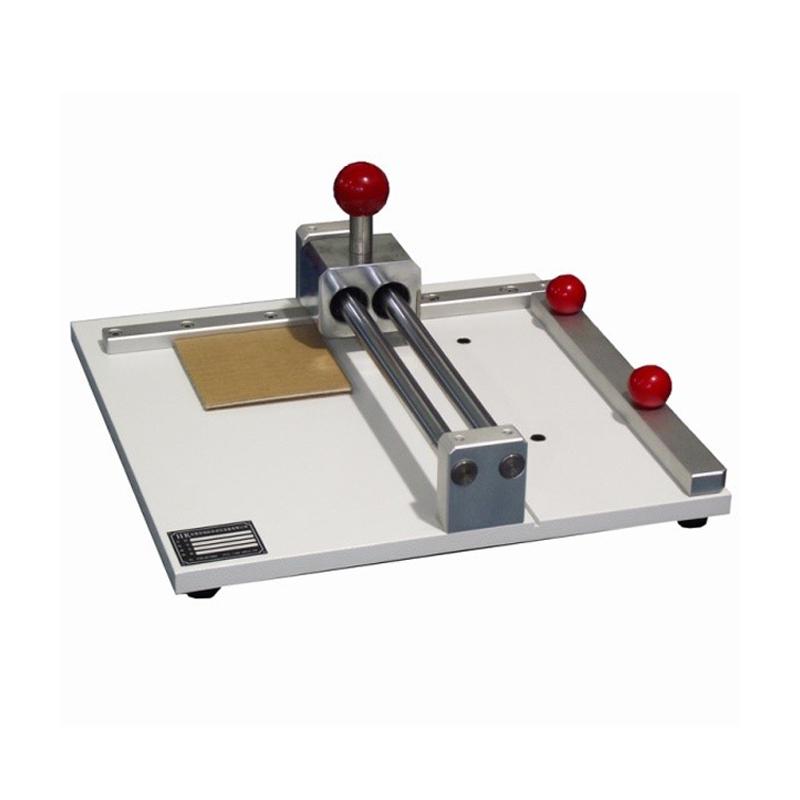

PY-H603A Special sampling device for gluing Sampler Corrugated Board

Name: PY-H603A Special sampling device for gluing Sampler Corrugated Board
Brand: PuYun
SKU: NB033489
Price: 388.0 USD
Availability: InStock

$ 388.00Ex works

Using Taiwan SDI blade and Japan SK4 high carbon steel material, sharp and durable; sampling accuracy +/- 0.5mm, thickness range ≤ 10mm; novel design, flexible sampling standardization, less burrs.

Model

PY-H603A

Get Quote

Category : Sample Cutter

Brand : PuYun

SKU : NB033489

Service :The delivery and service By NBCLab.Com

Overview

PY-H603A Cardboard Cube gluing Sampler is a special sampling instrument required for Corrugated Board Edge Crush Test and adhesive strength test, which can quickly and accurately cut the specified size of the sample.

Features

1. Standardization of the sample, high accuracy, less hair, high Precision 2. Taiwan SDI brand blade, Japan imported SK4 high carbon steel, sharp and durable 3. Novel design, improved redundant parts, more flexible sampling, standardization

Principle

The Sampler can quickly and accurately cut a specified size Corrugated Board specimen with a special blade for Edge Crushing Test and adhesive strength test.

Standards

GB/T 2679.8-1995 Determination of Paper and Cardboard Ring Crush Test, GB/T 6546-1998 Determination of Corrugated Board Edge Crush Test, GB/T 6548-1998 Determination of Corrugated Board adhesive strength, GB/T 2679.6-1996 Determination of Corrugated Base Paper Flat Crush Test

Notice

• The sampling thickness range does not exceed 10mm • The sampling error is controlled within the range of +/- 0.5mm • Check the blade sharpness before use • Pay attention to safety protection during operation

Sampling Size
ECT(100*25)mm；PAT(80*25)mm
Sampling thickness
≤10mm
Sampling error
±0.5mm
Dimension
350*350*90mm
weight
15kg
