Overview

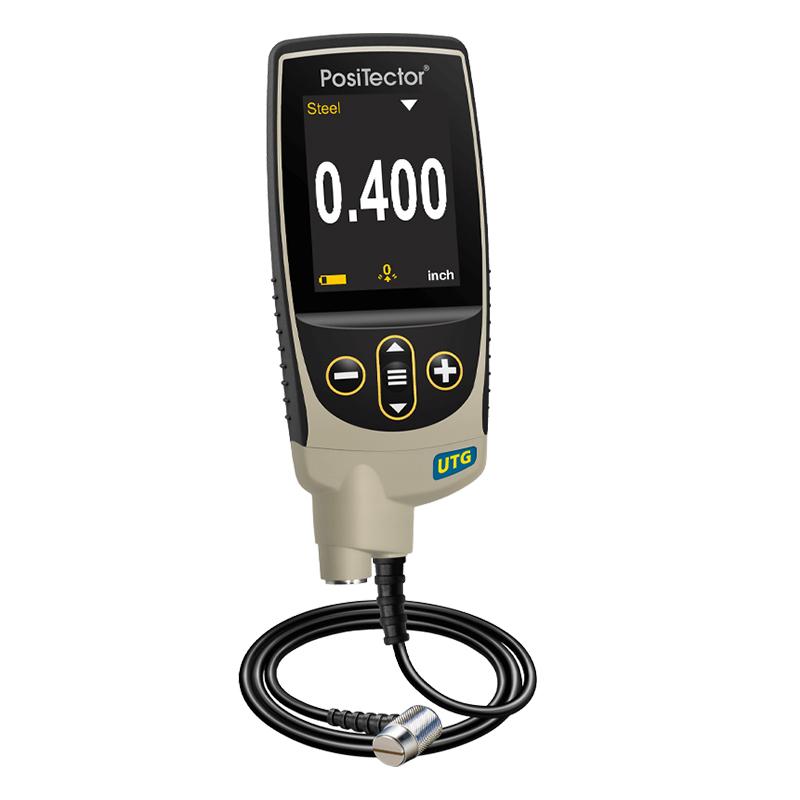

The American Defelsko PosiTector UTG C1 ultrasonic wall thickness meter is an instrument dedicated to the measurement of material wall thickness, suitable for steel, plastic and other materials. Especially suitable for tanks, pipe walls and other structures that can only be measured on one side and are affected by corrosion or erosion. The instrument is the standard model of the PosiTector UTG C series, with 250 measurement reading storage space, and the measurement thickness range is 1~ 125mm.
Features
1. Simple: large and easy-to-read graphic LCD screen, easy-to-operate one-handed menu navigation, pre-set material selection, Smart Couple ™ function, flashing indication, reset function

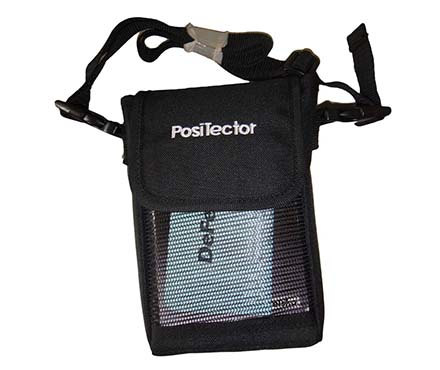

2. Durable: weathering resistance (anti-solvent, acid, oil, water and dust), Impact-resistant lenses, wear-resistant probes, shock-absorbing protective holster, host and Probe warranty for two years
3. Accuracy: Precision Ultrasonic Sensor provides fast and accurate readings, calibrated certificate showing Traceability to NIST, compliance with national and international standards including ASTM E797, built-in temperature compensation
4. Multi-purpose: Positector host is compatible with all PosiTector 6000, 200, DPM, UTG, RTR and SPG Probe, single point or two point calibrated, inch/mm unit conversion, multi-language optional, inverted display, lithium battery or rechargeable battery
5. Powerful: measurement rate up to 20 readings per second, statistical functions (average, Standard Deviation, minimum/maximum thickness and number of readings), HiLo alarm, storage of measurement date and timestamp, USB port connection to PC, software to view analysis and report data
Principle
Ultrasonic technology is used for measurement, and ultrasonic signals are transmitted and received through the 5MHz dual-element Sensor to calculate the material wall thickness. It has the function of automatic V-way compensation for thin materials to ensure measurement accuracy.
Applications
Measurement of structures that can only be measured on one side, tanks, pipe walls, etc. affected by corrosion or erosion
