Overview

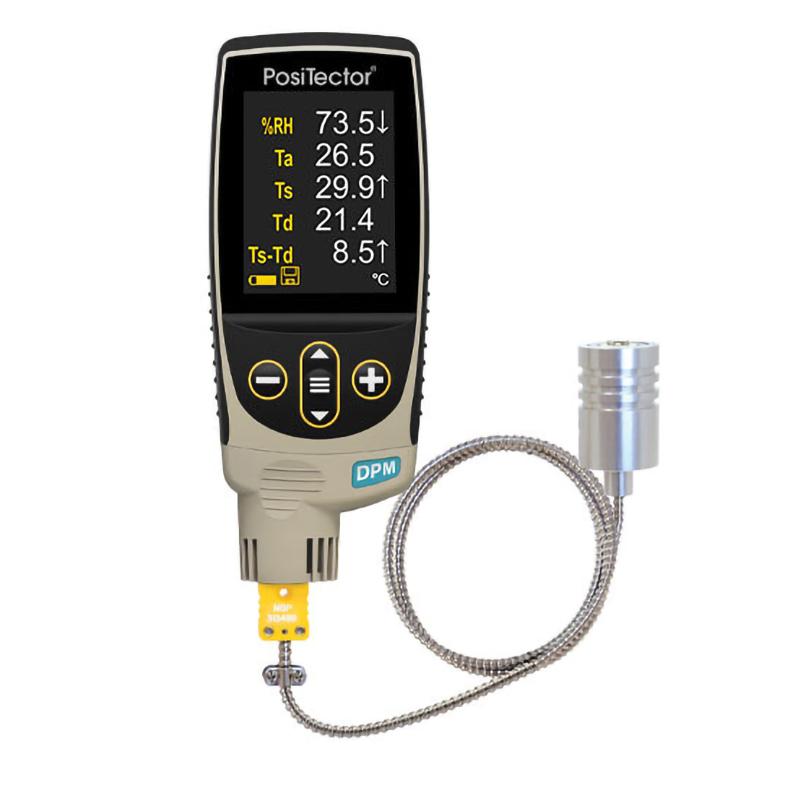

The Defelsko DPMS1 Portable Temperature Humidity Meter is a Probe split structure temperature Humidity measurement instrument with the function of measuring relative humidity, air temperature, surface temperature, dewpoint temperature and surface and dewpoint temperature difference. It is a High Accuracy Temperature Humidity Meter imported from the United States. The DPMS1 Portable Temperature Humidity Meter is a standard model with 2500 measurement readings and can perform measurement prompts according to environmental conditions. The measurement resolution is 0.1 ° C.
Features
1) Large screen, high contrast ratio LCD screen
2) The host is versatile and compatible with Miscellaneous PosiTector Series Probes
3) Has 2500 storage memory
4) USB interface can be connected to a PC or provide continuous power supply
5) With anti-solvent, acid, oil, water, dust and other characteristics, sturdy and durable, suitable for indoor/outdoor use
6) Rubber protective cover for shock absorption belt belt clip
Sensors with High Sensitivity Ensure Accuracy, High Repeatability, High Reliability and Long-term Stability
8) Sensitive trend changes are just arrows to determine whether it is beginning to rise, fall, or stabilize
9) Traceability to NIST with calibrated certificate
10) Compliant with ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32
Principle

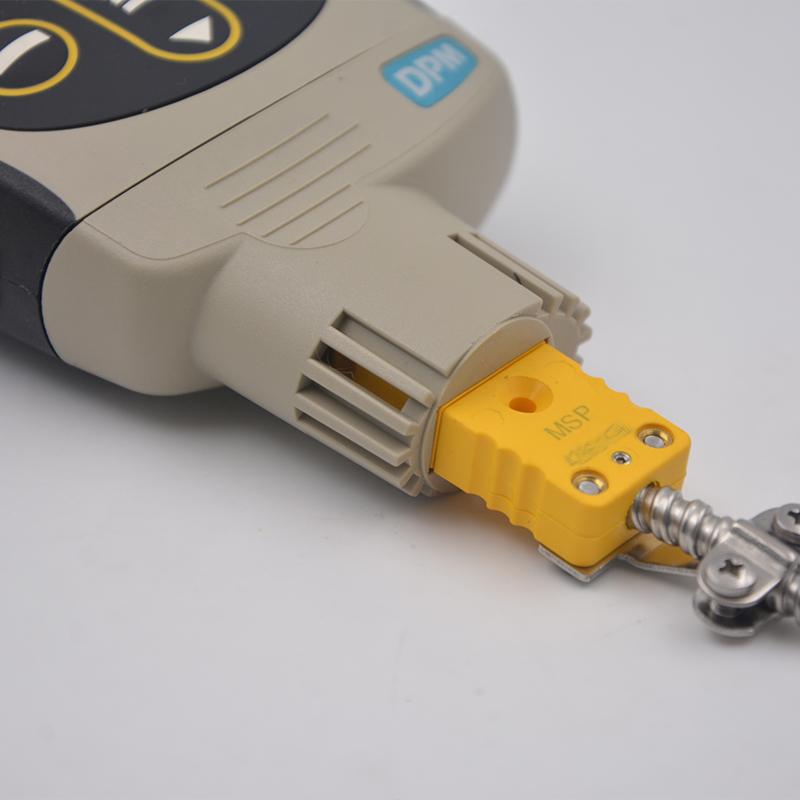

The instrument measures environment parameters through the built-in Air Temperature/Humidity Sensor and K-type connector, using the High Sensitivity Sensor to ensure accurate, High Repeatability, High Reliability and Long-term Stability, capable of calculating dewpoint temperature and surface and dewpoint temperature difference.
Applications
Indoor/outdoor use, on-site hard-to-reach surfaces, unmonitored environments
Standards
ISO 8502-4、BS 7079-B4、ASTM D3276、IMO PSPC、SSPC-PA7、US Navy NSI 009-32
Steps

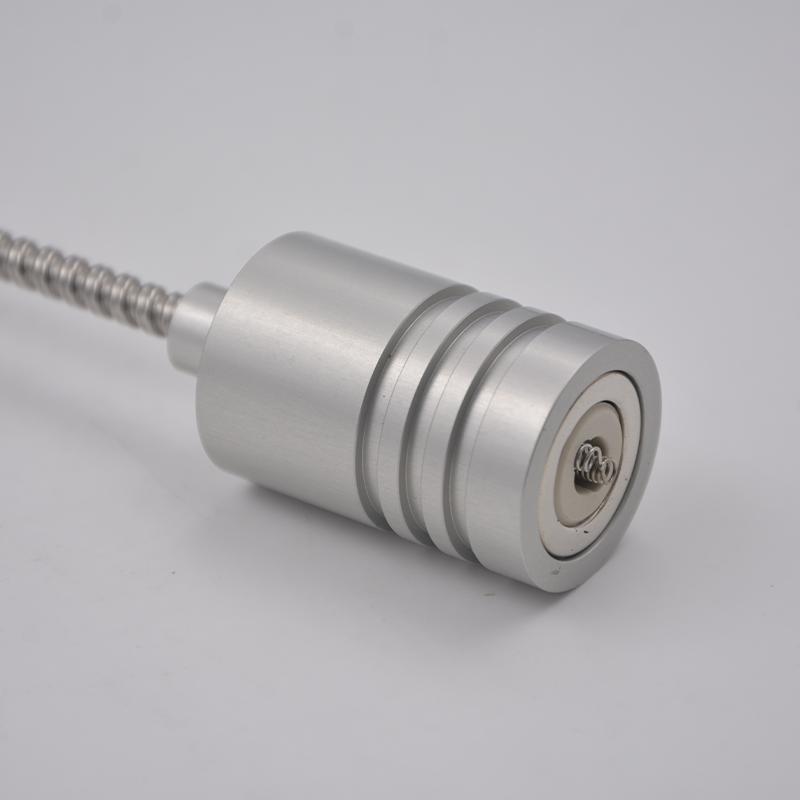

Connect the magnetic surface temperature sensor to ensure that the locking device prevents accidental disengagement
2) Select Handheld surface temperature Probe, self-adhesive surface temperature Probe or liquid temperature sensor as needed
3) Connect to PC via USB interface or provide continuous power supply

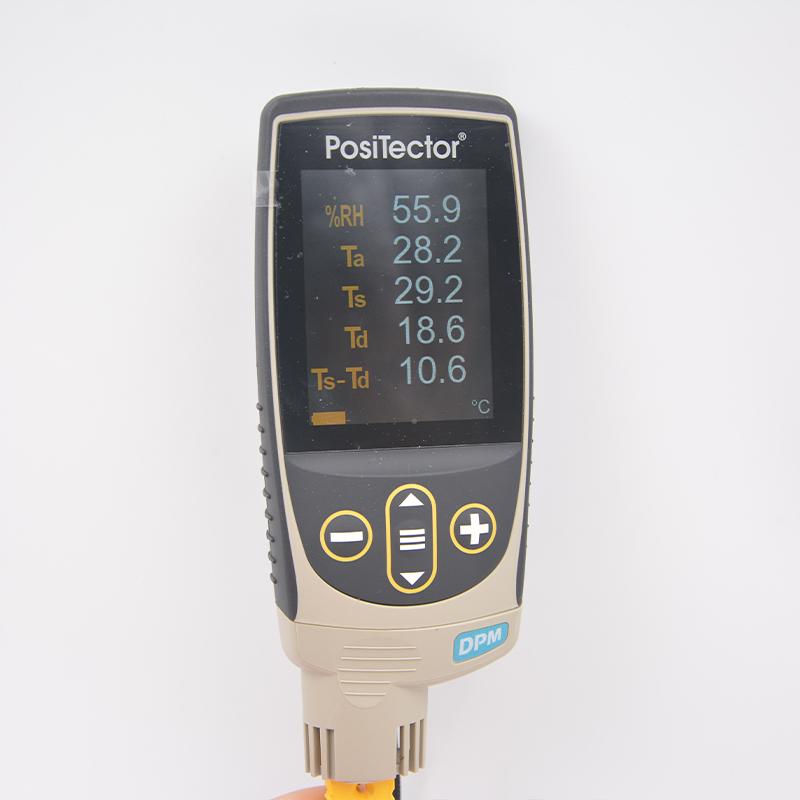

4) Use a large LCD screen to read measurement data
Data storage function to record up to 2500 readings
Notice
• Pay attention to the locking device when using the magnetic surface temperature sensor to prevent accidental disengagement when unmanned
Probe type to adapt to different measurement environments
• Periodically calibrated for Measurement accuracy, Traceability to NIST
• Pay attention to the protective characteristics of the instrument and avoid using it beyond the specifications under extreme conditions
