Overview
The American Defelsko DPMS3 temperature Humidity measurement instrument is the PosiTctor DPM series advanced split temperature Humidity measurement instrument, a dedicated advanced measurement instrument for the measurement of environment temperature Humidity and surface temperature. The instrument comes standard with a calibrate certificate, and each measurement instrument has been strictly calibrated to ensure the accuracy and Reliability of the measurement. Optional Miscellaneous K Probe for temperature Humidity measurement under different conditions.
Features
1. High contrast ratio color LCD
2. Can display wet-bulb temperature (not stored in memory)
3. Users can customize the upper and lower limits for all parameters, and alarm prompts can be issued if the limit is exceeded
4. It can store 20,000 readings, up to 1000 packets, and the stored readings (1 set = RH, Ta, Ts, Td, Ts-Td) can be browsed and downloaded
5. Linear dispersion of real-time graphics, picture prompts, batch annotations
6. Batch comments - create meaningful batch names and type them directly using the on-screen QWERTY keyboard
7. WiFi technology connection, can be synchronized with PosiSoft.net, update software, connect mobile devices, and expand functions
8. Bluetooth wireless technology transmission to PC or mobile device
Principle

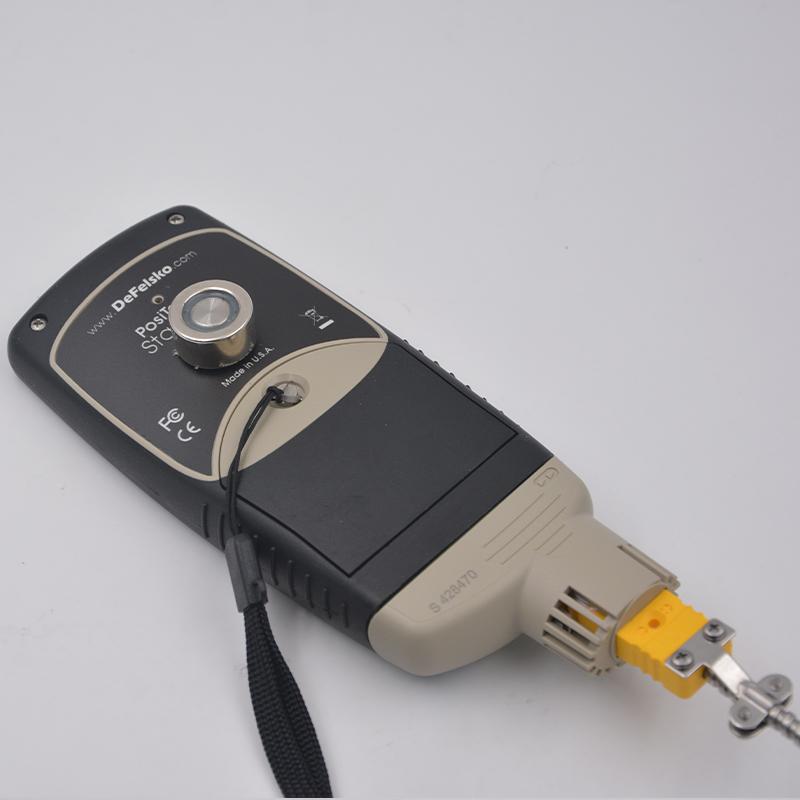

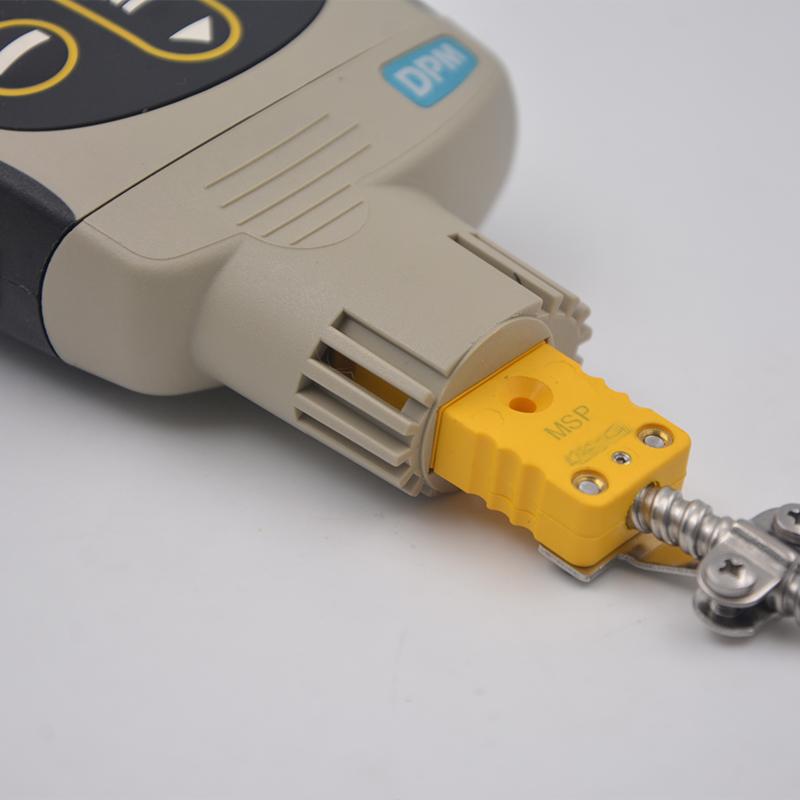

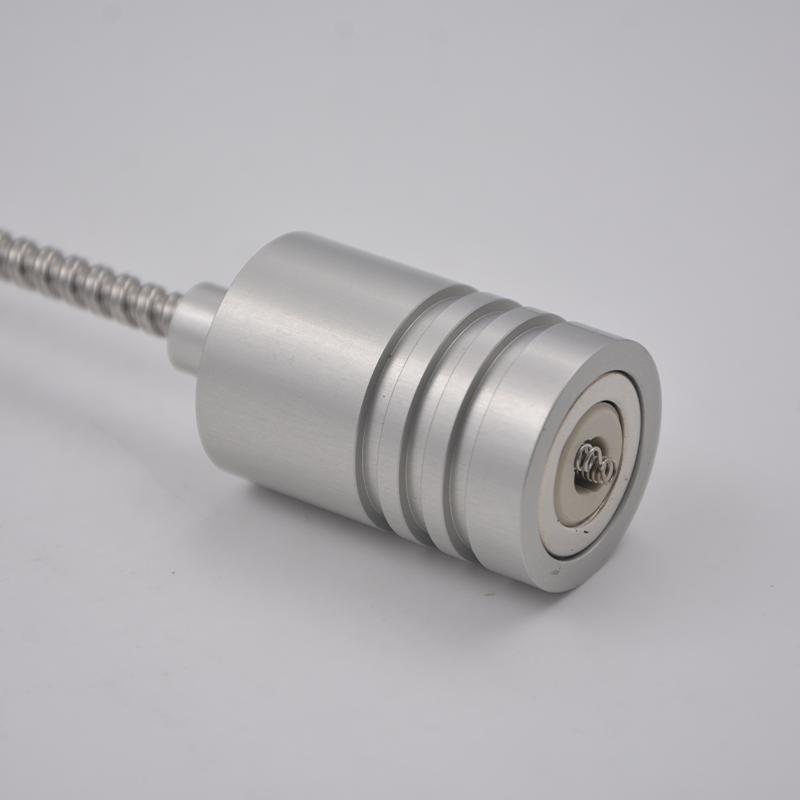

The DPMS3 Humidity measurement instrument makes measurements via the built-in Air Temperature/Humidity Sensor and K-Type connector. It features a magnetic surface temperature sensor with armored cable and locking device to prevent accidental disengagement from the instrument when unmanned, and includes a magnetic tag attached to the steel structure of the instrument body, while it can be easily converted into Miscellaneous optional K-Type Probe to suit different Measurement conditions.
Applications
Environment Humidity measurement, surface temperature measurement
Standards
ISO 8502-4、BS 7079-B4、ASTM D3276、IMO PSPC、SSPC-PA7、US Navy NSI 009-32
Steps
1. Select and connect the appropriate K Probe
2. Turn on the instrument power
3. Set parameters upper and lower limits and units
4. Take measurements and view real-time data
5. Use the batch annotation function to record batch information
6. Transfer data via WiFi or Bluetooth connection device
7. Browse and download stored readings
Notice
• Make sure the instrument is calibrated before use
• Pay attention to the locking device of the magnetic surface temperature sensor when unmanned to prevent accidental disengagement
• Select the appropriate K Probe according to the Measurement conditions
• Regularly check the battery power to ensure normal use
• Follow relevant standards to ensure measurement accuracy
