INESA WRX-2S Full Set of 2 Microscopic Thermal Analyzers TOA Analysis PWM Temperature Control Touchscreen

Name: INESA WRX-2S Full Set of 2 Microscopic Thermal Analyzers TOA Analysis PWM Temperature Control Touchscreen
Brand: INESA
SKU: NB033669
Price: 3432.0 USD
Availability: InStock

$ 3432.00Ex works

Using PWM pulse program temperature control technology, Temperature resolution up to 0.1 ℃, support 0.1~ 20 ℃/min continuous adjustable heating rate, suitable for micro sample melting point determination and thermodynamic research, data storage capacity 3000 groups.

Model

WRX-2S full set of 2

Get Quote

Category : Melting Point Apparatus

Brand : INESA

SKU : NB033669

Service :The delivery and service By NBCLab.Com

Overview

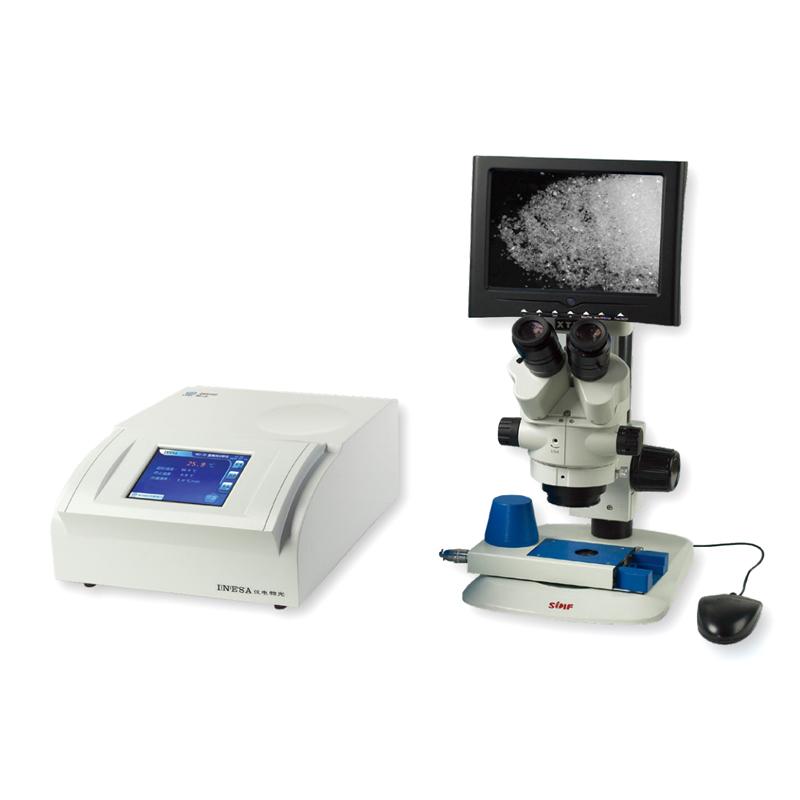

The INESA WRX-2S Full 2 Microscopic Thermal Analyzer is an instrument suitable for studying the thermal characteristics of the measured substance under the microscope. It uses PWM pulse program temperature control and color LCD Touchscreen display technology. It has 3000 test data storage functions and is equipped with USB and RS232 interfaces for data transmission and printing.

Features

1. Adopt PWM pulse program temperature control technology 2. Equipped with 7-inch color LCD Touchscreen display 3. With 3000 sets of test data storage function 4. Provide USB interface to transfer data to PC 5. Equipped with RS232 interface to connect to a micro printer 6. Temperature resolution up to 0.1 ℃ 7. The heating rate can be selected continuously between 0.1 and 20 ° C/min 8. Support multiple Microscope configuration options

Principle

The instrument uses the hot table method for measurement, and the temperature change is precisely controlled by the PWM pulse program temperature control technology. The thermal characteristics of the measured substance are observed under the Microscope, and the TOA analysis (Thermal Optical inspection analysis) is realized.

Applications

Synthetic fibers, chemistry, biology, mineralogy, criminology

Steps

1. Prepare the sample and place it on the slide Step 2 Place the slide in the thermal lens 3. Set temperature parameters and heating rate through Touchscreen Step 4 Start the heating program 5. Microscope to observe the change of thermal characteristics of the sample 6. Record test data 7. Data can be transferred through the USB interface or the output result can be connected to the printer

Notice

• Slide thickness should be within the range of 0.8~ 1.2mm • 220V +/- 22V 50Hz +/- 1Hz power requirements • Net weight 9kg (without Microscope) • Printer is an optional device The magnification depends on the type of Microscope configured

Measurement Range
Room temperature~ 300℃
Measuring method
Hot stage method, visual
minimum indication
0.1℃
heating rate
0.1 ℃/min - 20℃/min optional continuously
Indication Error
≤200℃±0.5℃ ＞200℃±0.7℃
Indication Repeatability
Heating rate is 1.0 ° C/min, 0.3 ° C
Linear heating rate error
±10%
data storage
3000 sets
Printer model
RD - TH32 - SC (optional)
Display mode
7-Inch Color LCD Touchscreen
communication interface
RS232/USB
Slide thickness
0.8mm~1.2mm
Coverslip thickness
0.17mm
magnification
≥ 40 * (depending on the configured Microscope)
power supply
220V±22V，50 Hz±1Hz
Hot mirror table Size
195*28*85mm
Digital display unit Size
290*170*360mm
Net weight of instrument
9Kg (without Microscope)
Optional Microscope - XSP-8CA Trinocular Bio-Microscope (Set 1)
Electronic eyepiece with 1.30 million pixels
Selectable Microscope - XTZ-TV Video Continuous Vagiploidy Microscope (Set 2)
With display screen, continuous zoom
Optional Microscope-59XC Trinocular Polarizing Microscope (Set 3)
Electronic eyepiece with 1.30 million pixels for polarized viewing
Optional Microscope -69XCL Transmission reflection Polarizing Microscope (Set 4)
Electronic eyepiece with 1.30 million pixels for polarized viewing

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
