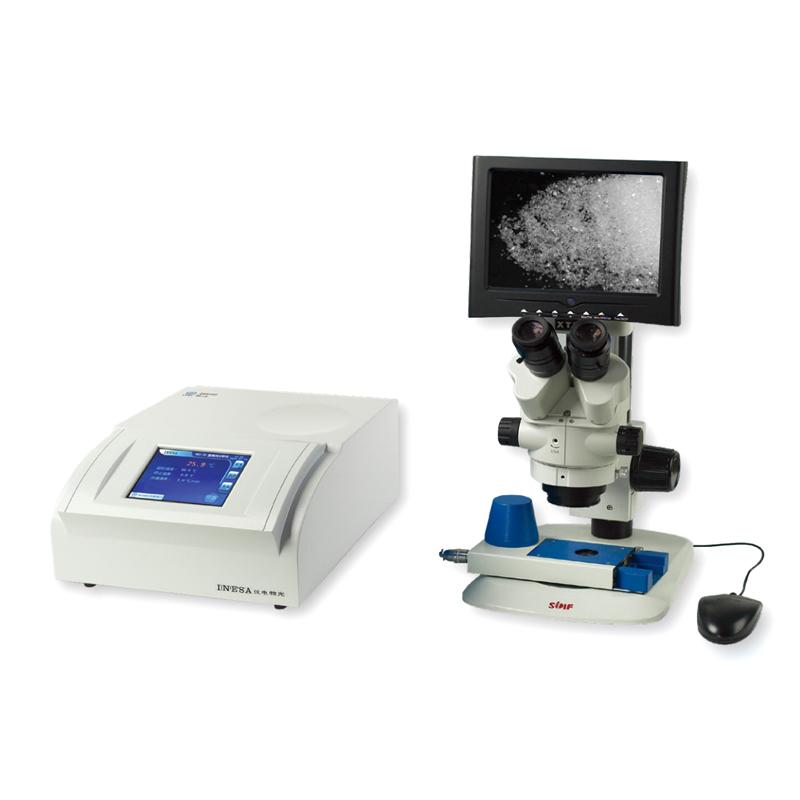

INESA WRX-2S Full Set of 3 Microscopic Thermal Analyzers TOA Analysis PWM Temperature Control Touchscreen

Name: INESA WRX-2S Full Set of 3 Microscopic Thermal Analyzers TOA Analysis PWM Temperature Control Touchscreen
Brand: INESA
SKU: NB033670
Price: 4543.0 USD
Availability: InStock

$ 4543.00Ex works

Temperature resolution is up to 0.1 ℃, heating rate is adjustable from 0.1 ℃ to 20 ℃/min, hot stage method and visual measurement are supported, which is suitable for the study of thermal characteristics of trace samples.

Model

WRX-2S full set of 3

Get Quote

Category : Melting Point Apparatus

Brand : INESA

SKU : NB033670

Service :The delivery and service By NBCLab.Com

Overview

The INESA WRX-2S complete set of 3 microscopic Thermal Analyzers is suitable for the study and determination of the thermal properties of the measured substances under the microscope, called TOA analysis. It can be used as the melting point determination of trace samples, the melting point determination of slice samples, and the thermodynamic study of bioengineering. It is widely used in synthetic fibers, chemical industry, biology, mineralogy, criminology and other fields.

Features

1. Adopt PWM pulse program temperature control and color LCD Touchscreen display technology 2. With 3000 sets of test data storage function 3. Equipped with USB interface to transfer data to PC 4. RS232 interface can be connected to a micro printer (optional) for printing 5. Temperature range: RT +~ 300 ℃, Temperature resolution: 0.1 ℃ 6. Heating rate: optional continuously between 0.1 and 20 ° C/min 7. Provide a variety of microscope configuration options: XSP-8CA trinocular biological Microscope, XTZ-TV video continuous aneuploidy Microscope, 59XC trinocular polarized Microscope, 69XCL reflection polarized Microscope

Principle

The instrument adopts hot table method and visual Measuring method, and the PWM pulse program temperature control technology implementation precise temperature control, and observes the change of thermal characteristics of the sample under Microscope.

Applications

Synthetic fibers, chemistry, biology, mineralogy, criminology

Measurement Range
Room temperature~ 300℃
Measuring method
Hot stage method, visual
minimum indication
0.1℃
heating rate
0.1 ℃/min - 20℃/min optional continuously
Indication Error
≤200℃±0.5℃ ＞200℃±0.7℃
Indication Repeatability
Heating rate is 1.0 ° C/min, 0.3 ° C
Linear heating rate error
±10%
data storage
3000 sets
Printer model
RD - TH32 - SC (optional)
Display mode
7-Inch Color LCD Touchscreen
communication interface
RS232/USB
Slide thickness
0.8mm~1.2mm
Coverslip thickness
0.17mm
magnification
≥ 40 * (depending on the configured Microscope)
power supply
220V±22V，50 Hz±1Hz
Hot mirror table Size
195*28*85mm
Digital display unit Size
290*170*360mm
Net weight of instrument
9Kg (without Microscope)
Optional Microscope - XSP-8CA Trinocular Bio-Microscope (Set 1)
Electronic eyepiece with 1.30 million pixels
Selectable Microscope - XTZ-TV Video Continuous Vagiploidy Microscope (Set 2)
With display screen, continuous zoom
Optional Microscope-59XC Trinocular Polarizing Microscope (Set 3)
Electronic eyepiece with 1.30 million pixels for polarized viewing
Optional Microscope -69XCL Transmission reflection Polarizing Microscope (Set 4)
Electronic eyepiece with 1.30 million pixels for polarized viewing
