RDS 5 #3/8 "Applicator Rod wire-wound formed Spreader 11.4 μm film thickness

Name: RDS 5 #3/8 "Applicator Rod wire-wound formed Spreader 11.4 μm film thickness
Brand: RDS
SKU: NB033698
Price: 165.0 USD
Availability: PreOrder

$ 165.00Ex works

Film thickness of 11.4 μm, accuracy of 0.1 μm, formed process and wear resistant stainless steel for thin film applications, ensuring Spreader uniformity and durability.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB033698

Service :The delivery and service By NBCLab.Com

Overview

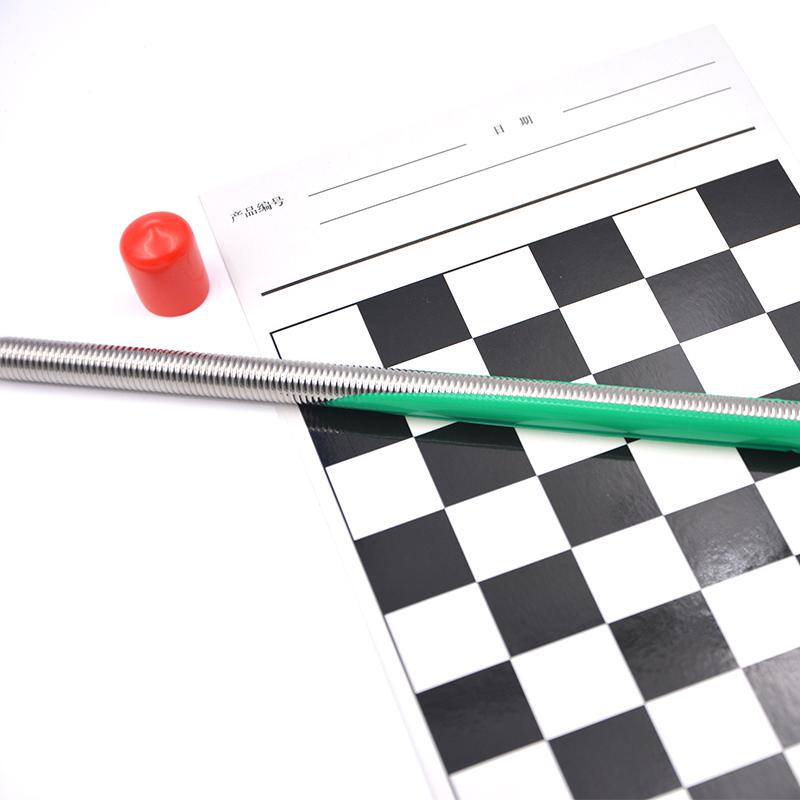

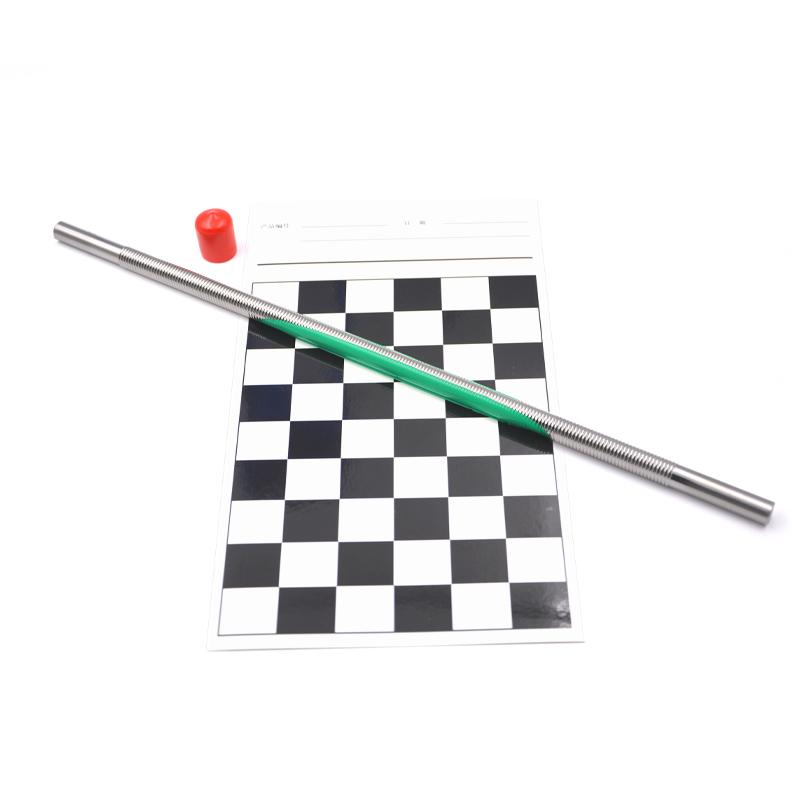

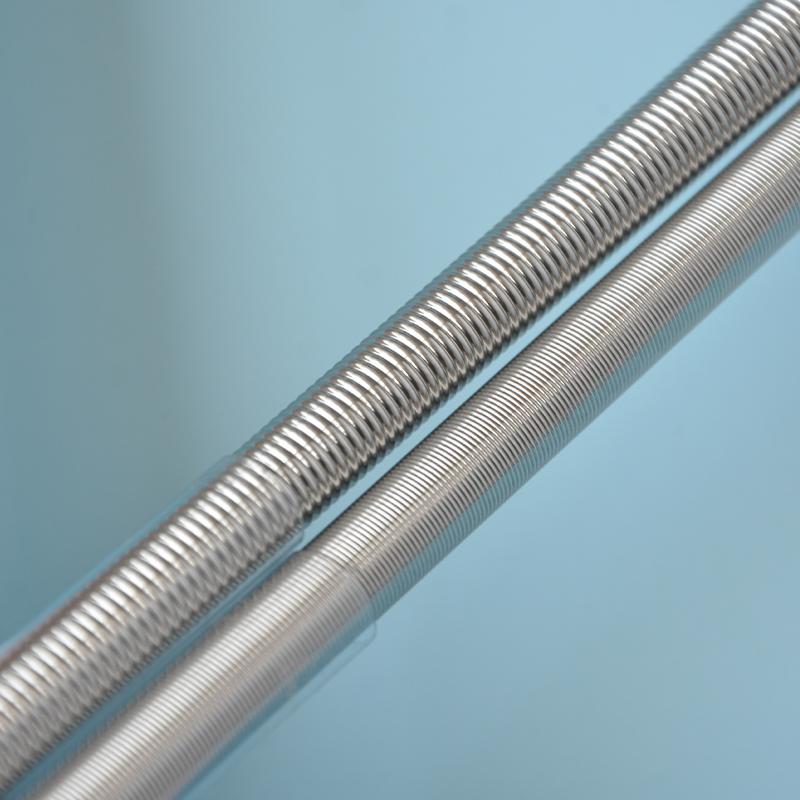

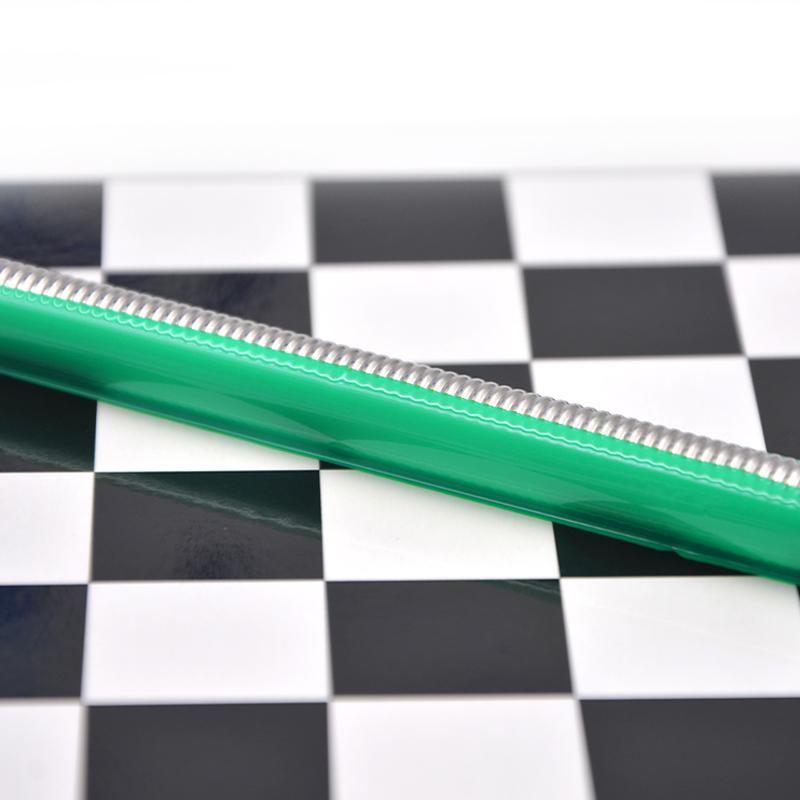

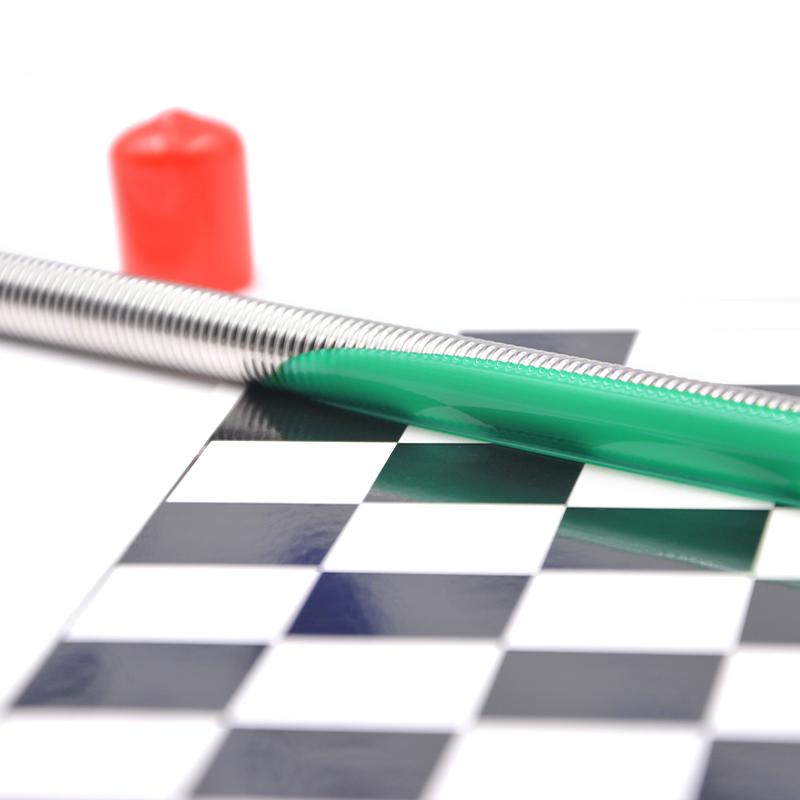

The US RDS 5 #3/8\ "molded Applicator rod is a thin Applicator rod with a film thickness of 11.4 microns and a rod diameter of 9.5mm. The product adopts a formed production process and is mainly used for proofing Colorimetric color matching applications in gravure plate inks, Water-based ink, Printing ink and other industries.

Features

1. The film thickness is 11.4 microns, which belongs to the thin Applicator rod number 2. Adopt formed production process 3. The film accuracy reaches 0.1μm 4. Made of high-grade wear-resistant stainless steel 5. Overall length 400mm, application width 300mm

Principle

Applicator rod formed by the formed Spreader process to form a uniform wet-film on the surface of the substrate, the film thickness is precisely controlled at 11.4 microns, Colorimetric proofing can provide accurate color reference.

Applications

Gravure plate inks, Water-based inks, Printing inks

Steps

1. Spreader substrate 2. Applicator rod placed on the substrate surface 3. Spreader with uniform pressure 4. Check film uniformity after Spreader 5. Colorimetric analysis

Production process
formed
wet film thickness
11.4μm
rod diameter
9.5mm
Total length
400mm
application width
300mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
