RDS 52 #3/8 Applicator Rod formed coating Applicator 118.9μm film thickness

Name: RDS 52 #3/8 Applicator Rod formed coating Applicator 118.9μm film thickness
Brand: RDS
SKU: NB033736
Price: 165.0 USD
Availability: PreOrder

$ 165.00Ex works

The formed process achieves 118.9 μm film thickness with an accuracy of 0.1 μm, providing a uniform Spreader effect, and different diaMeter Rods can be selected to meet various needs.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB033736

Service :The delivery and service By NBCLab.Com

Overview

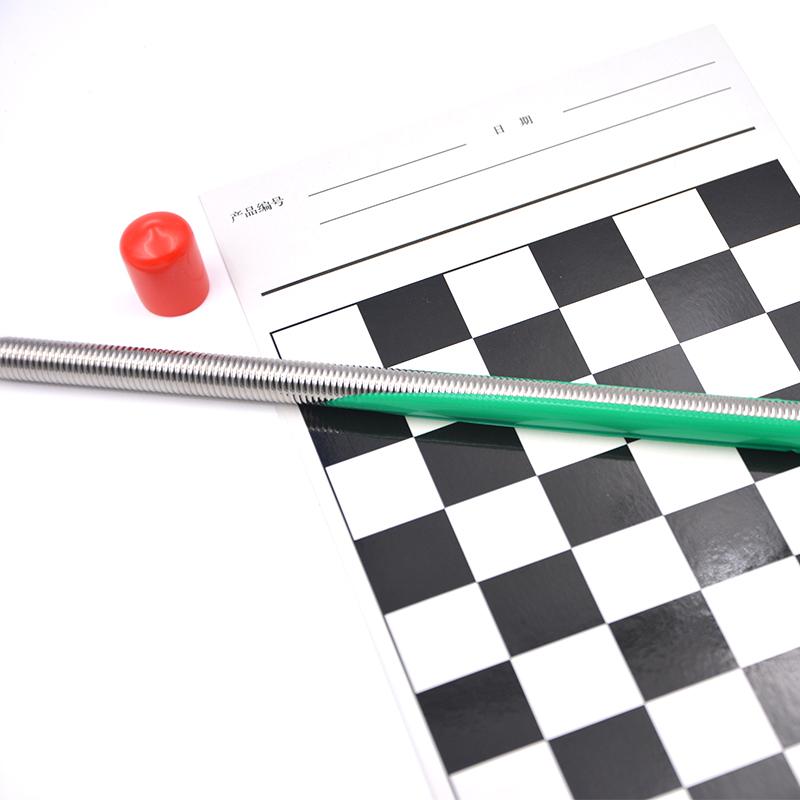

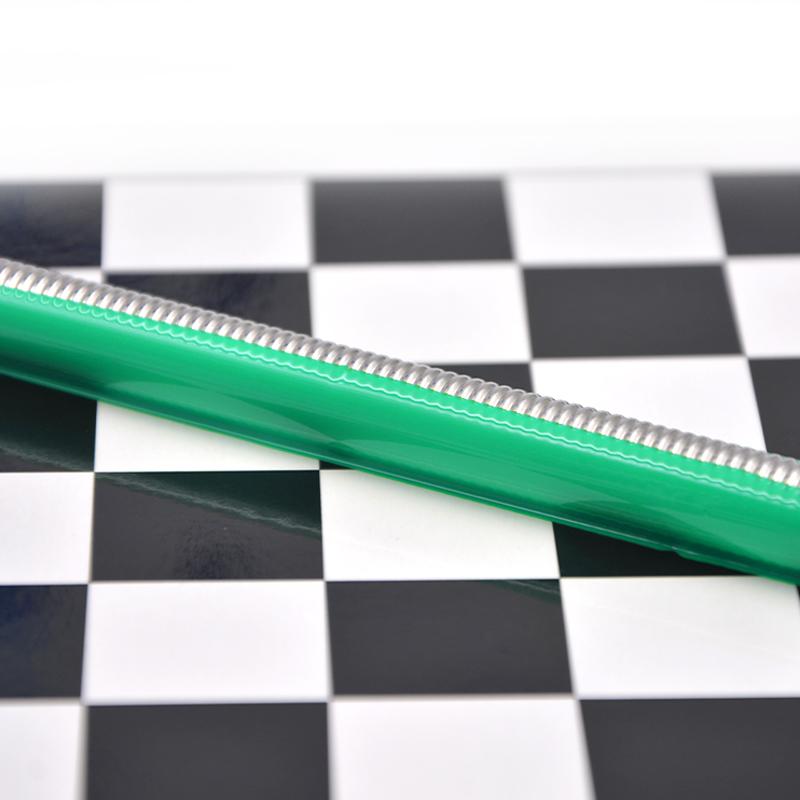

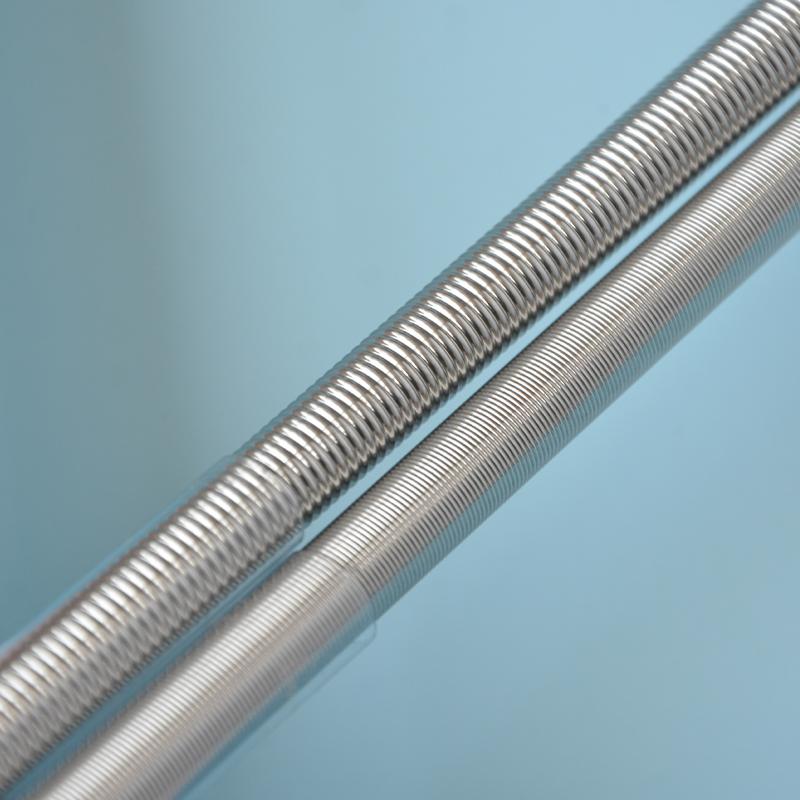

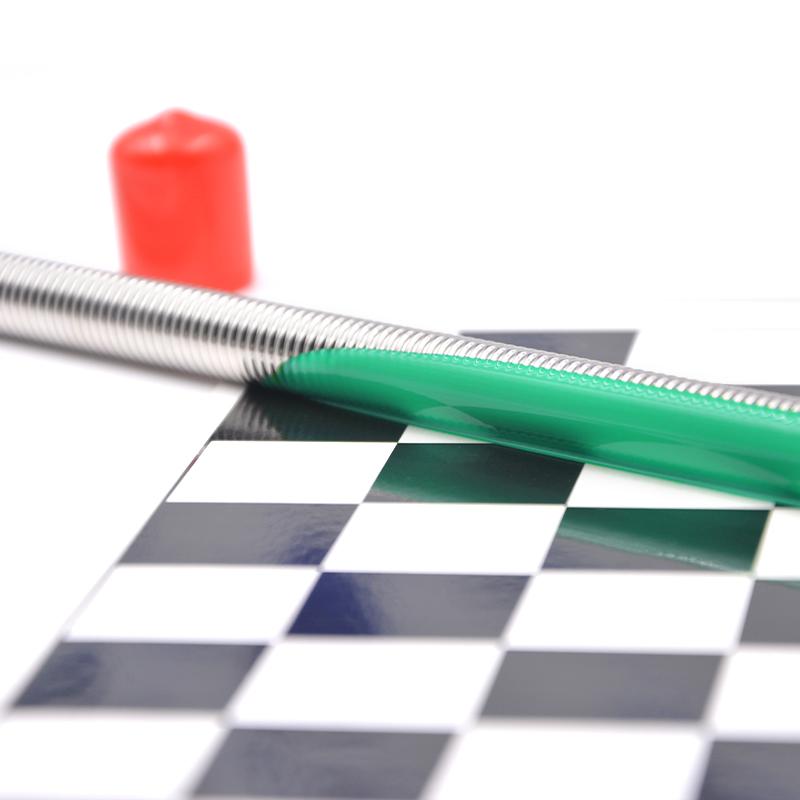

The US RDS 52 #3/8 "molded Applicator rod adopts the formed process, with a film thickness of 118.9μm and a rod diameter of 9.5mm. The film effect is the same as that of the wire-wound, and the film accuracy is 0.1 μm, which is higher than that of the ordinary formed coating applicator. Another 6.35mm diameter molded rod is optional, and the film thickness is the same.

Features

1. Using the formed process, the film effect is consistent with the wire-wound 2.The film accuracy is up to 0.1 μm, better than ordinary formed coating applicators 3. Available in two diameter options (9.5mm and 6.35mm) 4. Stainless steel material, strong durability

Principle

Applicator rods are formed to achieve uniform film thickness by precisely controlling the gap between the rod body and the substrate. The Working Principle is based on rod diameter and design accuracy to ensure that the film thickness reaches 118.9μm, and the accuracy is controlled within 0.1μm.

Specifications

Production process: formed, wet film thickness: 118.9μm, diameter: 9.5mm, total length: 400mm, application width: 300mm, material: stainless steel

Production process
formed
wet film thickness
118.9μm
rod diameter
9.5mm
Total length
400mm
application width
300mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
