Overview

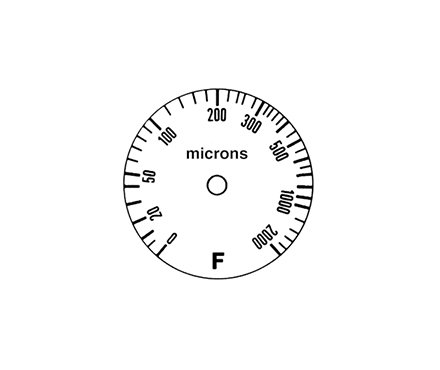

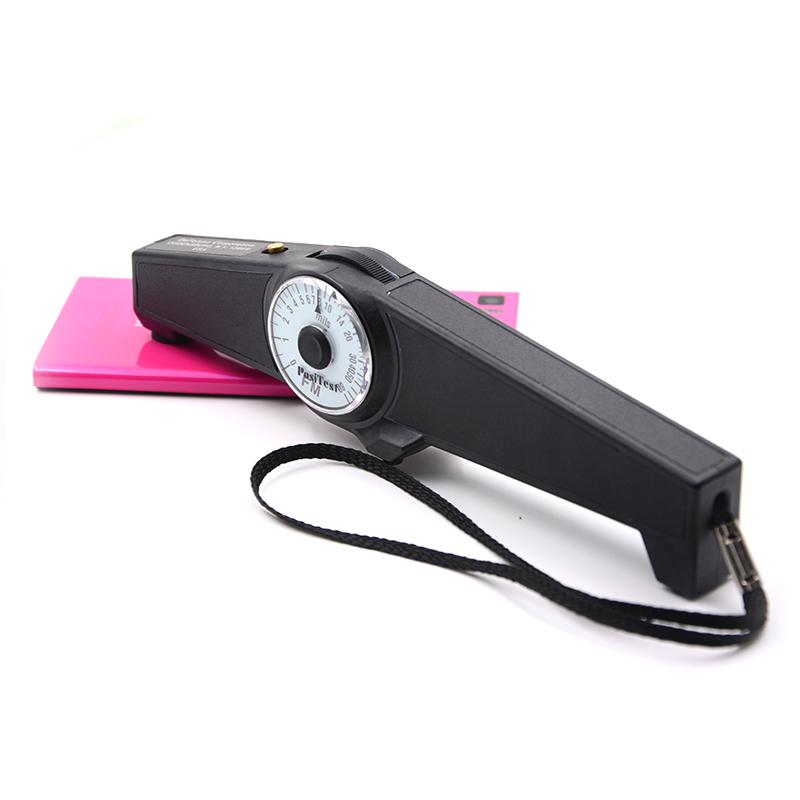

Defelsko PosiTest F is a mechanical magnetic Coating thickness gauge with a textured housing design, which is waterproof, oil, acid and solvent. The instrument has a thickness scale dial and pulley on the front and a wear-resistant magnetic Probe on the bottom. The operation is simple, fast, stable and accurate measurement. Measurement range is 0~ 2000μm, suitable for small part measurement.
Features
1. Reliable thickness measurement, calibrated certificate Traceability to PTB
2. Textured shell, waterproof, oil, acid, solvent
3. Probe is made of high wear-resistant cemented carbide and uses rare earth cobalt magnetic steel with long-lasting magnetic properties
4. Mechanical, no battery required
5. The measurement is completed through the dial and sound prompt
6. Explosion-proof, high safety
7. The included wristband and instructions are placed in a high-quality leather box for backup.
8. V-shaped groove Probe shell, cylinder measurement is stable and reliable
Principle
PosiTest F uses the principle of magnetic Induction for Coating thickness measurement. Coating thickness is indicated by the magnetic interaction between the permanent magnetic Probe and the substrate, combined with mechanical dial and sound prompts.
Applications
Hot dip galvanized, hard chrome, paints, enamel on steel
Steps
1. Place the Coating thickness gauge vertically on the measured object so that the Probe touches the surface of the measured object
2. Press the GO/NO-GO button of the thickness gauge (gold button)
3. Gently turn the wheel until you hear a "click". At this time, the thickness indicated by the dial pointer is the measured Coating thickness.
Notice
• Keep the instrument vertically placed during measurement
• Ensure that the Probe is in full contact with the surface of the object being tested
• When operating, dial the wheel lightly until you hear the prompt tone
Measurement range is limited to 0~ 2000μm
• accuracy of +/- 5μm within 100μm and +/- 5% of reading beyond 100μm
