Overview

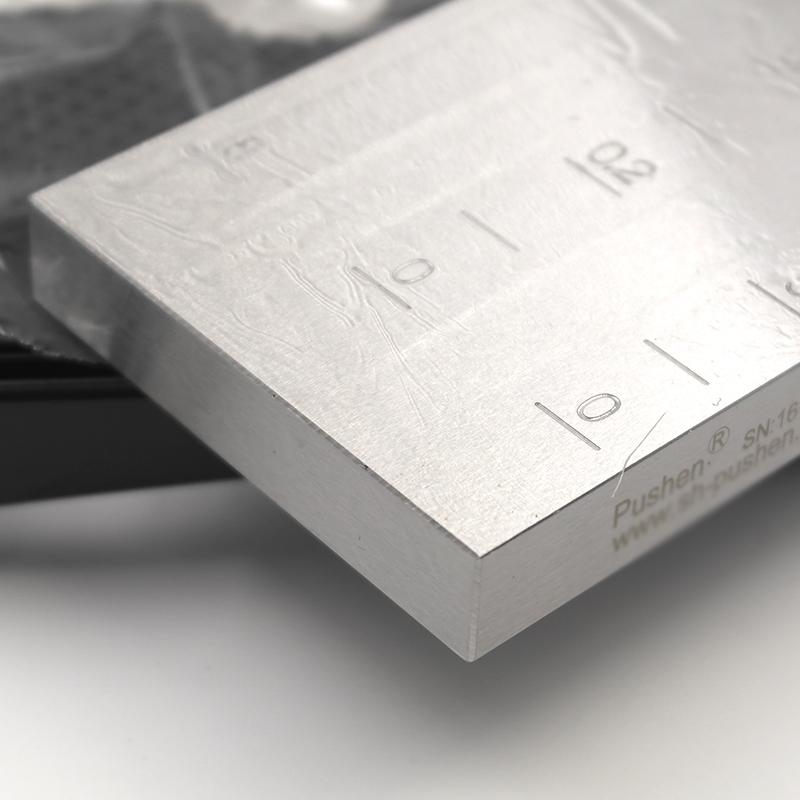

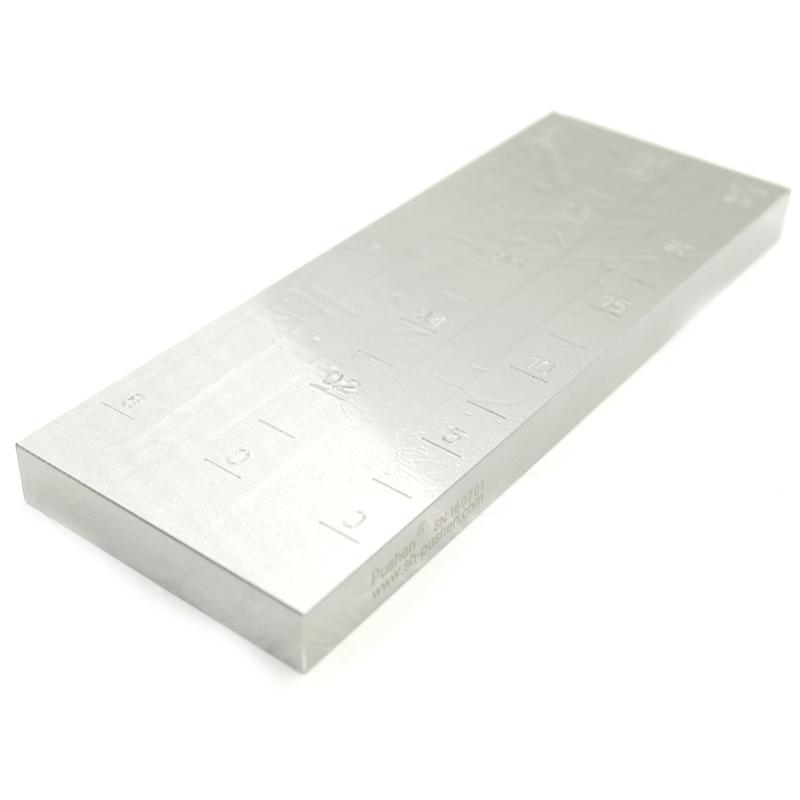

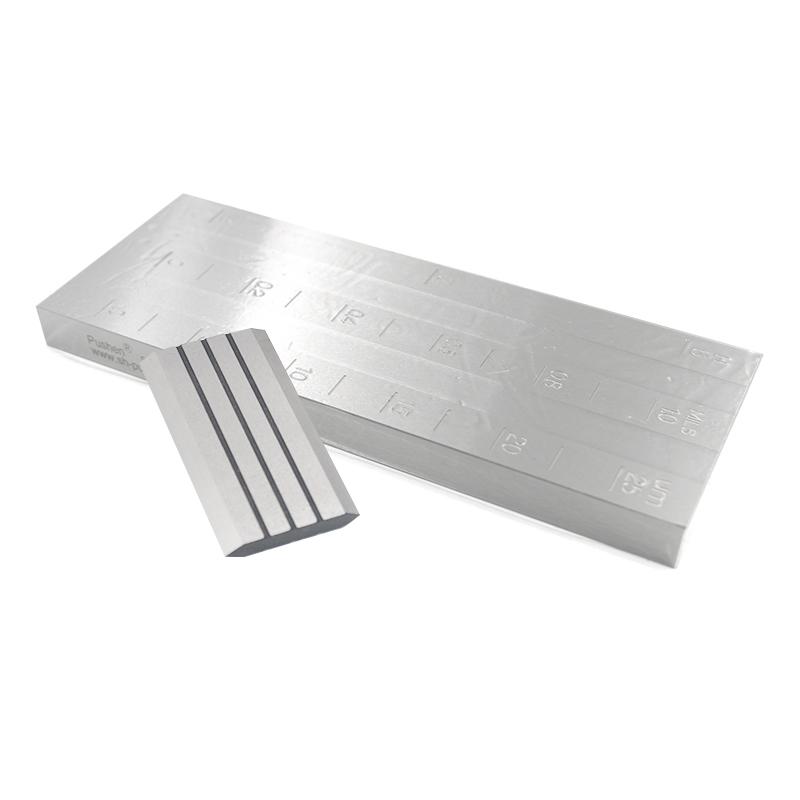

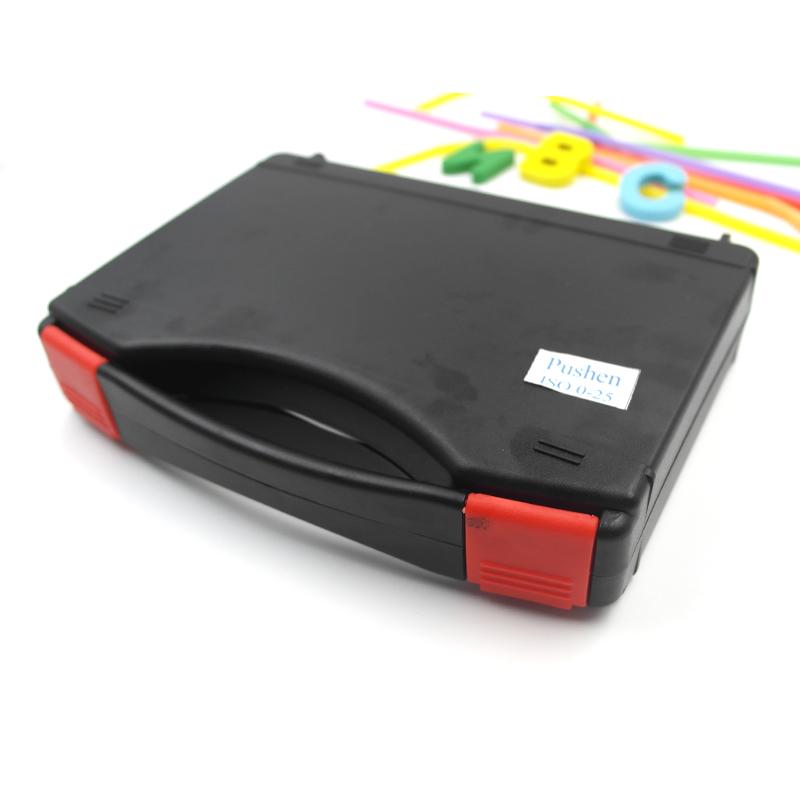

PUSHEN double-channel Grindometer model ISO-150um is a fineness measuring instrument with two grooves, and the surface is in three scale units: micron, Hegman, and Mill. The product is made of stainless steel (40Cr13 forging), which has good wear resistance. It is equipped with drawdown blade and black hard plastic toolbox Encasement. The internal Fineness Gauge surface is coated with anti-rust oil and parcelled with Plastic film.
Features
1. double-channel design, equipped with two grooves

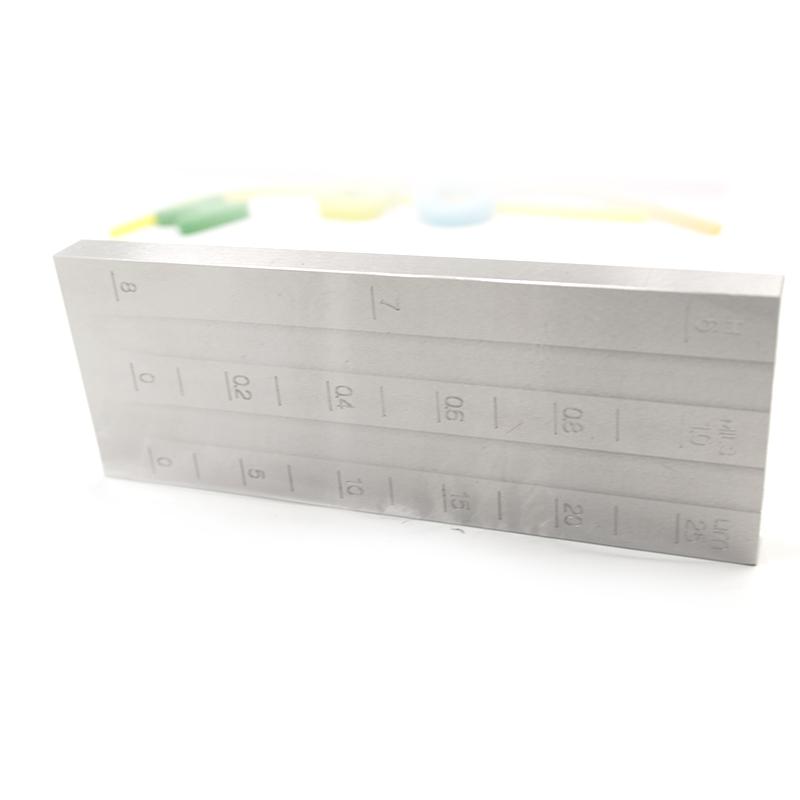

2. Use three scale units: micron, Hegman, Mill
3. Stainless steel (40Cr13 forging), good wear resistance
4. Front asperity 0.1, drawdown blade asperity 0.05
5. Encasement and rust protection
6. Range 0~ 150μm, accuracy +/- 2µm
Principle
In the process of fineness detection, pigments are ground into finer particles and dispersed in the fluid equipment. The physical property of this dispersion is called "fineness", which depends not only on the actual size of the individual particles, but also on the degree to which they are dispersed. The fineness of paints can be quickly measured using the inks Grindometer.
Applications
Paints, paints, pigments, raw materials, plastics, Printing inks, chocolate, ceramics, paper, food
Standards
GB/T 6753.1-2007
Steps
It is recommended to read the PUSHEN Grindometer operation manual.pdf for detailed operation steps
Notice
• Please read the operation manual carefully before use
• Pay attention to keep the Fineness Gauge surface clean
• It should be cleaned and properly stored after use
• Avoid collision of drawdown blade with hard objects to avoid affecting accuracy
