Overview

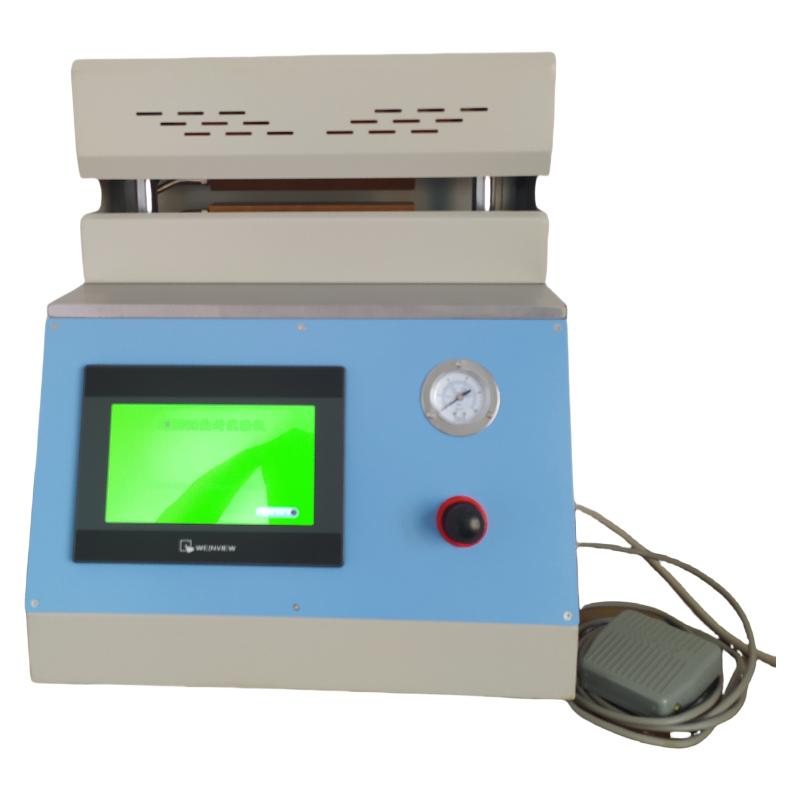

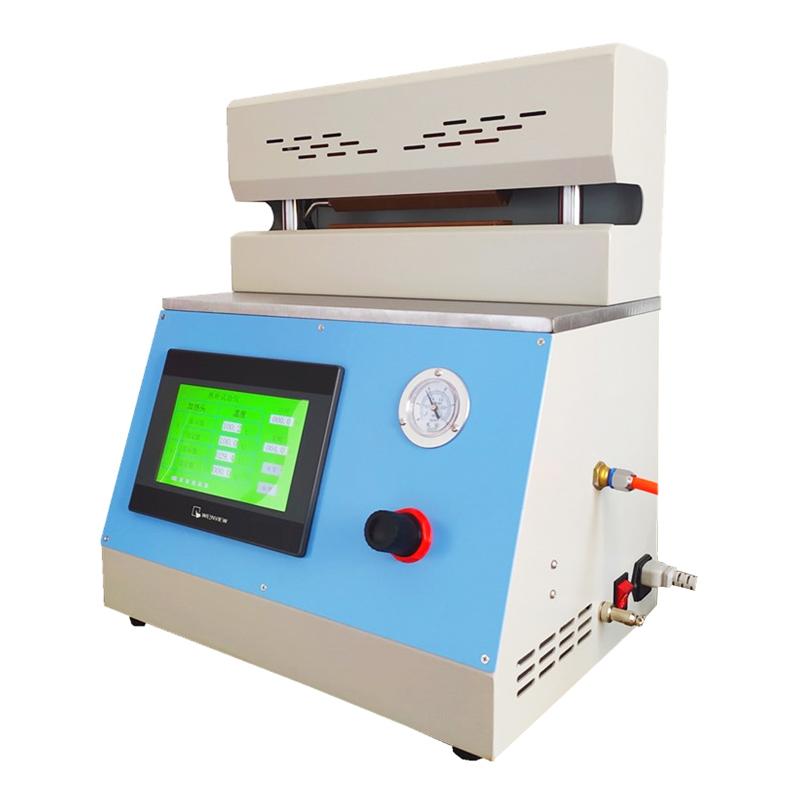

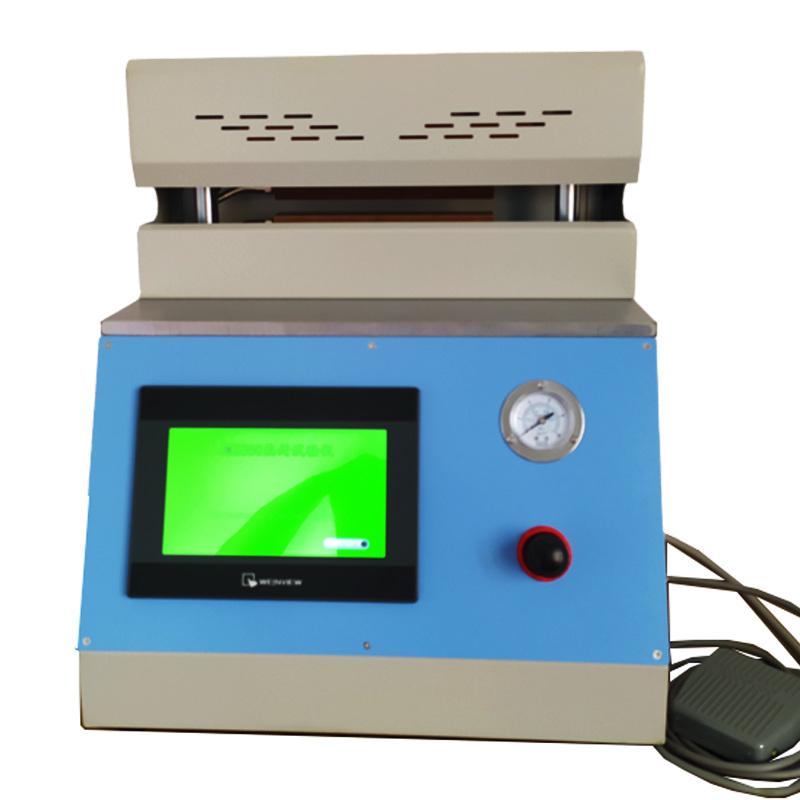

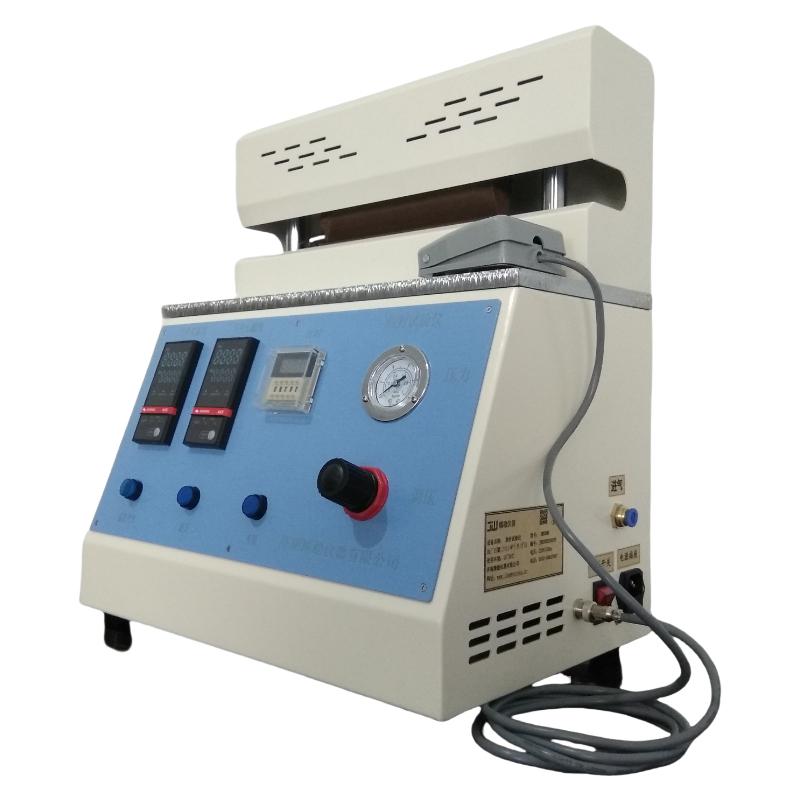

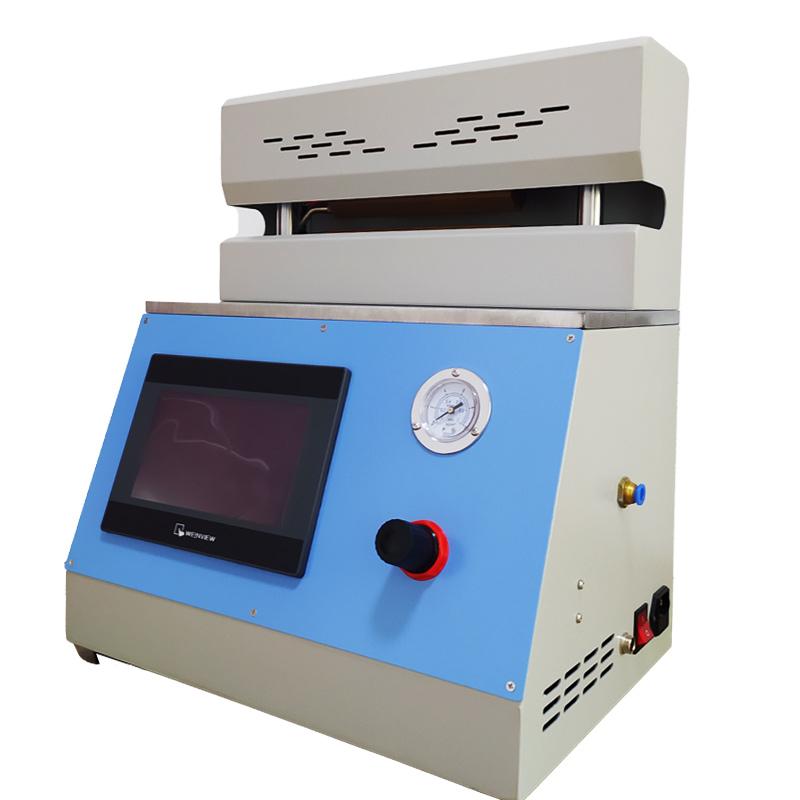

JW200CP film heat sealing tester is used to test the heat sealing performance of Encasement bags. The heat sealing temperature, heat sealing time and heat sealing pressure of Plastic film substrate, Soft Encasement composite film, aluminum foil, Spreader paper and other heat sealing composite films are determined by hot pressing sealing method. Through standardized design and standardized operation, accurate heat sealing test indicators can be obtained, which can then guide large-scale industrial production.
Features
1. Adopt PLC controller, Taiwan Screen Touchscreen display control, menu interface.
2. Use Huibang PID temperature controller, solid state relay and other brand good electrical parts.
3. Lower cylinder synchronization circuit, manual and pedal two test start modes.
4. The upper and lower heat heads are independently controlled, and the heat heads are made of brass, which has good thermal conductivity.
5. There is a protective cover outside the heating head, which is designed to prevent burns and safety.
6. Double-decked thermal insulation design, the insulation board is made of special materials, with good thermal insulation effect, high temperature resistance, no odor, and insulation resistance.
Principle
The JW200CP thin film heat sealing tester adopts the hot-pressing sealing method, and the sample to be sealed is placed between the upper and lower hot-sealing heads, and the sample is sealed under the preset temperature, pressure and time.
Applications
Aluminum foil Encasement bag heat sealing performance test, Plastic film, Plastic composite film, Paper-plastic composite film, Co-extrusion film, Aluminized film, Aluminum foil, Aluminum foil composite film and other film materials heat sealing test, Plastic hose sealing test
Standards
QB/T 2358、ASTM F2029、YBB 00122003
Steps
1. Connect the compressed air pipe to the compressed air inlet on the right side of the instrument.
2. Connect the foot switch to the connection behind the instrument.
3. Connect the power cord socket to the power inlet behind the instrument.
4. Prepare experimental materials.
5. Inject compressed air and adjust the pressure to 0.18MPa-0.3MPa with a pressure adjustment handle.
6. Turn the power switch to ON.
7. Set the heat seal temperature and time.
8. Put the sample between the upper and lower heat sealing knives, press the clamping button or step down the foot switch, and take out the sample after reaching the set time.
Notice
• Do not put your hands into the heating knife during operation.
• The gas source needs to be provided by the user.
