Overview

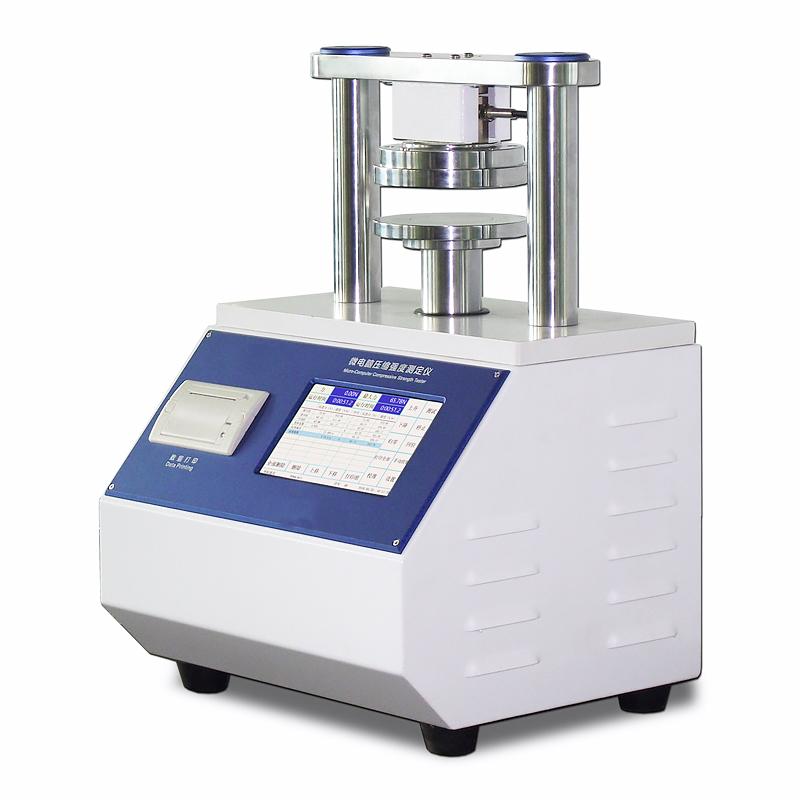

YINUO YN-YS3000 Automatic Compressive Strength Tester is a microcomputer controlled professional testing equipment for paper and Cardboard Ring Crush Test RCT, Edge Crush Test ECT, Corrugated Board adhesive strength PAT, Flat Crush Test FCT, corrugated base paper CMT and CCT and other 6 key performance tests.
Features
1. Microcomputer control technology, high automation program, simple and convenient operation
2.7In Touchscreen with Linear dispersion display, free switching between Chinese and English bilingual languages
3. The system automatically calculates, eliminating the need for users to calculate manually, reducing workload and errors
4. Built-in air circulation heat sink to improve long-term operation equipment failure
5. Using High Accuracy Force Sensor, Factory Accuracy Error Control < 0.3%
6. Adopt precision ball screw drive, aluminum alloy panel, good stainless steel upper and lower pressure plates and reasonable design to ensure the durability of the instrument
7. Adopt upper and lower limit protection devices, overload protection, automatic return after the test is completed, automatically judge the crushing force and automatically save the test data
8. Adopt high-speed micro printer, easy to use, low failure
Principle
The instrument drives the High Accuracy Motor and the precision ball screw drive through the microcomputer Control system, applies the compressive force to the sample, uses the High Accuracy Force Sensor to monitor the force value change in real time, the system automatically calculates and saves the test data, and is equipped with the corresponding auxiliary equipment to realize a variety of Compressive Strength tests.
Applications
Paper Ring Crush Test, Cardboard Edge Crush Test, Corrugated Board adhesive strength test, Corrugated Flat Crush Test, Flat Crush Test after Corrugated Paper Lab
Standards
GB/T 2679.8、GB/T 6546、GB/T 6548、GB/T 2679.6
Steps
1. Select the corresponding auxiliary equipment according to the test items (such as ring pressure center plate, side pressure Sampler, disbonding test rack, etc.)
2. Prepare the specimen and install it in the test location
3. Set test parameters through 7-inch Touchscreen
4. Start the test, and the instrument automatically applies pressure and records data
5. After the test is completed, the system automatically returns and saves the result
6. Use Build-in Printer to output test reports
Notice
• Please read the manual carefully before use to ensure correct operation
• Regularly check sensor accuracy to ensure test accuracy
• Pay attention to the parallelism adjustment of the upper and lower pressure plates to ensure the test mass
• Avoid overload use, the instrument has overload protection function
• Keep the equipment clean and maintain the transmission parts regularly
• Use original accessories to ensure Reliability of test results
