RDS 42# 3/8 Coating Rod Wire-Wound Applicator Rod 96μm Wet Film Thickness

Name: RDS 42# 3/8 Coating Rod Wire-Wound Applicator Rod 96μm Wet Film Thickness
Brand: RDS
SKU: NB000034
Price: 165.0 USD
Availability: PreOrder

$ 165.00Ex works

The wire-wound process can pRoduce a wet film thickness of 96 μm with a coating width of up to 300 mm, utilizing stainless steel material to ensure durability and precise coating control.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB000034

Service :The delivery and service By NBCLab.Com

Overview

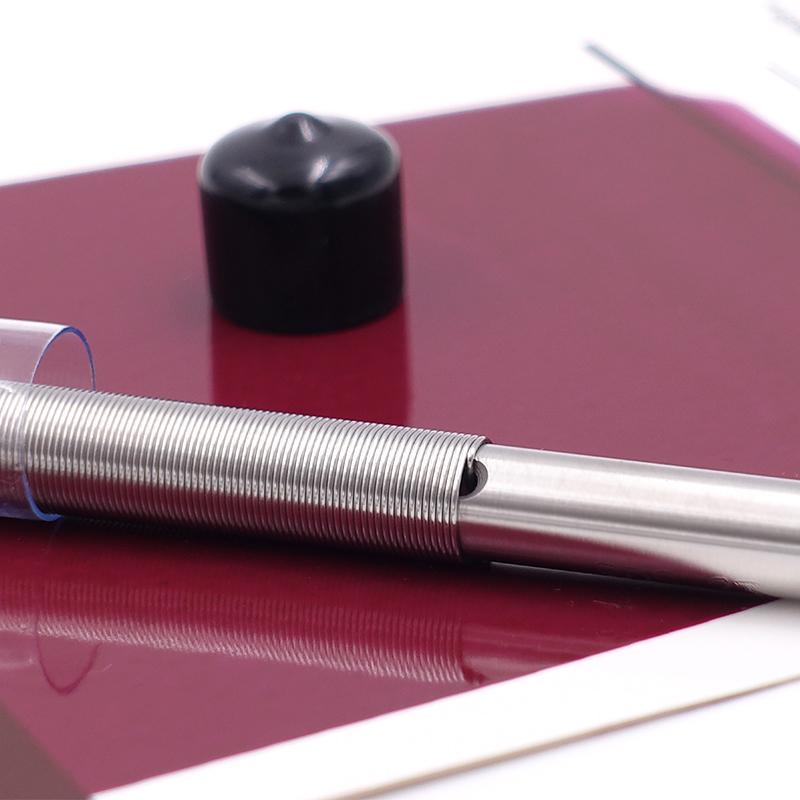

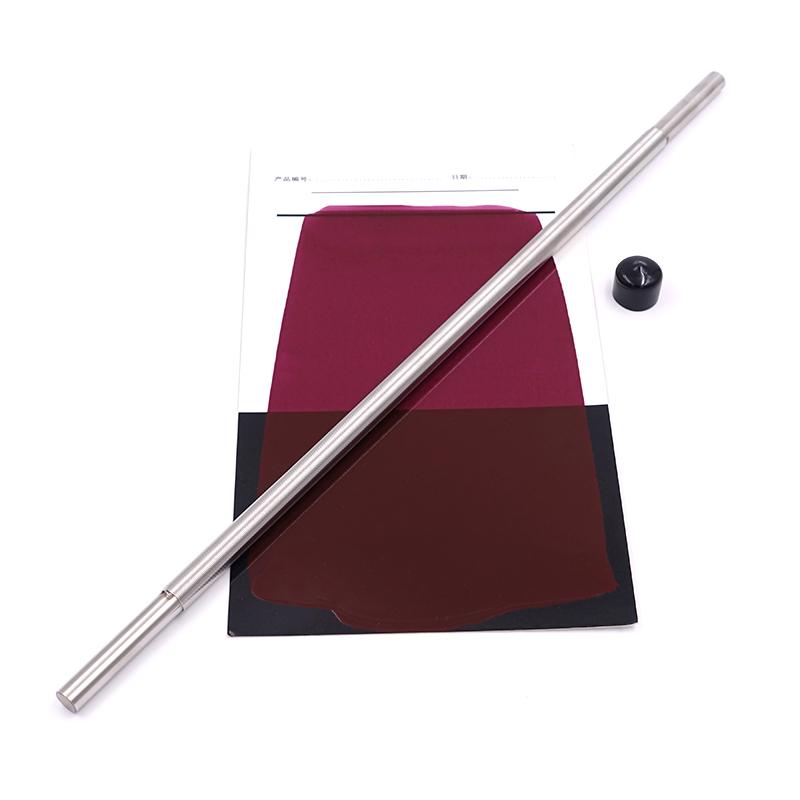

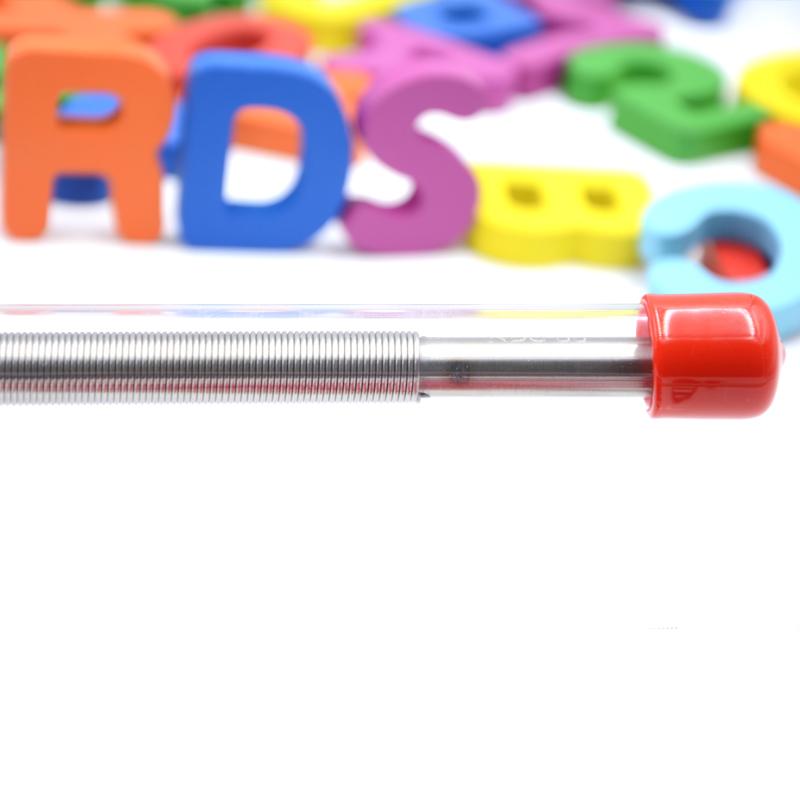

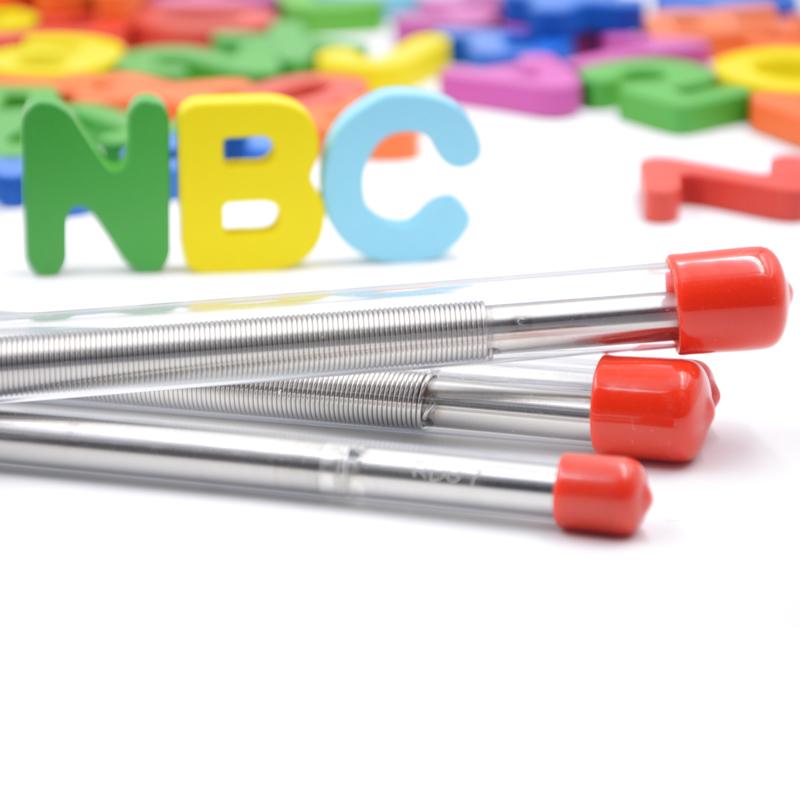

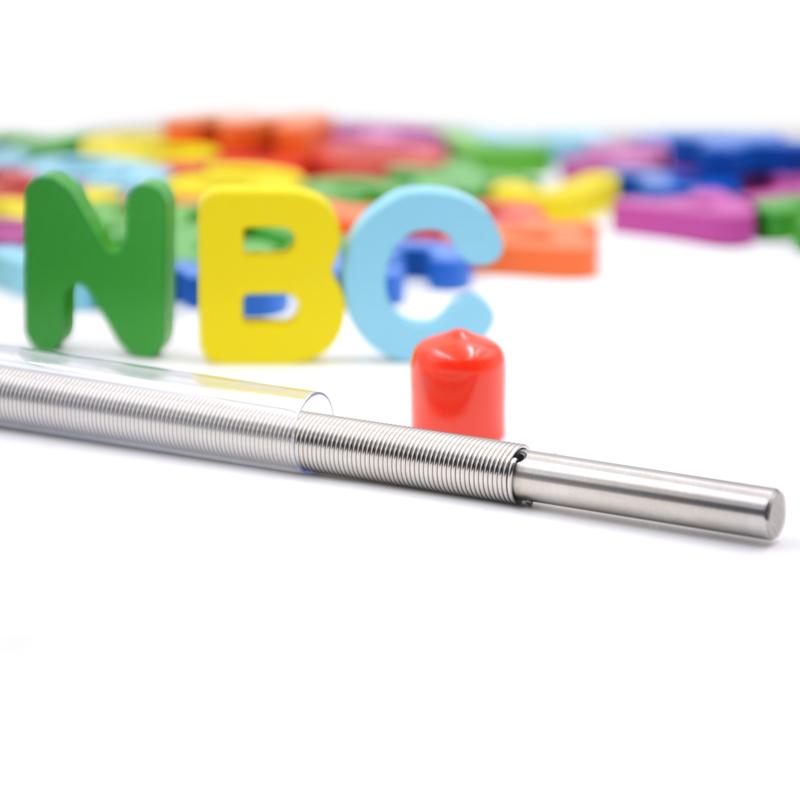

The US RDS #42 Applicator rod is a wire-wound bar made of 303 stainless steel, using the Mayer-Bar principle to precisely prepare 96um wet-film. The total length of the coating applicator is 400mm, and the sample part can be scraped 300mm. It is widely used in the field of architectural coatings and Pigments.

Features

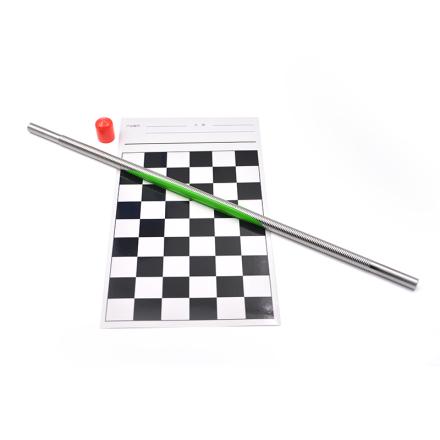

1. Made of 303 stainless steel, with strong durability 2. Using Mayer-Bar principle, high film accuracy 3. Accurately prepative 96um wet film thickness 4. Wire-wound production process, Spreader evenly 5. Available in two diameter sizes: quarter inch and three-eighth inch 6. The formed process is also available in 1/4 diameter

Principle

Applicator rod adopts Mayer-Bar principle, through wire-wound design, using the precise diameter of steel wire to control the wet film thickness in the Spreader process, to achieve accurate film preparatory of 96um thickness.

Applications

Architectural coatings and Pigments

Specifications

Production process: wire-wound, wet film thickness: 96.0μm, diameter: 9.52mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: stainless steel, wire diameter: 1.07mm

Production process
wire-wound
wet film thickness
96.0μm
rod diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
wire diameter
1.07mm
