Overview

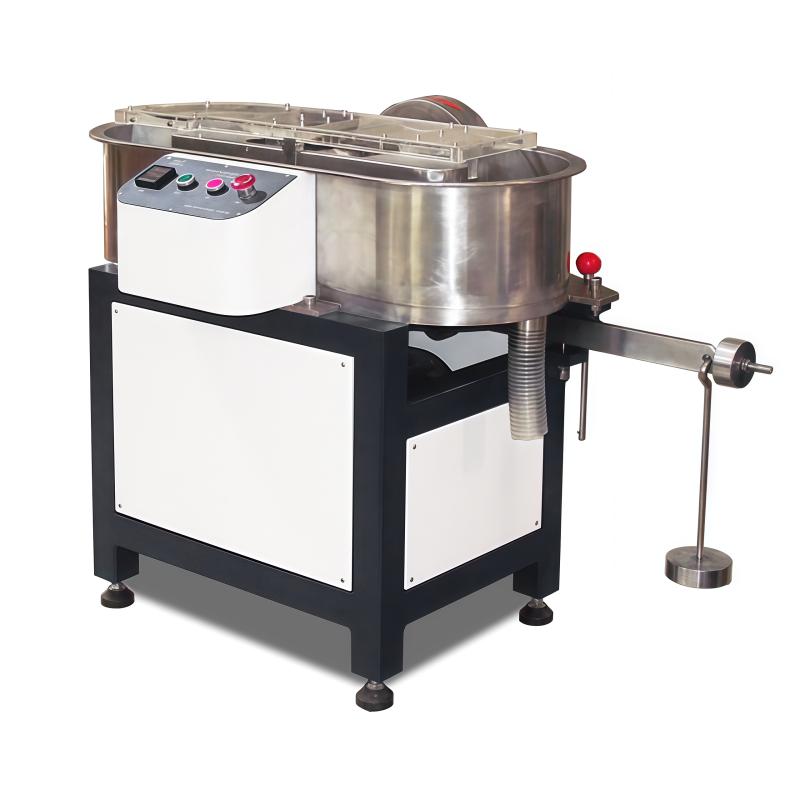

The YINUO YN-VL01 Wall-E Refining Machine is a 23-liter capacity international standard equipment for papermaking laboratories, specially designed for the study of pulp and paper processes. The equipment cuts, crumbles, and rubs the fiber Stock through the mechanical action of the throwing roller and the bottom knife. It can change the heavy thallium pressure and Refining time to obtain different experimental results. It is widely used in the Refining test of plant fibers, synthetic fibers and other materials.
Features
1. Pulp tank volume 47 liters, with water level warning function, minimum moisture warning 2L.
2. Knife roller size φ 194MM × 155MM, Rotation speed 200~ 900 +/- 10r/min adjustable.
3. 32 flying blades, thickness 4.7mm; 7 bottom blades, thickness 3.2mm.
4. Lever arm load 54 +/- 1N, standard Refining capacity 360 grams of absolute dry pulp.
5. Flat concave Stock diversion structure, improve the diversion effect.
6. Short distance 145 degree transparent composite cover, easy to observe and clean.
7. Stock outlet is equipped with noise silencer to reduce noise.
Principle
The device cuts, crumbles, kneads, splits, swells and refines the fiber stock through the mechanical force generated by the throwing knife roller and the bottom knife. At the same time, it causes the displacement and deformation of the cell wall, and the rupture of the outer layer of the primary wall and the secondary wall. Pulp of different Freeness/Schopper-Riegler can be obtained by adjusting the pressure and Refining time of the bottom knife.
Applications
Paper production test, quality control, process formulation, teaching and research experiment
Standards
QB/T 3702、ISO 5264/I、TAPPI-T200
Steps
1. Prepare Stock, the size of the pool is less than 25 * 25mm, and the Stock volume is 200g~ 700g of absolute dry pulp.
2. Set the Refining speed within the range of 200~ 900r/min.
3. Adjust the lever arm load to 54 +/- 1N.
4. Set the automatic control Refining time.
5. Start the device for Refining processing.
6. Real-time observation of the Refining process through the transparent lid.
7. Clean the slurry tank and blade after finishing Refining.
Notice
• Stock size should be less than 25 * 25mm.
• Refining concentration of 1.57%, ideal for 360 grams of dry pulp.
• Pay attention to the pulp pool water level warning during operation and avoid falling below 2L.
• Regularly clean the slurry tank and blade to maintain equipment performance.
• Ensure that the power supply is 750W/380V, meeting the equipment requirements.
