Overview

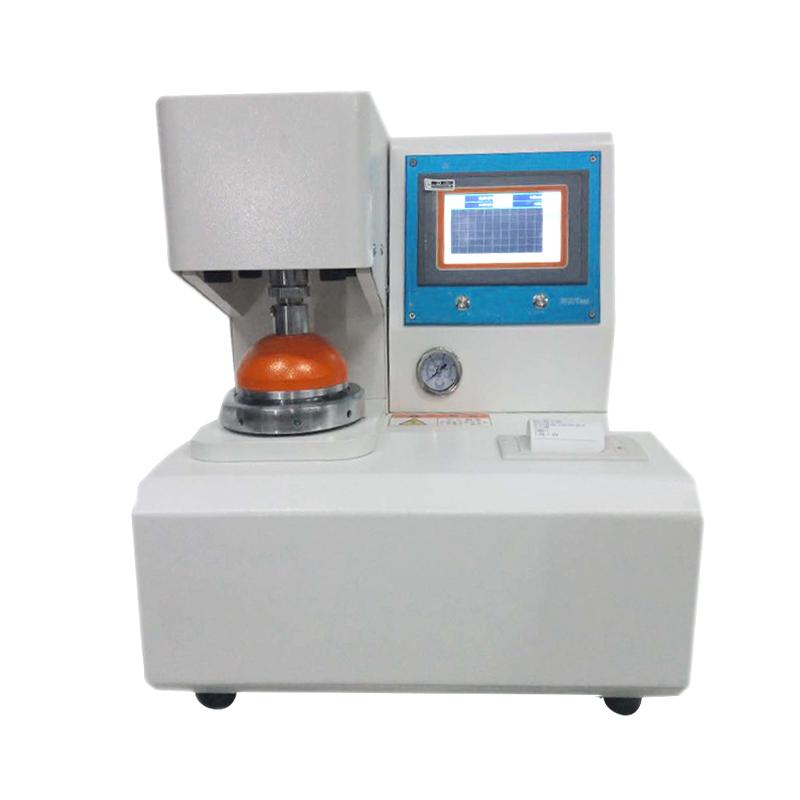

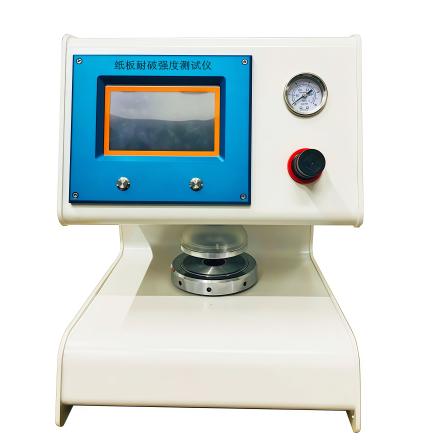

The equipment is the basic instrument for Cardboard Burst Strength performance inspection. Its performance parameters and technical pointers comply with ISO2759 "Cardboard - Burst Strength Determination" and GB1539 "Cardboard Burst Strength Determination Method". The signal transmission pressure is used, and the maximum Breaking strength value is automatically retained when the sample is broken.
Features
1. Large blue LCD display
2. One-click automatic test, automatic stop return for pattern rupture, and automatically retain the maximum Breaking strength value
3. Automatically calculate the average of multiple sets of test data, MAX Maximum MIN Minimum
4. Printable data reports
Principle
Using signal transmission pressure, the instrument automatically retains the maximum Breaking strength value when the sample breaks.
Applications
Cardboard Burst Strength performance inspection
Standards
ISO2759 "Cardboard - Burst Strength Determination", GB1539 "Cardboard Burst Strength Determination"
Steps
1. One-click automatic test
2. The sample breaks and automatically stops returning
3. Automatic retention of maximum Breaking strength
4. Automatically calculate the average of multiple sets of test data, MAX Maximum MIN Minimum
5. Printable data reports
Notice
• Use hydraulic oil as a mixture of 85% glycerin and 15% distillation water
• Power supply voltage AC220V +/- 10%, 50Hz
• Ensure clamping force ≥ 690Kpa
• Oil feeding speed is controlled at 170 +/- 15mL/min
• The film resistance must meet the specified range: 170-220kPa when protruding 10mm, 250-350kPa when protruding 18mm
