Overview

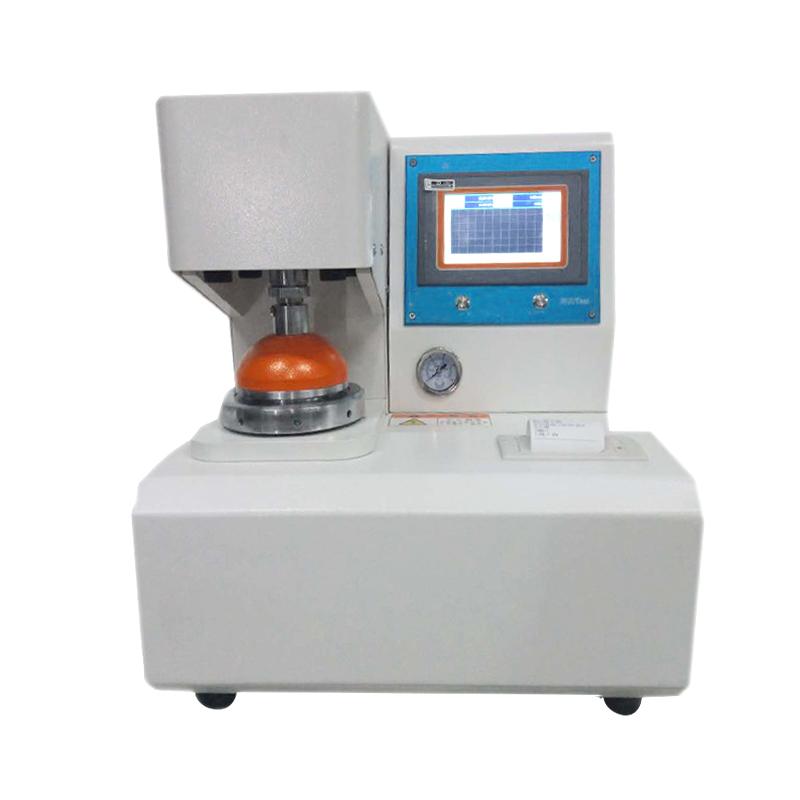

Cardboard Burst Tester (Model: ZY-NP-1) is a special instrument for paper Burst Strength performance testing in China, suitable for all kinds of paper Burst Strength testing. Its performance parameters and technical indicators comply with ISO2758 "Paper - Burst Strength Determination" and GB454 "Paper Burst Strength Determination Method" and other standards.
Features
1. Large blue LCD display
2. One-click automated testing
3. Pattern rupture automatically stops returning
4. Automatic retention of maximum Breaking strength
5. Automatically calculate the average of multiple sets of test data, MAX Maximum MIN Minimum
6. Printable data reports
Principle
Cardboard Burst Tester applies pressure at a speed of 95 +/- 5mL/min through the oil feeding system, automatically stops and records the maximum Breaking strength value when the sample breaks, the system sealing ensures that the pressure drop is less than 10% Pmax within 1 minute, and the clamping force is greater than 430Kpa to ensure that the sample is fixed.
Applications
Paper Burst Strength Test
Standards
ISO2758 "Paper - Burst Strength Determination", GB454 "Paper Burst Strength Determination Method"
Steps
Step 1 Prepare the sample
2. Fix the specimen in the clamping ring
3. One-click start automatic test
4. The instrument automatically tests and records data
5. View or print the test report
Notice
• Ensure that the sample holding force is greater than 430Kpa
• Maintain system sealing and check pressure drop regularly
• Before use, confirm that the film resistance is within the range of 25~ 35kPa
• Note that the instrument weight is 75Kg and needs to be placed firmly
