Overview

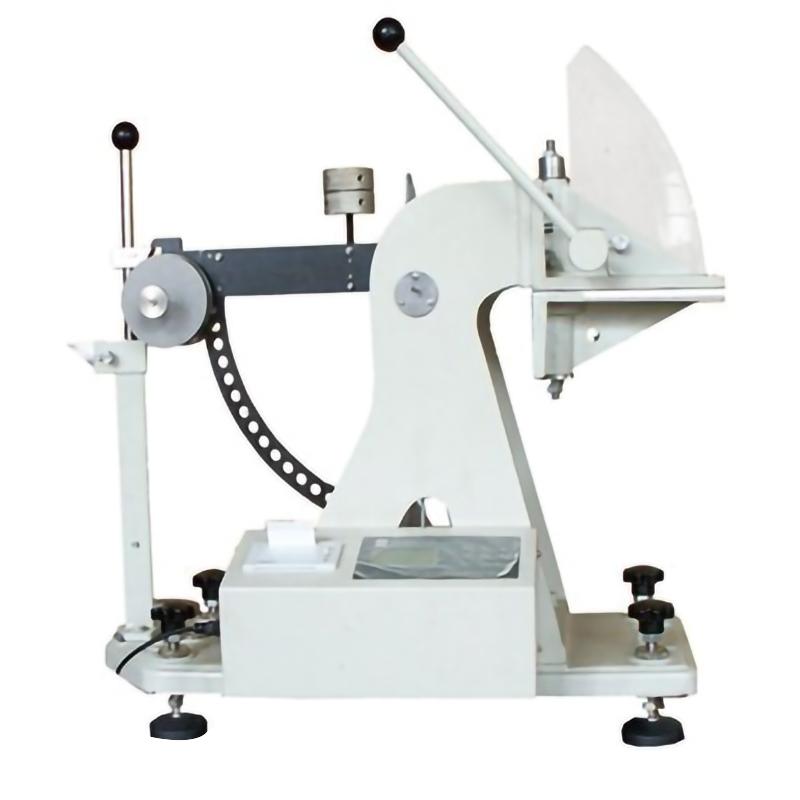

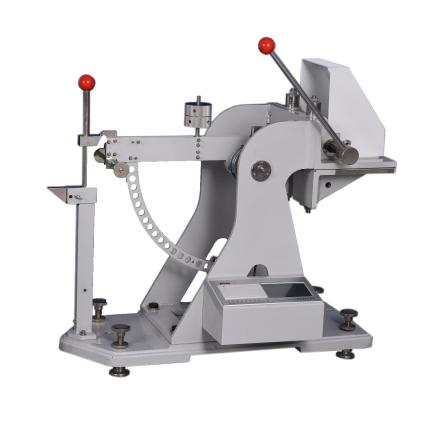

The Corrugated Board Puncture Tester is a special instrument for measuring the Puncture Resistance of Corrugated Board. The product is designed with reference to ISO3036 and GB2679.7 standards, and has the characteristics of fast pressing, automatic reset of the operating handle, reliable safety protection, LCD display and thermal printer. It is suitable for Cardboard, carton production, scientific research and commodity inspection. It is an indispensable and commonly used instrument for these enterprises and departments.
Features
1. Full computer control technology, open structure, high automation program, simple and convenient operation, safe and reliable
2, Automatic measurement, intelligent judgment function, Operating system real-time display measurement results
3, automatic measurement, statistics, print test results, and with data storage function
4, Chinese graphic menu display Operating interface, easy to use
Principle
The instrument pierces the Corrugated Board by swinging the swing arm to drive the angular cone to pierce the Corrugated Board for measurement of its anti-Puncture Resistance. The swing arm swings more than 120 times, the size of the angular cone is three base edges with a length of 60 * 60 * 60mm, a height of (25 +/- 0.7) mm, and an edge fillet radius R (1.5 +/- 0.1) mm to ensure the accuracy and Repeatability of the test.
Applications
Cardboard, carton production, scientific research, commodity inspection
Standards
ISO3036、GB2679·7
Steps
1. Place the sample in the test position and fix it using the quick compression function
2. Start the instrument, Operating system settings parameters through the Chinese graphic menu
3. Automatic reset of the operating handle, automatic measurement of the instrument and real-time display of results
4. The instrument intelligently judges that the test is completed, automatically counts, saves data, and prints reports
Notice
Measurement range 1~ 48J to avoid overloading
• Regularly check the friction of the pointer to ensure that it is less than 0.25J to maintain accuracy
• Pay attention to safety protection during operation to prevent accidental injury
• Before use, confirm that the number of swing arm swings is normal, more than 120 times to ensure test Reliability
• Follow standard operating procedures to avoid misoperation affecting measurement results
