Overview

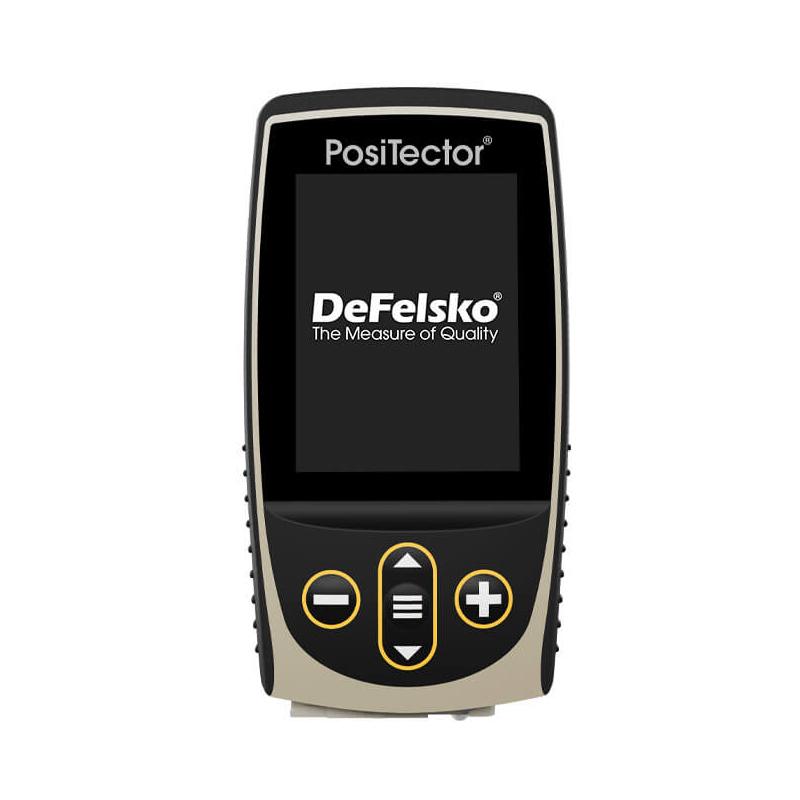

The Defelsko PosiTector BDYADV is a multifunctional Coating thickness gauge that is compatible with a variety of PosiTector Probes, including 6000 coating thickness measurement, RTR asperity, 200 ultrasonic coating thickness measurement, DPM dew point testing, SPG surface profile, IRT infrared temperature measurement, SST soluble salt testing, and more. It features a new ergonomic design with IP65 Protection Rating, 2.8-inch Impact Resistant Color Touchscreen, 250,000 readings Storage capacity, three scan modes, Touchscreen keyboard, screenshot save image, and pass and fail prompts.
Features
1. Simple: New 2.8-inch Anti-Impact Color Touchscreen, quick menu navigation; one-click help function; flashing display for noisy environments; reset function to restore factory settings.
2. Powerful: statistical mode continuously displays average, Standard Deviation, minimum/maximum thickness and number of readings; screen capture saves 100 images; sealing USB port to connect to PC; storing measurement with date and timestamp.
3. Durable: IP65 Protection Rating housing; ergonomic design, durable rubber grip; shock protection rubber leather case to increase impact resistance; two-year warranty.
4. Accurate: Includes calibrated certificates traceable to NIST or PTB; meets national and international standards, including ISO and ASTM.
5. Multi-function: optional display language; automatic swirl/spin display with flip lock; compatible with a variety of Probe types.
Principle
The PosiTector host performs measurements through compatible Probes, such as coating thickness measurement Probe detects Coating thickness using electromagnetic induction or eddy current principles, and Miscellaneous Probes such as asperity, ultrasonic, dew point, surface profile, infrared temperature measurement and soluble salt test Probe work based on corresponding physical principles. The host processes Probe signals, displays results via Touchscreen, and supports Data storage, statistical analysis, and pass/fail evaluation.
Applications
Coating thickness measurement, asperity measurement, ultrasonic thickness measurement, dew point test, surface profile measurement, infrared temperature measurement, soluble salt test, hardness testing, wall thickness measurement
Standards
ISO 2178、ISO 2360、ISO 2808、ISO 19840、ASTM B244、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2、US Navy NAVSEA PPI 63101-000、US Navy NAVSEA 009-32、AS 2331.1.4、AS3894.3-B
Steps
Install 3 AAA alkaline batteries.
2. Select and connect compatible PosiTector Probes.
3. Turn it on and use the Touchscreen navigation menu to set parameters.
4. Carry out measurement, the host automatically displays the result and stores the data.
5. Use statistical mode to analyze data or export data via USB/Bluetooth.
Notice
Make sure the Probe matches the substrate type (e.g. F for ferrous metals, N for non-ferrous metals, FN for all metals).
• When used in harsh environments, pay attention to IP65 Protection Ratings, but avoid long soaking.
• Periodically calibrate for accuracy, refer to the accompanying calibrating certificate.
• Use shock absorber holsters to increase impact resistance and avoid violent falls.
• Pay attention to batch management when storing data to avoid data loss.
• Battery life may be affected by Frequency of use, battery backup is recommended.
