TQC sheen VF1581 Prismatic bird type coating Applicator 4-sided Spreader 50-200μm stainless steel

Name: TQC sheen VF1581 Prismatic bird type coating Applicator 4-sided Spreader 50-200μm stainless steel
Brand: TQC sheen
SKU: NB000345
Price: 1512.0 USD
Availability: InStock

$ 1512.00Ex works

4-Sided design can simultaneously Spreader four different thicknesses, wet film thickness range of 50-200μm, application width 150mm, accuracy of +/- 3μm, stainless steel corrosion resistance easy to clean.

Model

VF1581

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB000345

Service :The delivery and service By NBCLab.Com

Overview

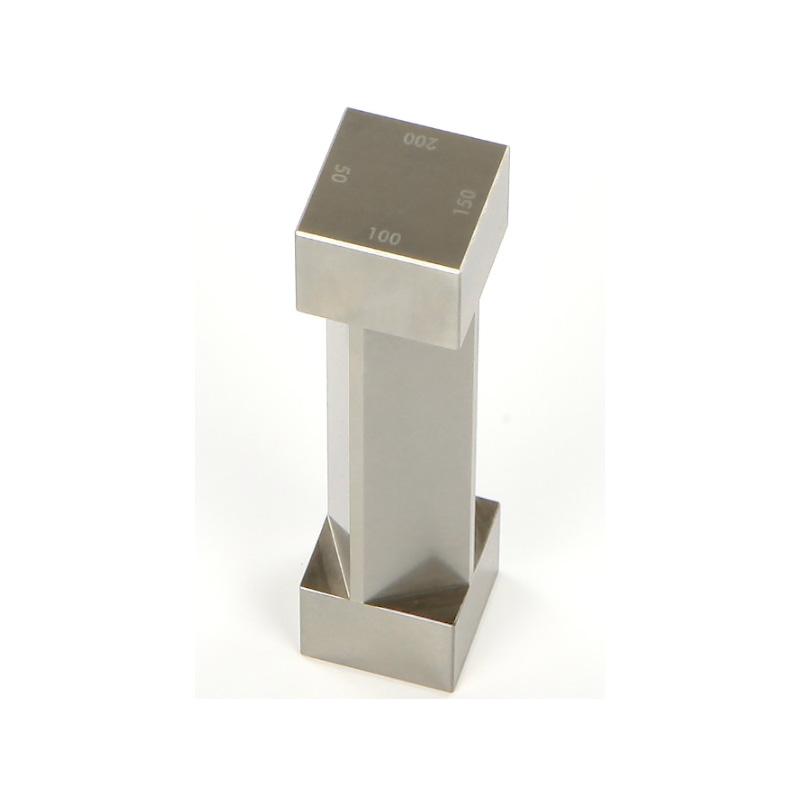

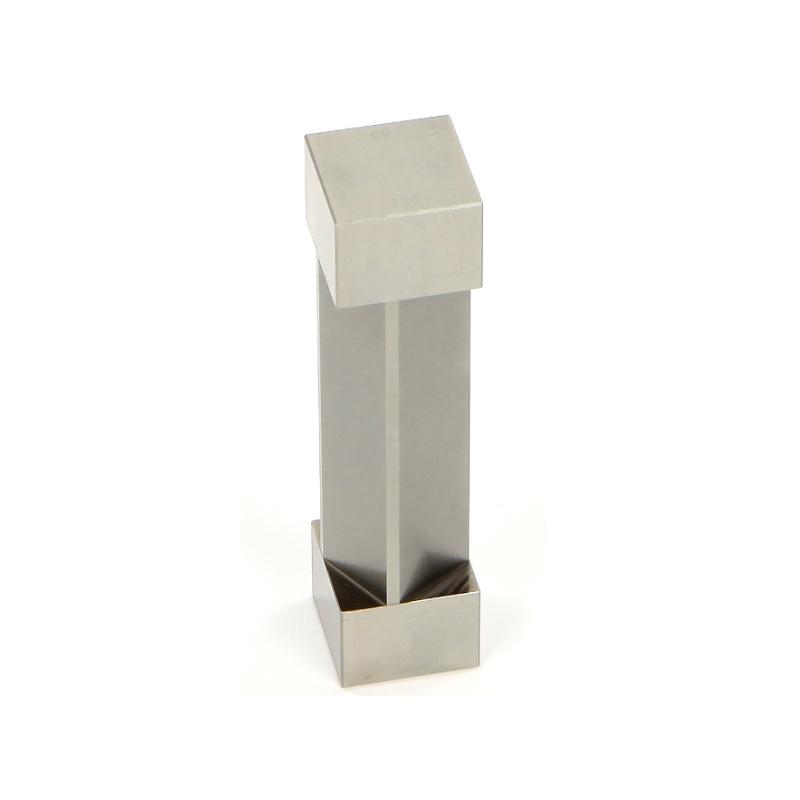

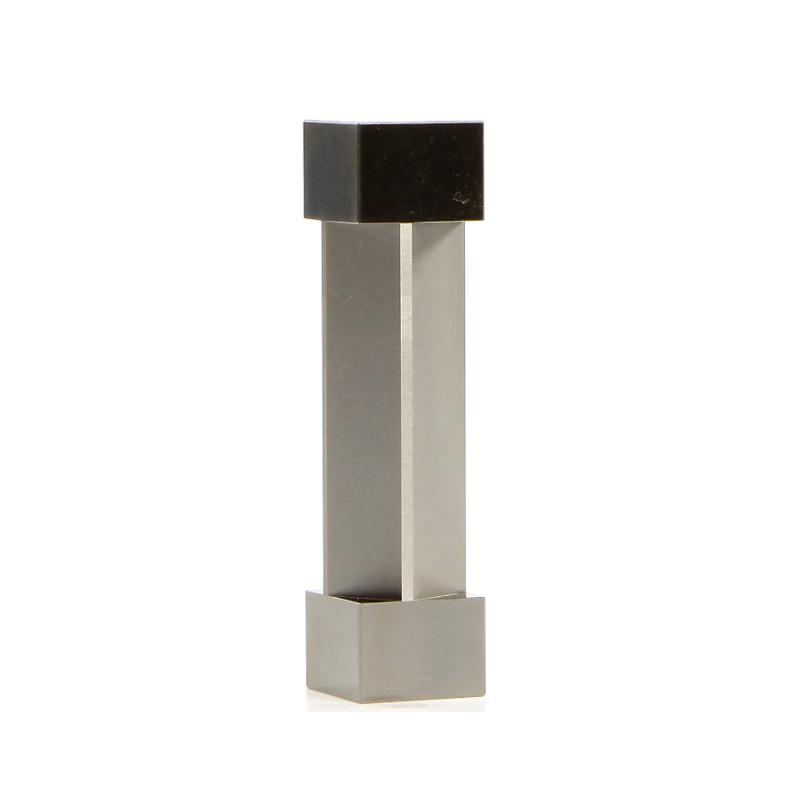

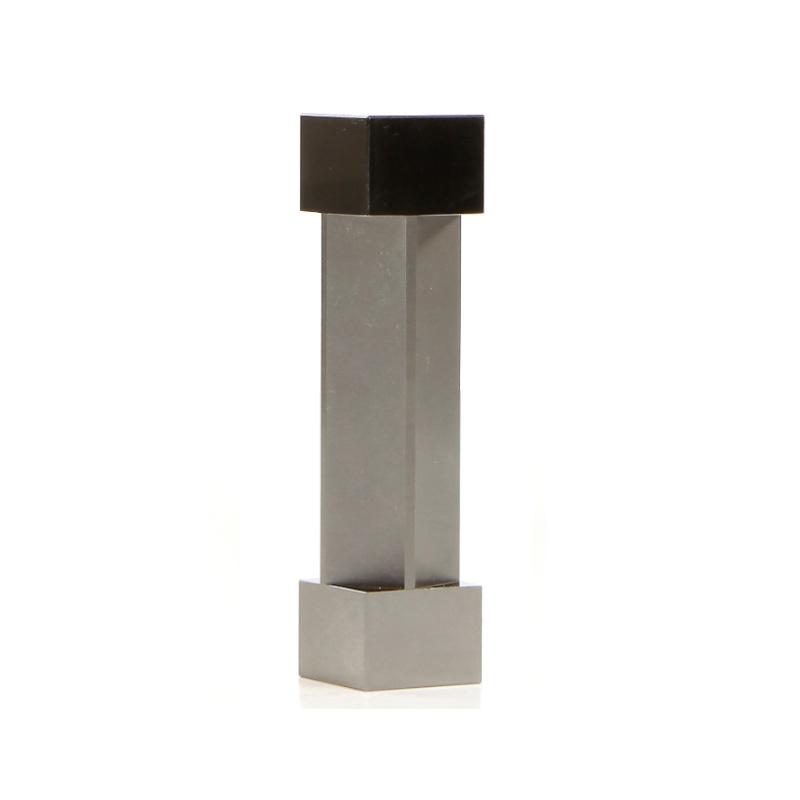

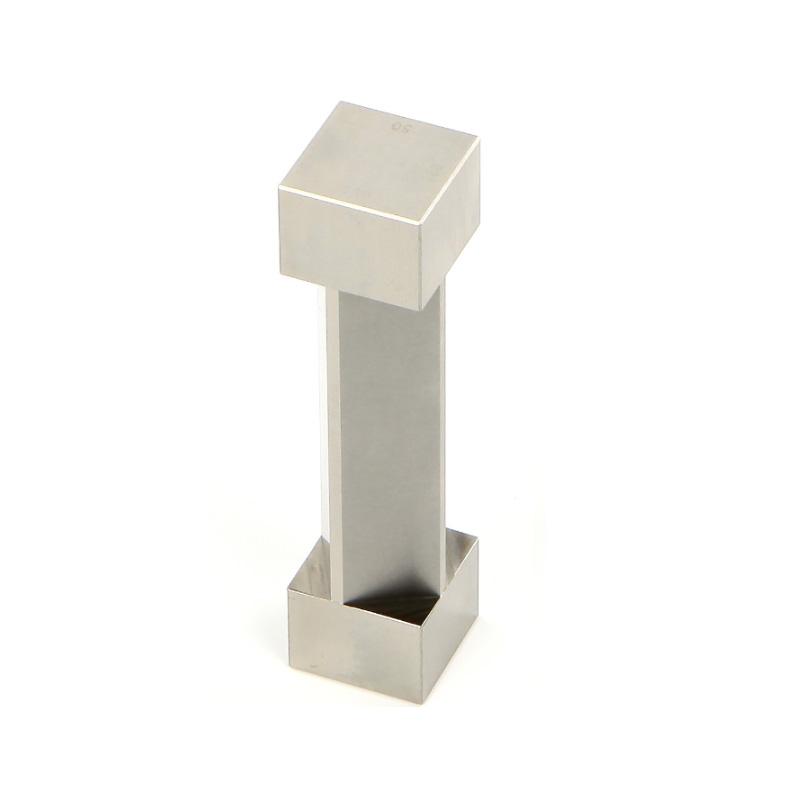

The TQC VF1581 Prismatic Bird type coating applicator is a 4-sided coating applicator with 4 painted surfaces and can be applied to 4 different film thicknesses. The painting widths are 50mm (2 "), 75mm (3") and 100mm (4 ") and are suitable for most products and corresponding solid substrates. The material is stainless steel and is not subject to acidic or alkaline erosion in Coatings or Cleaners.

Features

1.4-sided design, can provide 4 different film thicknesses; 2. The application width covers 50mm, 75mm and 100mm, and the applicability is wide; 3. High-grade stainless steel material, corrosion resistance; 4. High accuracy, wet film thickness accuracy of +/- 3μm; 5. Compliant with ASTM D 3022 and ASTM D 823 standards.

Principle

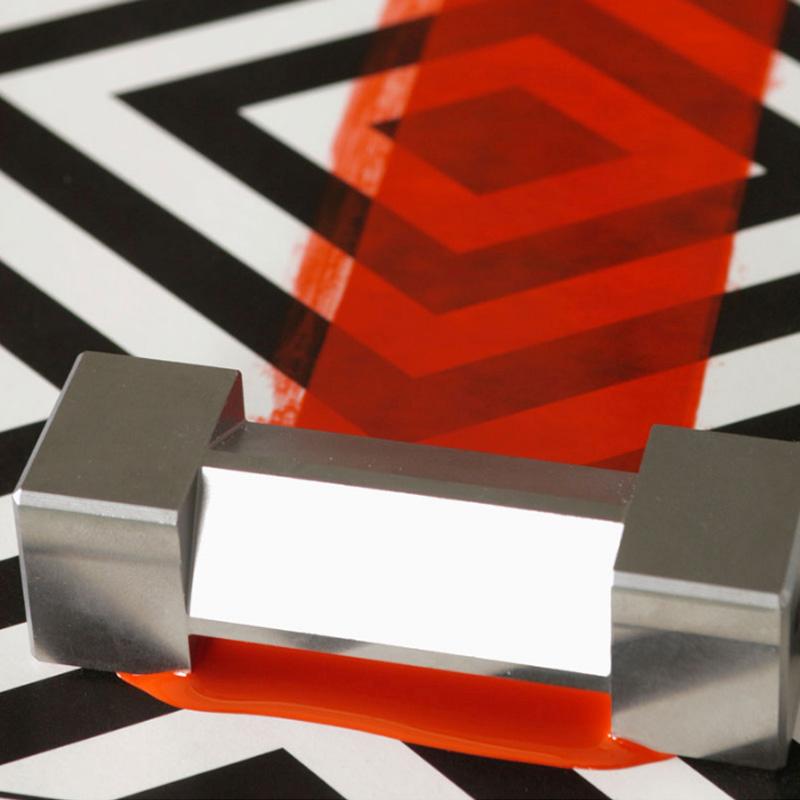

The bird-type 4-sided coating applicator uniformly Spreader Coating on the solid substrate through its four different thicknesses of painted surfaces to form a wet-film of the specified thickness. Users can select the appropriate painted surface for Spreader operation according to their needs.

Applications

Coating Spreader, solid matrix painting

Standards

ASTM D 3022、ASTM D 823

Steps

1. Select the desired paint surface to obtain a specific wet film thickness; 2. Place the coating applicator on a solid substrate; 3. Spreader the coating applicator evenly; 4. Check the Spreader effect to ensure that the thickness meets the requirements.

Notice

Make sure the coating applicator and substrate are clean before use. - Avoid operating in extreme temperatures or Humidity environments; - Spreader the coating applicator in time to prevent Coating residue; - Only suitable for Spreader applications with a specified width and thickness.

wet film thickness
50/100/150/200μm
accuracy
±3μm
application width
150mm
