Overview

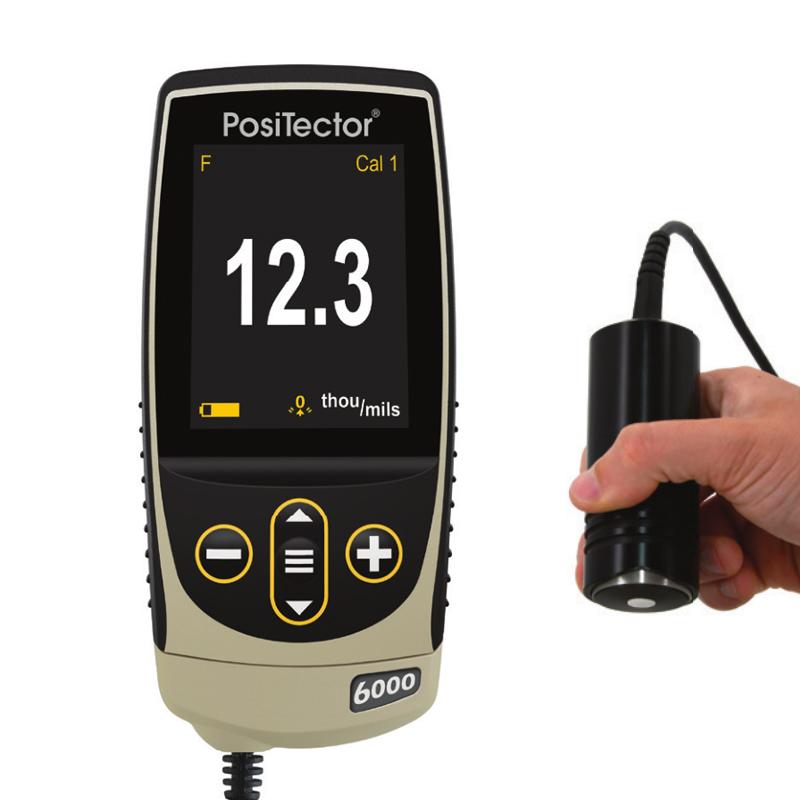

The Defelsko Positector 6000 FJS1 magnetic Coating thickness gauge is a large-scale thickness gauge with a thickness measurement of 2.5cm. The measurement object is the thickness of nonmagnetic coatings on ferrous metal substrates. The Positector 6000 FJS1 magnetic Coating thickness gauge uses a removable FJS Probe for the measurement of thick protective coating substrates on ferrous metals. Ideal for thick epoxy, rubber, expansion fire protection, etc.
Features
1. Large range measurement, thickness up to 2.5cm

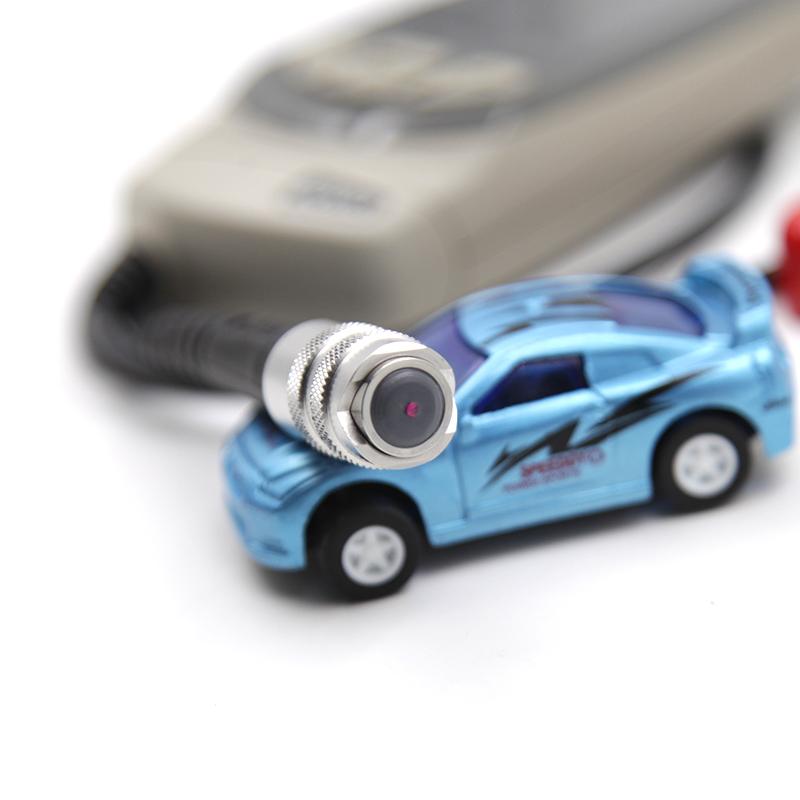

2. Movable FJS Probe
3.2.8-Inch color LCD touch screen
4. Support Chinese and English system languages
5. Data storage function, can store 1000 Measured values
6. Provide statistical functions, including measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
7. Equipped with USB Interface and supporting software
8. Lightweight and portable, weight only 137g (without battery)
Principle
The Positector 6000 FJS1 magnetic Coating thickness gauge works on the principle of magnetic Induction and enables accurate detection by measuring the thickness of nonmagnetic coatings on ferrous metal substrates.
Applications
Thick epoxy, rubber, expansion type fire protection, etc
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 * AAA alkaline battery
2. Select the system language (Chinese or English)
3. Use FJS Probe to contact nonmagnetic coatings on ferrous metal substrates for measurement

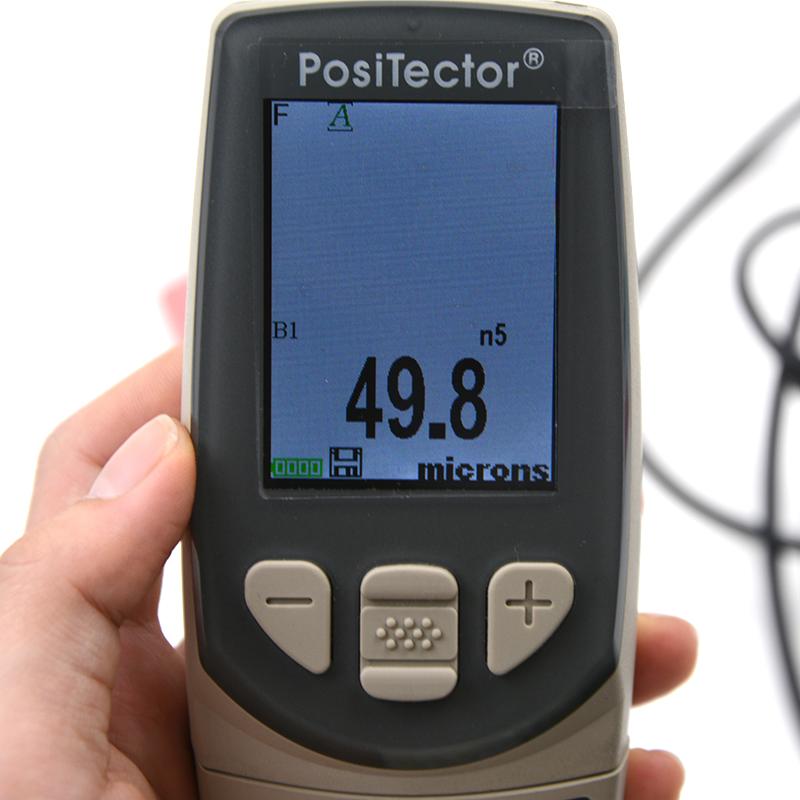

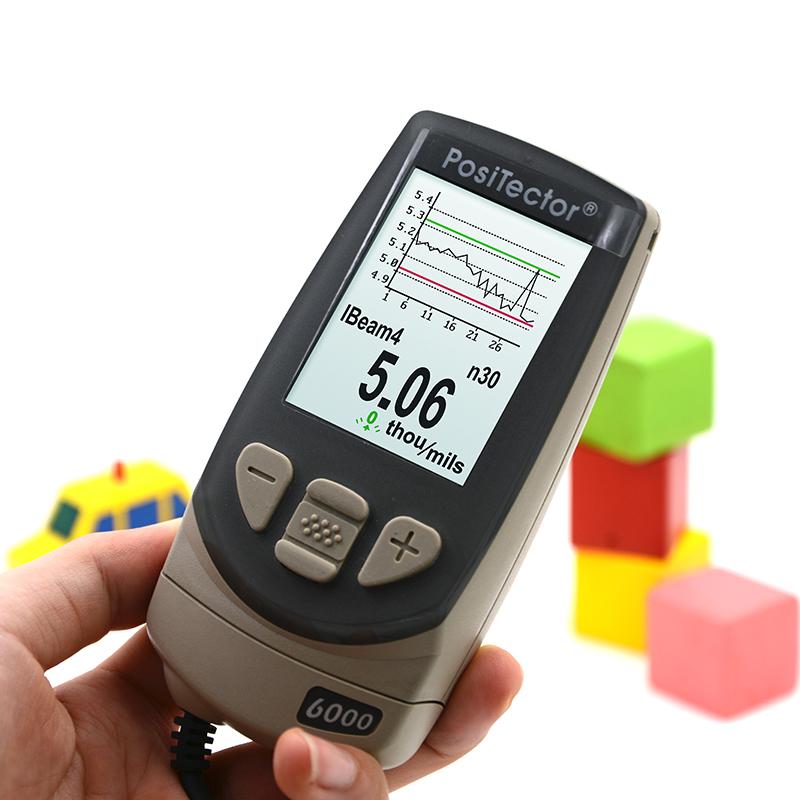

4. View measurement results and statistics through Touchscreen
5. Use the USB interface to connect to the computer and manage the stored measurement data through the supporting software
Notice
• Only for nonmagnetic coating measurements on ferrous metal substrates
• Make sure the battery is fully charged to ensure normal operation
• Before use, it is recommended to refer to the Defelsko calibrated standards STDS2 and STDA2 for calibrating
• Avoid use in extreme environment conditions to avoid affecting Measurement accuracy
