Overview

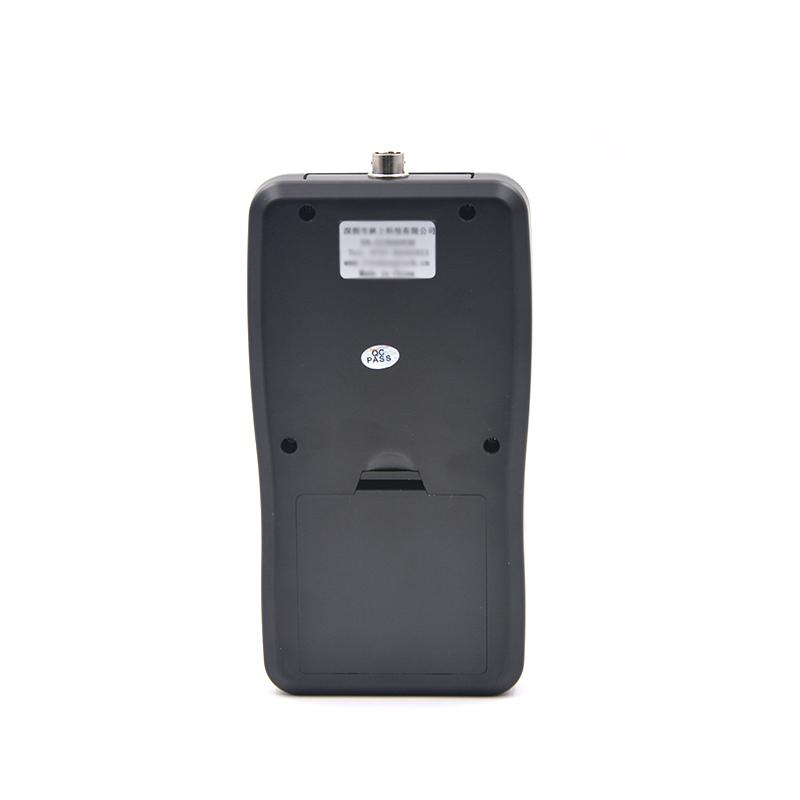

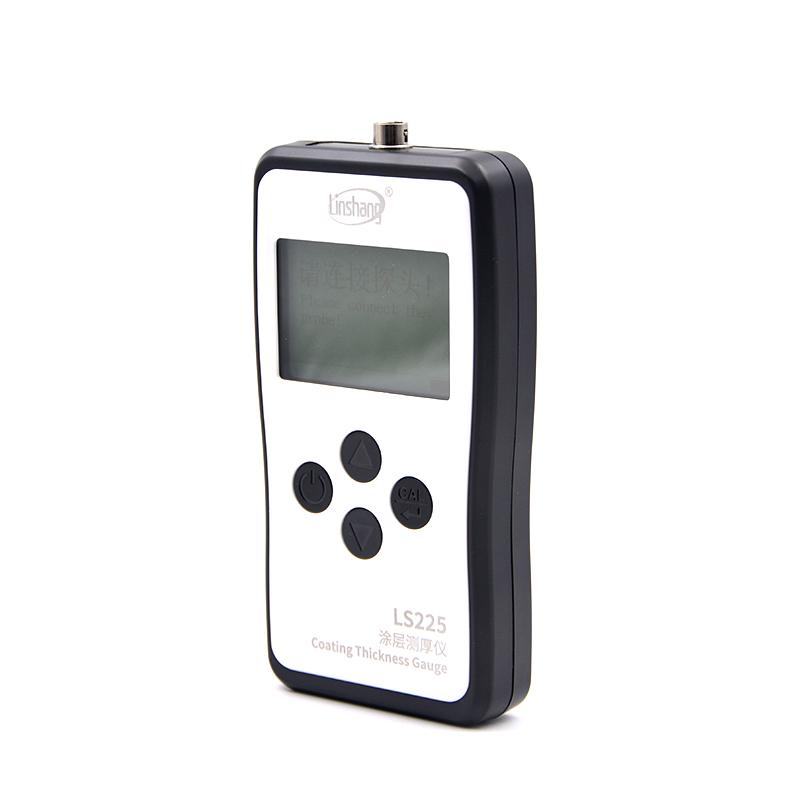

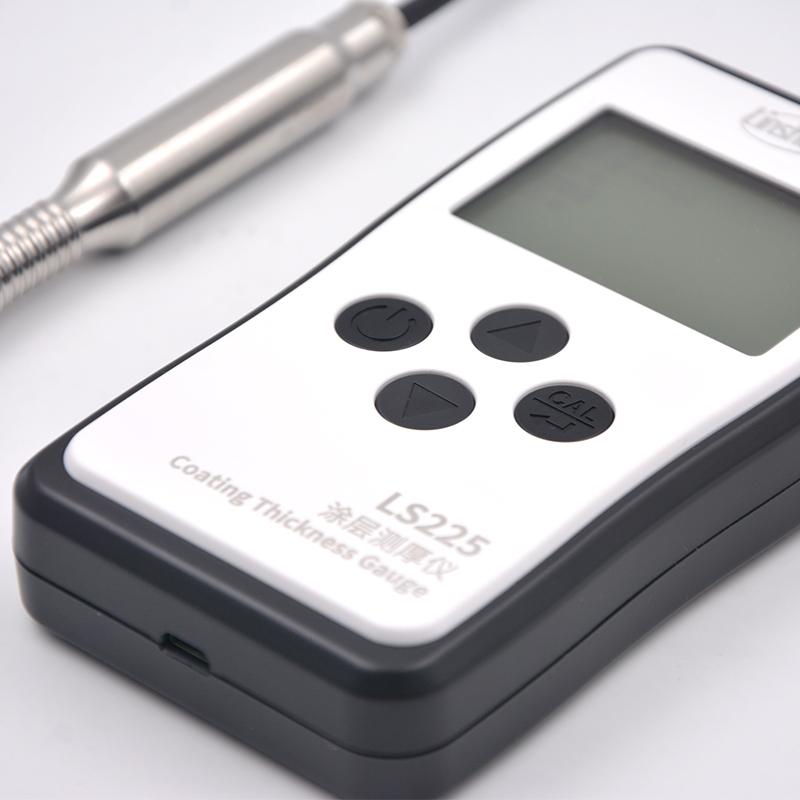

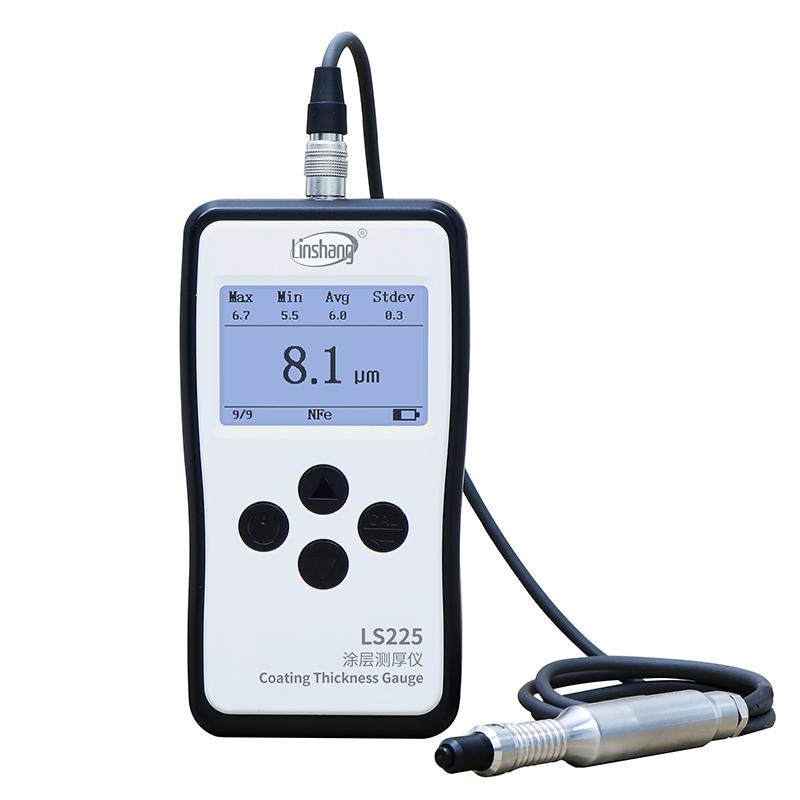

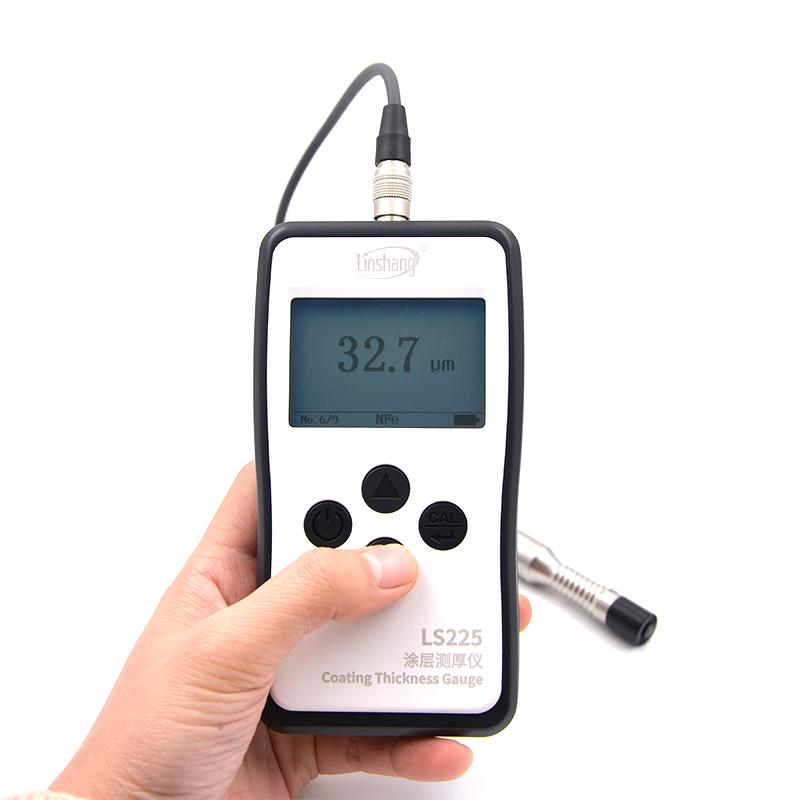

LS225 + N1500 is a split aluminum-based Coating thickness gauge composed of the host LS225 and non-ferrous Probe N1500. The instrument adopts the principle of eddy current induction, with ultra-high Measurement accuracy and Repeatability. The probe probe design is especially suitable for the measurement of ultra-thin coated platings and small-sized workpieces and special-shaped materials. Mainly used for anodic oxidation layer on the surface of aluminum alloy profiles, Aluminum Panels, aluminum-plastic panels and various aluminum workpieces, as well as nonconductive Coating thickness measurement on non-ferrous metal substrates such as brass and copper.
Features
1. Probe probe design, especially suitable for measurement of the thickness of platings on small size and profiled materials
2. Using digital oscillation technology and high-speed ADC acquisition, it can measure ultra-thin coating platings below 10 μm and ensure accurate and stable data
3. Digital Probe is adopted, and the digital signal is processed on Probe, which is not easily disturbed by the external environment and ensures good data Repeatability
4. With ultra-wide range 0-1500μm, Measurement units μm and mil can be switched
5. Purchase special hand pressure testing device rack can eliminate errors caused by human factors, Data Repeatability can reach 0.1μm
6. Support zero adjustment and multi-point calibrating to ensure more accurate data, equipped with special zero adjustment board and standard film
7. With data statistics function, automatically count the MAX Maximum, MIN Minimum, average and variance of the last 9 sets of data
8. Hardness probe and durability design to ensure long service life
9. With automatic shutdown function without operation (can be set for 1-9 minutes), the Chinese and English interfaces can be freely switched
Principle
The instrument adopts eddy current sensing principle for measurement, and detects the thickness of nonconductive platings on non-ferromagnetic metal substrates by eddy Current technology.
Applications
Production inspection, construction acceptance, sales exhibition site, aviation, building materials, machinery, chemical industry, light industry, instrumentation
Standards
GB/T 4956-2003 Thickness measurement of nonmagnetic coatings on magnetic substrates - magnetic method, DIN ENISO2808 Determination of coating and varnish film thickness, JJG-818-2005 Magnetic, eddy Current type coverage thickness measurement instrument verification procedures
Steps
1. Carry out zero point calibrating
2. Perform 1 point to 5 point calibrate
3. Begin measurement of platings thickness
4. Check the statistical results
Notice
• The minimum diameter of the measurement surface is φ 7mm
• Minimum radius of curvature: convex 1.5mm, concave 10mm
• The minimum substrate thickness is 0.05mm.
• Operating temperature range 0~ 50 ℃
• Storage Temperature range -20~ 60 ℃
• The measurement interval is 0.8 seconds
• Powered by 4 1.5V AAA alkaline batteries
