Overview

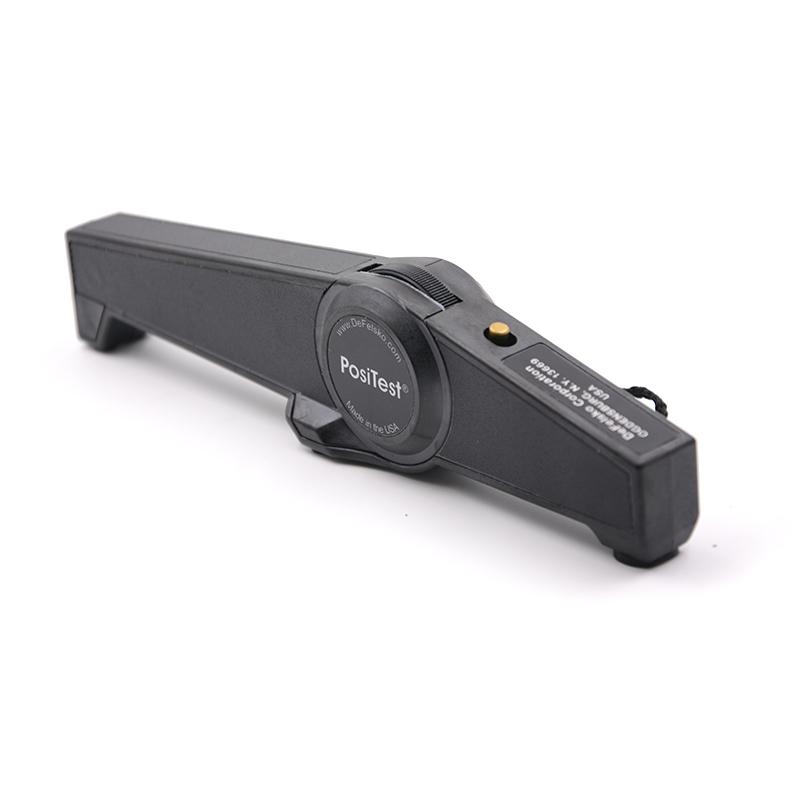

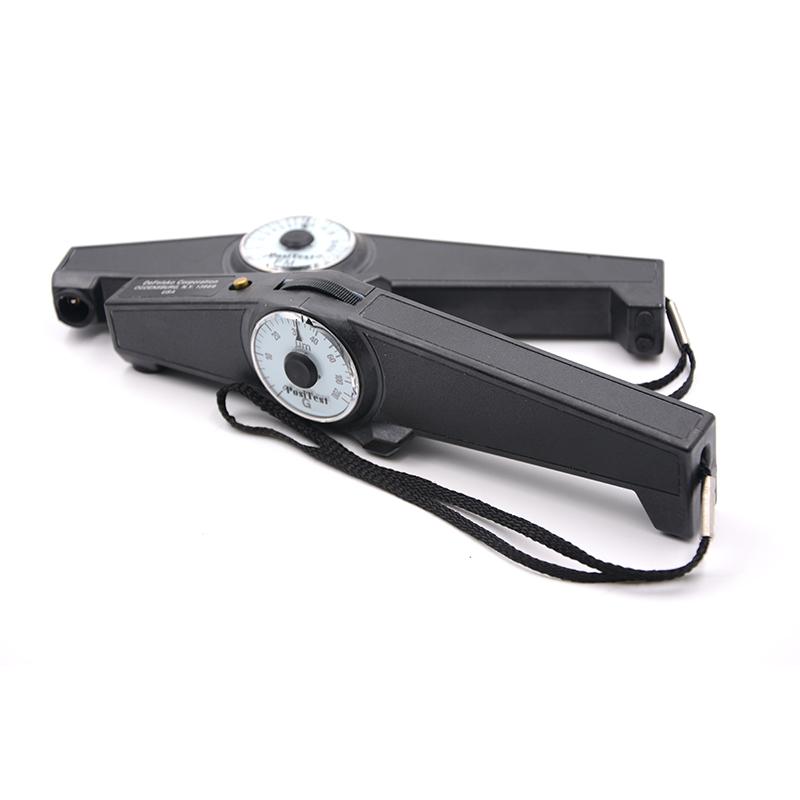

Defelsko PosiTest G Coating thickness gauge is a Dial Coating thickness gauge produced and developed by Defelsko in the United States. It has a simple shape structure and does not require battery power supply. It prompts the completion of measurement through the pointer meter and sound. It is small in size and convenient to carry. PosiTest G Coating thickness gauge is suitable for measurement of nonmagnetic coatings on steel. It is suitable for thickness measurement of phosphating films on Eletroplating, thin paint films, and steel. Measurement range is 0~ 200 microns.
Features
1. Accuracy: Each thickness gauge comes with a calibrated certificate of Traceability to the US IST; each model can be matched with calibration standards and procedures; high wear-resistant cemented carbide Probe is conducive to durability of service life and durability of excellent accuracy; the adjustable center of the dial makes calibration adjustment simple and convenient; in line with international and domestic testing standards
2. Durable: Special textured shell, no fear of mechanical Impact, water, acid or solvent; Unique overall design, full support, forced positioning, no swirl/spin movement possible in the measurement process; Select full support measurement or only Probe contact coating measurement using the front measurement arm can be; Rare earth cobalt magnet durable magnetic, no battery required; explosion-proof, very safe; 1 year guarantee

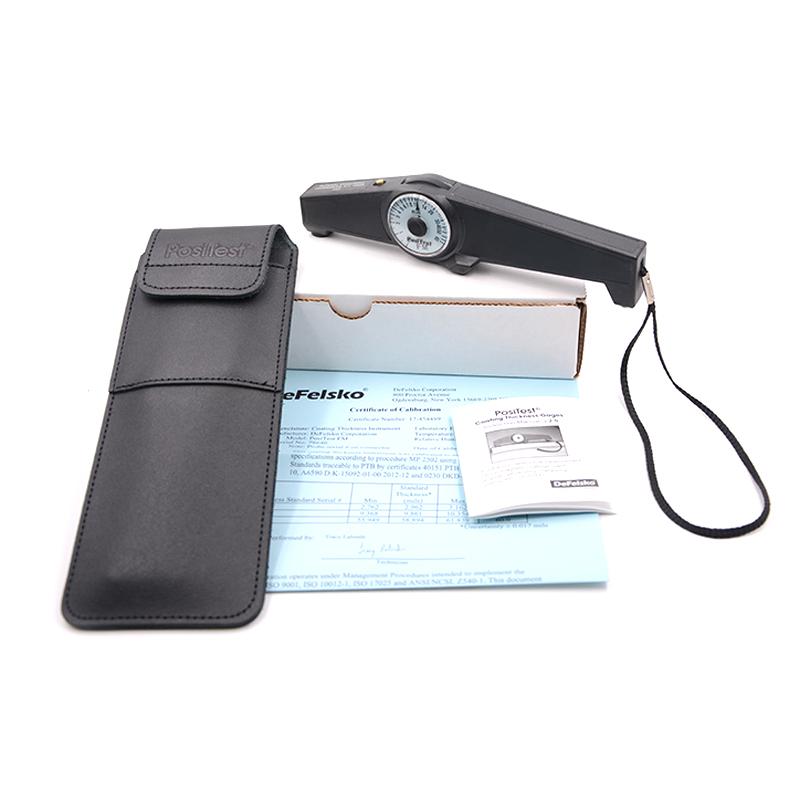

3. Easy to use: with intuitive prompts and sound prompts to remind the measurement is completed; "V" shaped groove Probe housing design and unique instrument base, easy to locate and measurement on cylindrical samples; fine, lightweight, accurate equilibrate, not affected by gravity (gravity), can be used anywhere; GO/NO-GO (start/stop) button can be preset for quick measurement; Probe placement and turntable swirl/spin only need one finger operation; included wristband and instructions are placed in high-quality leather box for backup
Principle
The principle of magnetic Induction is used for measurement, the surface of the coating is contacted by Probe, and the long-lasting magnetic of rare earth cobalt magnets does not require battery power supply.
Applications
Eletroplating, thin paint film, phosphating film on steel measurement
Standards
International and domestic testing standards
Steps
1. Place the Coating thickness gauge vertically on the tested object so that the Probe can contact the surface of the tested object
2. Press the GO/NO-GO button of the PosiTest G Coating thickness gauge (that is, the gold button on the thickness gauge)

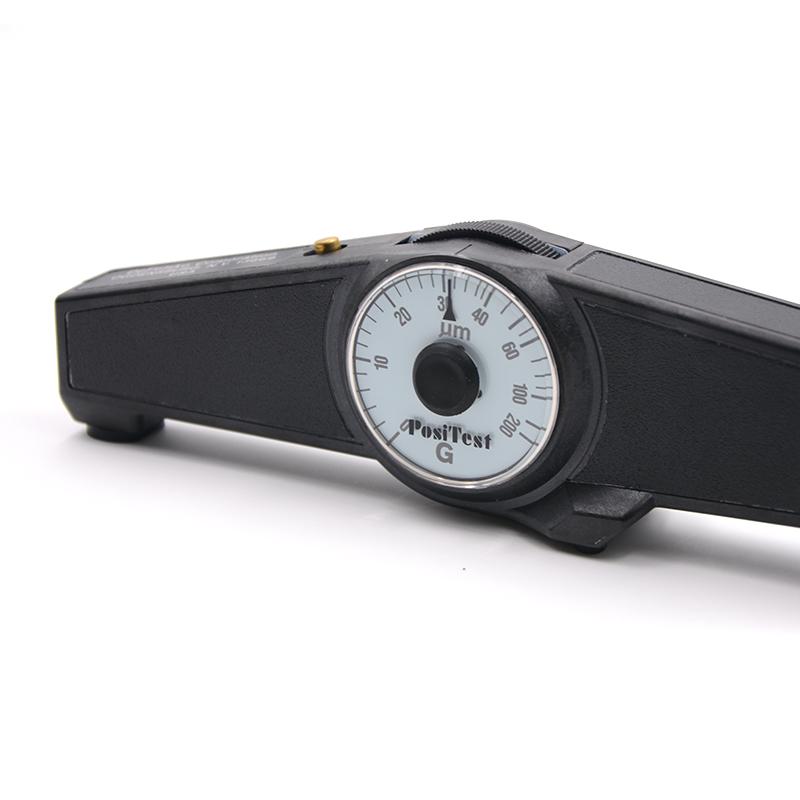

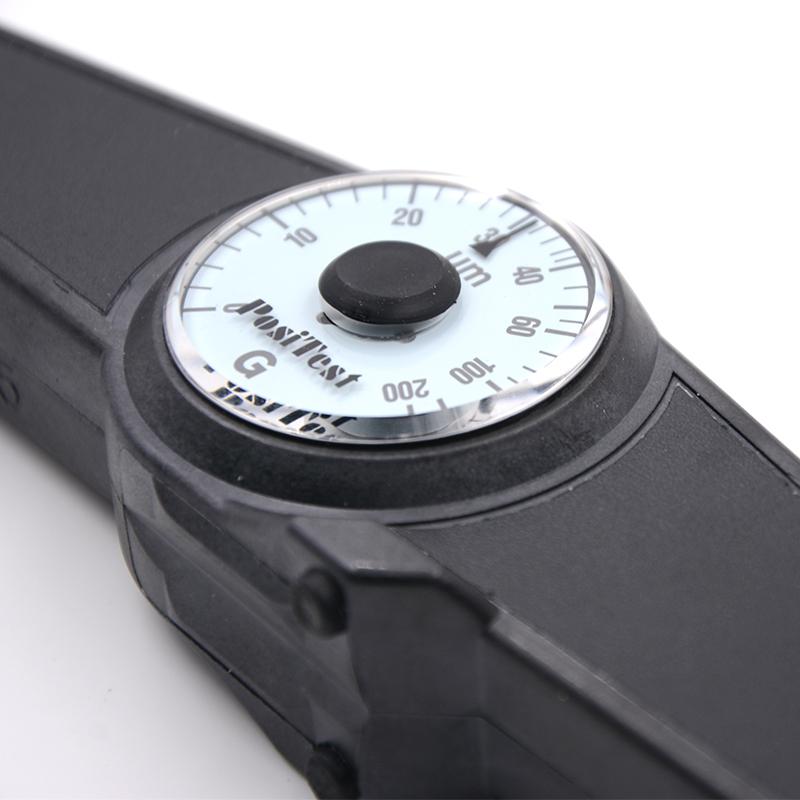

3. Gently wave the runner until you hear a "click". At this time, the thickness indicated by the dial pointer is the thickness of the coating to be measured
Notice
• When measuring, place the instrument vertically on the surface of the measured object
• When operating, gently wave the runner until you hear the prompt tone
Measurement range limit to avoid exceeding the instrument range
