Overview

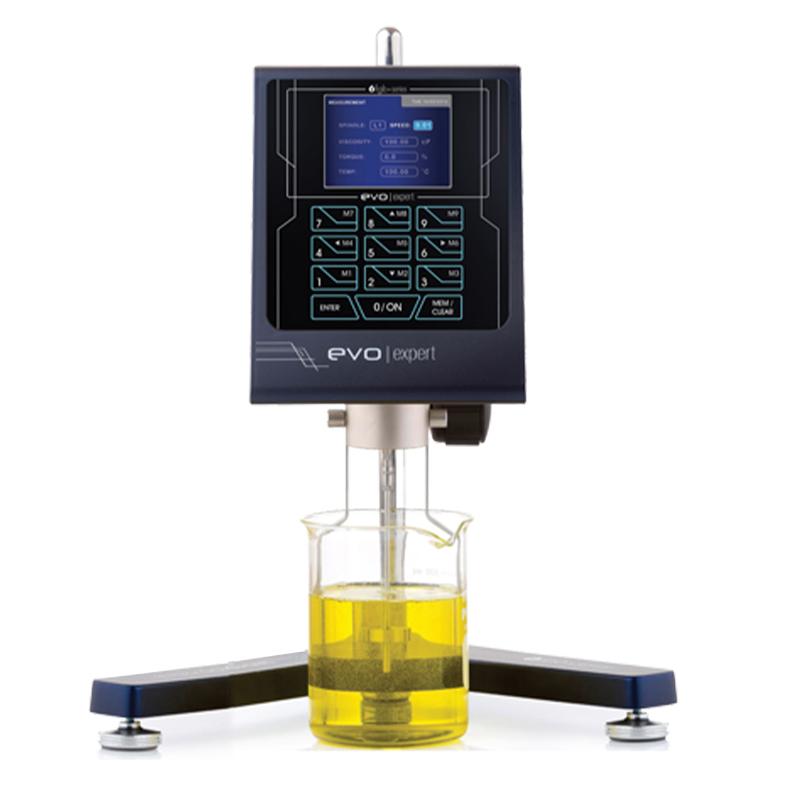

The Fungilab EVO EXPERT L rotational viscometer is a High Accuracy measuring instrument for the measurement of dynamic viscosity and kinematic viscosity, supporting multi-step program measurements and multiple data model analysis. Equipped with a touch display and PT100 temperature probe, it is suitable for a wide range of viscosity and temperature conditions.
Features
1. Rotation speed, viscosity, sample temperature, shear stress, rotor, full scale percentage, shear rate and density
2.Measurement of dynamic viscosity and kinematic viscosity, support unit conversion
3. Support multi-step program measurement, can store 9 programs, provide TTT and TTS Measurement mode
4. Integrate multiple data models such as Bingham, Casson, Power Law, etc
5. With Self-check function and sound and light alarm reminder
6. Automatically calculate the range, support user-defined viscosity and temperature calibrating
7. Available in 10 languages (including Chinese)
8. Equipped with FDB Data analysis software, compliant with FDA 21CFR Section 11
Principle
By swirling/spinning the rotor in the sample, the measurement swirl/spin resistance is converted into viscosity value. Use the PT100 temperature probe to monitor the sample temperature in real time and calculate the kinematic viscosity based on the density value entered by the customer. Shear stress and shear rate need to be displayed with a coaxial rotor.
Applications
Chemical, pharmaceutical, food, petroleum, paint, scientific research laboratories
Standards
FDA 21CFR Section 11
Steps
1. Install rotor and protective legs, connect PT100 temperature probe
2. Turn on the power supply and perform instrument self-test
3. Select or edit measurement program, set Rotation speed and parameters
4. Enter sample density values (e.g. measurement kinematic viscosity)
5. Start measurement, observe data in real time Linear dispersion
6. Use FDB software to record and analyze data
7. Clean the rotor after measurement
Notice
• Shear stress and shear rate need to be matched with a coaxial rotor to display
• The customer needs to enter the sample density value before measuring kinematic viscosity
• Ultra-low viscosity measurement requires an ultra-low viscosity adapter
• Make sure the instrument is placed horizontally, use the 3-level leveling knob to adjust
• Periodically calibrated for Measurement accuracy
• Clean the rotor in time after use to avoid sample residue
