Overview

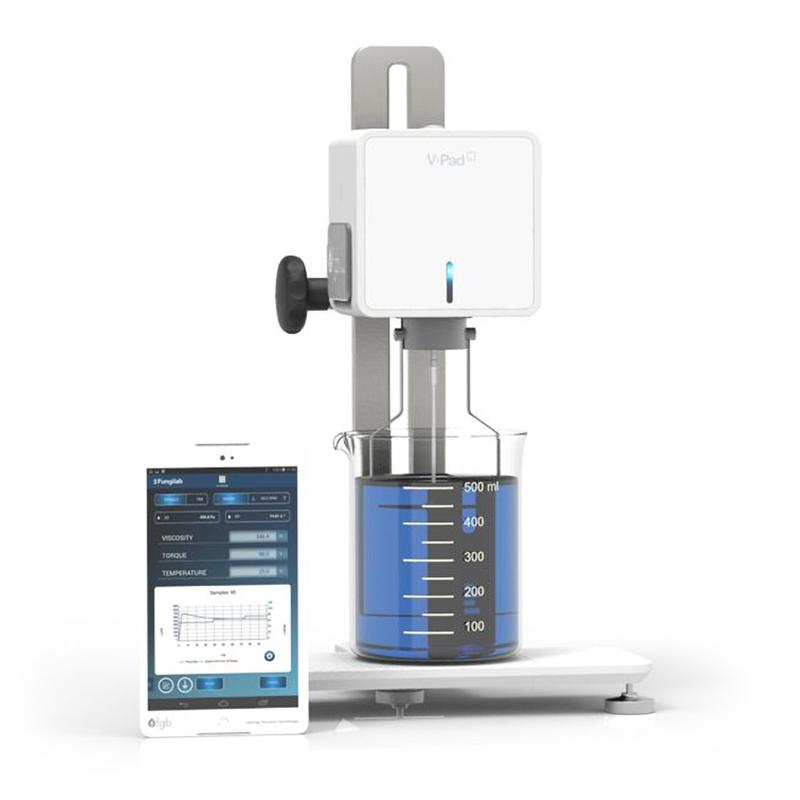

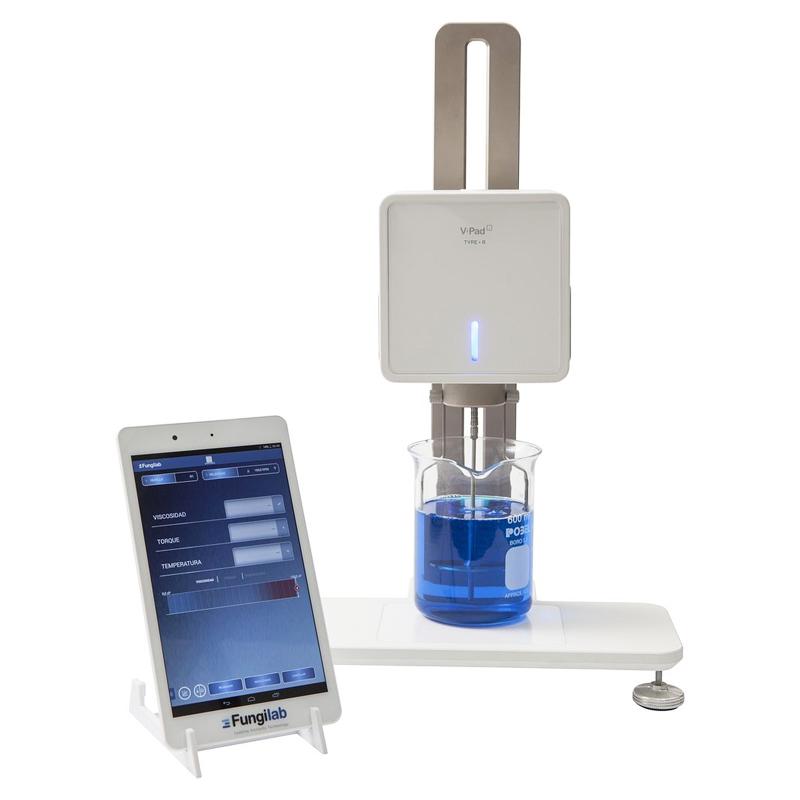

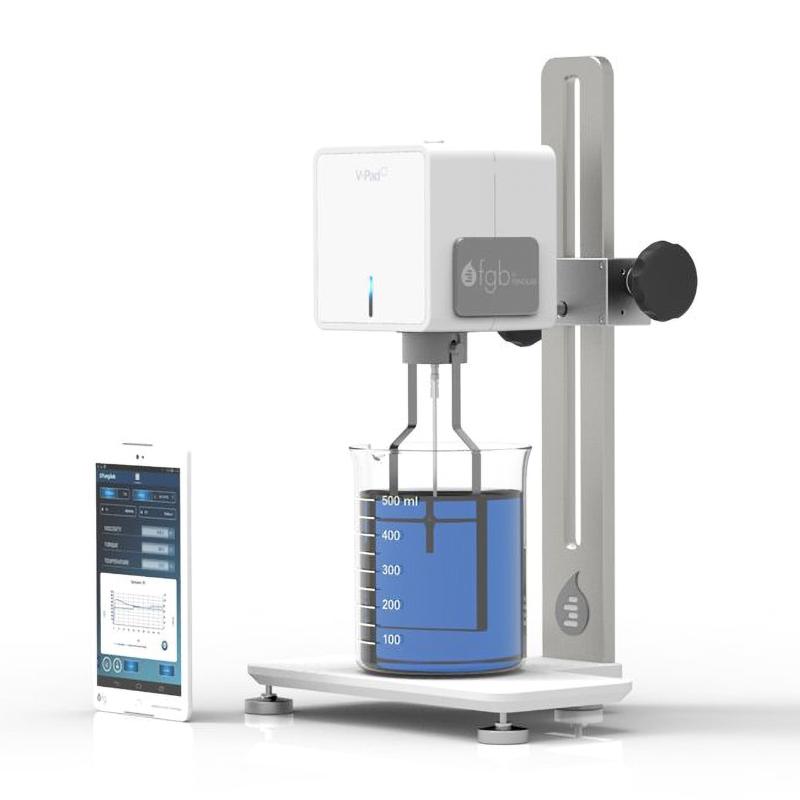

Fungilab V-pad H is a rotational viscometer for accurate measurement of fluid viscosity. Measurement range and multiple display units support programmed measurement and data management for use in laboratory and industrial environments.
Features
1. Multi-Parameter data display including Rotation speed, viscosity, temperature, shear speed and shear stress
2. Support dynamic viscosity and kinematic viscosity measurement
3. Programmable Multi-Step Measurement mode, supports TTT and TTS stop conditions
4. Data storage and mass Detection line alarm function
5. Rotation speed and measurement Linear dispersion coordinates
6. Self-check function and sound and light alarm
7. Automatic range calculation function
8. Support 8-inch tablet control
9. Multi-language options
10. Data can be exported to PDF and CSV formats
Principle
Viscosity values are determined by measurement of fluid resistance by the shear force generated by the swirl/spin of the rotor in the sample. When the coaxial rotor L2C + L3C is matched, shear stress and shear rate parameters can be displayed.
Applications
Laboratory research, Industrial quality control, Chemical production, Food processing, Pharmaceutical industry, Petrochemicals
Steps
1. Choose the right rotor and Rotation speed combination
2. Enter the sample density value (for kinematic viscosity measurement)
3. Set measurement program parameters
4. Start the measurement program
5. Monitor real-time data graphs
6. Export the test report
Notice
• Shear stress and shear rate displayed only when using coaxial rotor L2C + L3C
• Input the sample density value in advance before kinematic viscosity measurement
• R-1 Rotator Recommended 60rpm Rotation speed to ensure measurement Stability
• Viscosity calibrate will be reset to factory calibrate
• Accessories such as small sample adapter and low viscosity adapter can be selected according to needs
