Overview

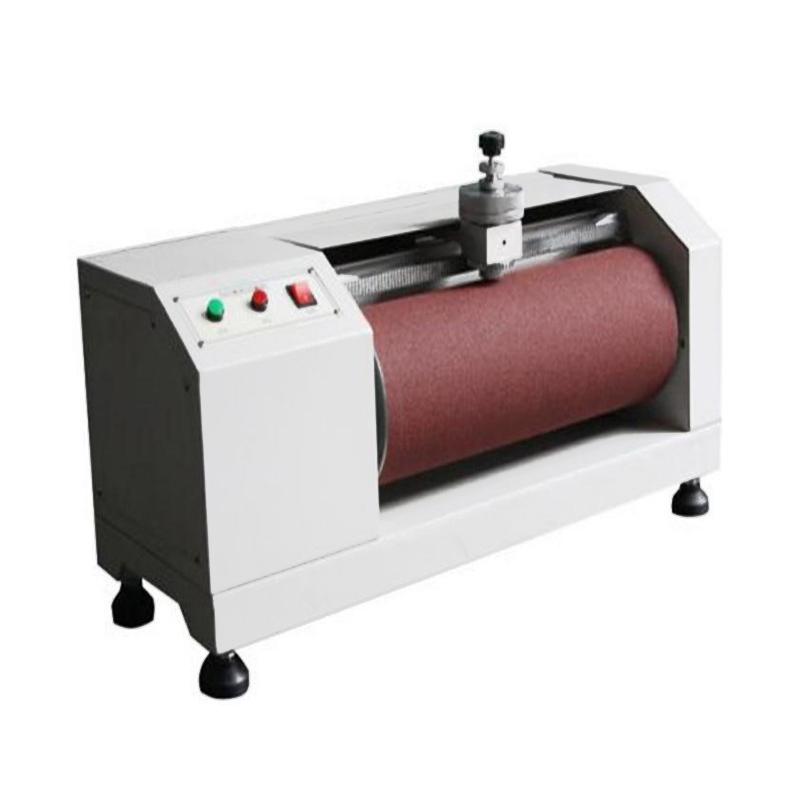

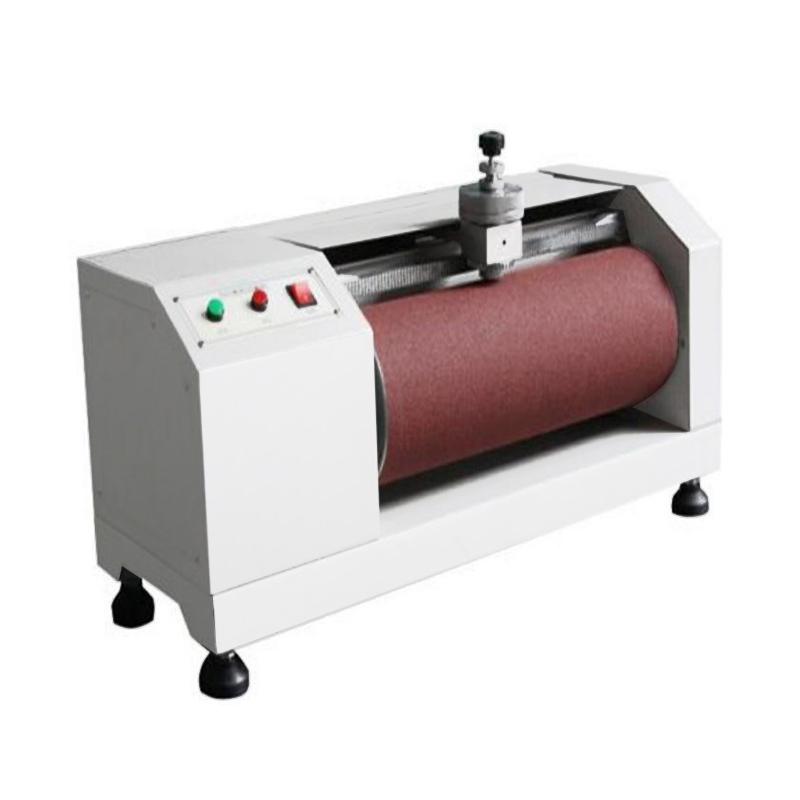

HUITAO CSI-252 DIN Wear resistance tester is suitable for abrasion testing of resilience materials, rubber, tires, conveyor belts, soles, soft synthetic leather, leather and other materials, with high efficiency, good reproducibility and easy operation.
Features
1. Suitable for a variety of resilience materials and leather goods
2. Good reproducibility
3. Simple and easy operation
4. Comply with relevant electrical safety standards
Principle
By setting abrasion Travel, speed and tilt angle, the testing machine performs reciprocating abrasion test on the sample under a specific test load, and the lateral displacement of the fixture realizes uniform abrasion, simulating the abrasion situation in actual use.
Applications
Resilience materials, rubber, tires, conveyor belts, soles, soft synthetic leather, leather
Standards
BS EN 50081-1、BS EN50082-1、EN 61010-1:2001
Steps
1. Place the instrument in the standard operating environment
2. Prepare specimens with a diameter of φ 16mm and a thickness of 6~ 15mm
3. Set the test load to 5N or 10N
4. Set abrasion Travel 40mm (20mm), abrasion speed 0.32m/sec, tilt angle 3 °
5. Start test for abrasion test
Notice
• Operating environment altitude should be < 2000m
• Temperature range 13~ 30 ℃, relative humidity 25~ 75%
Temperature range 10~ 43 ℃, relative humidity 20~ 80%
• power requirements: 1, AC220V, 3A
• Installation category I, pollution level 1
• Instruments for use in residential, commercial and light industrial environments only
