RDS 45# 1/4 Formed Coating Rod Wire-Wound Applicator, 102.9μm Wet Film Thickness, Stainless Steel Material

Name: RDS 45# 1/4 Formed Coating Rod Wire-Wound Applicator, 102.9μm Wet Film Thickness, Stainless Steel Material
Brand: RDS
SKU: NB000036
Price: 158.0 USD
Availability: PreOrder

$ 158.00Ex works

Manufactured using an extrusion process, with a wet film thickness of 102.9 μm and a diaMeter of 6.35 mm, it is easy to clean and suitable for high-viscosity or high-wear environments, ensuring uniform coating application.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB000036

Service :The delivery and service By NBCLab.Com

Overview

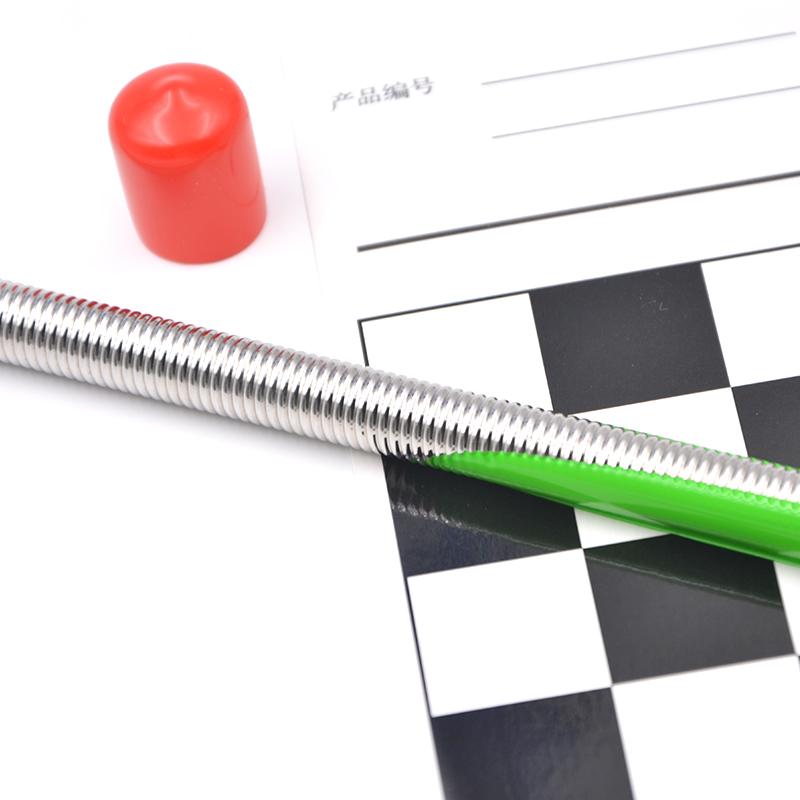

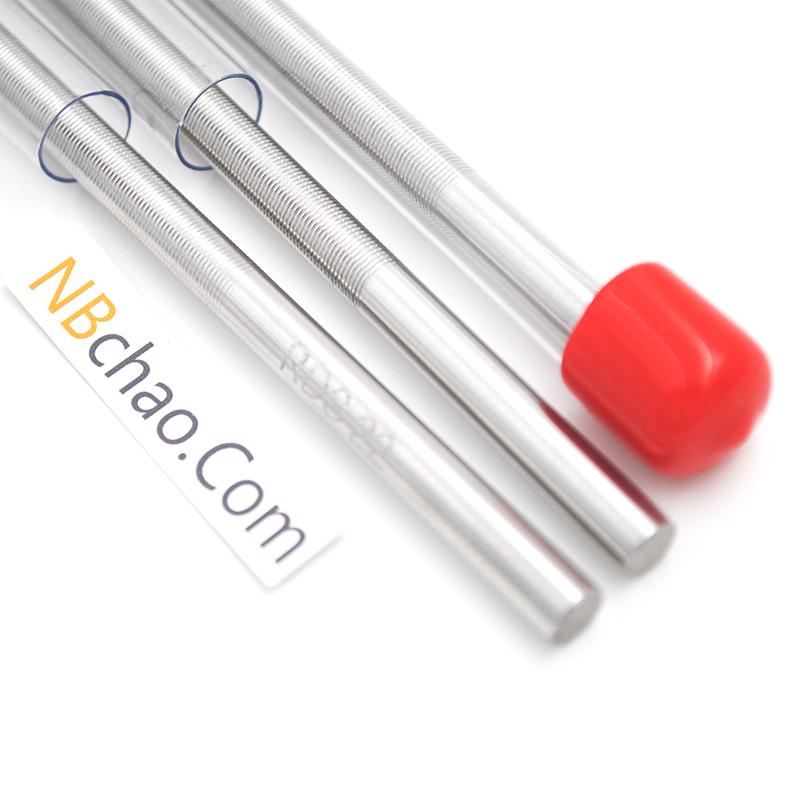

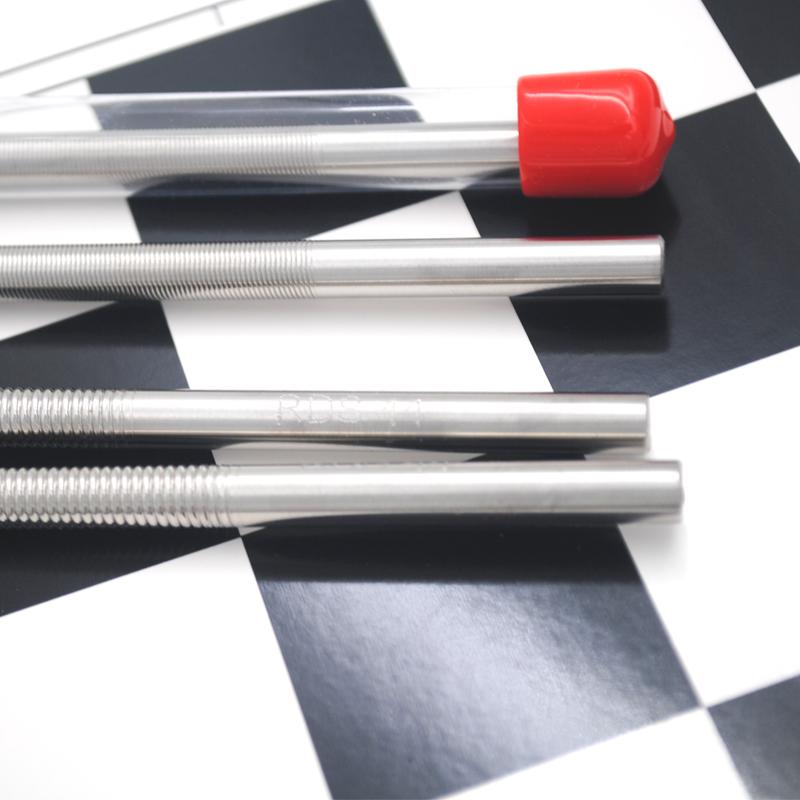

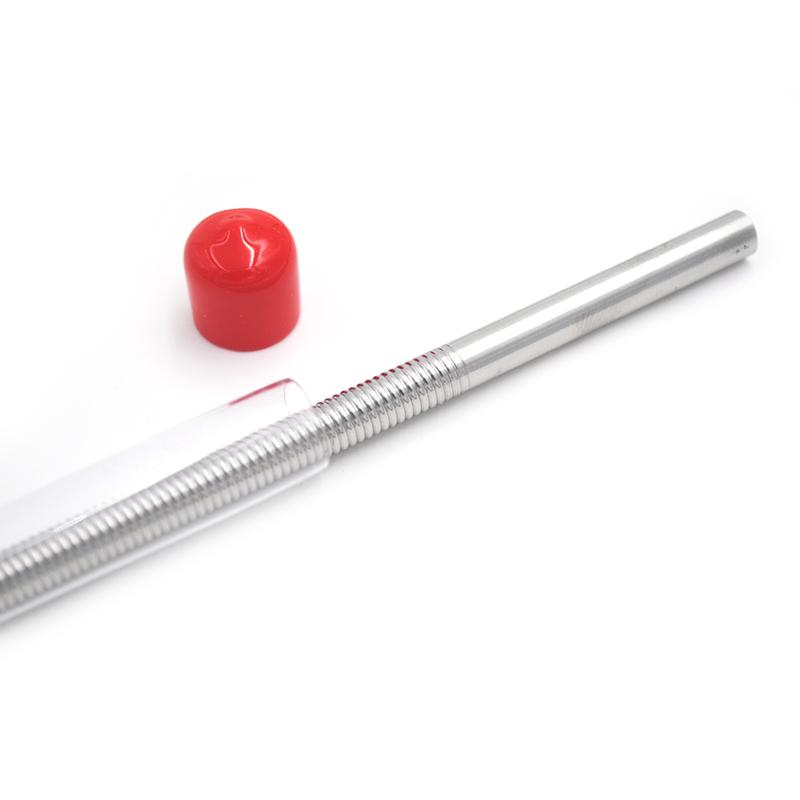

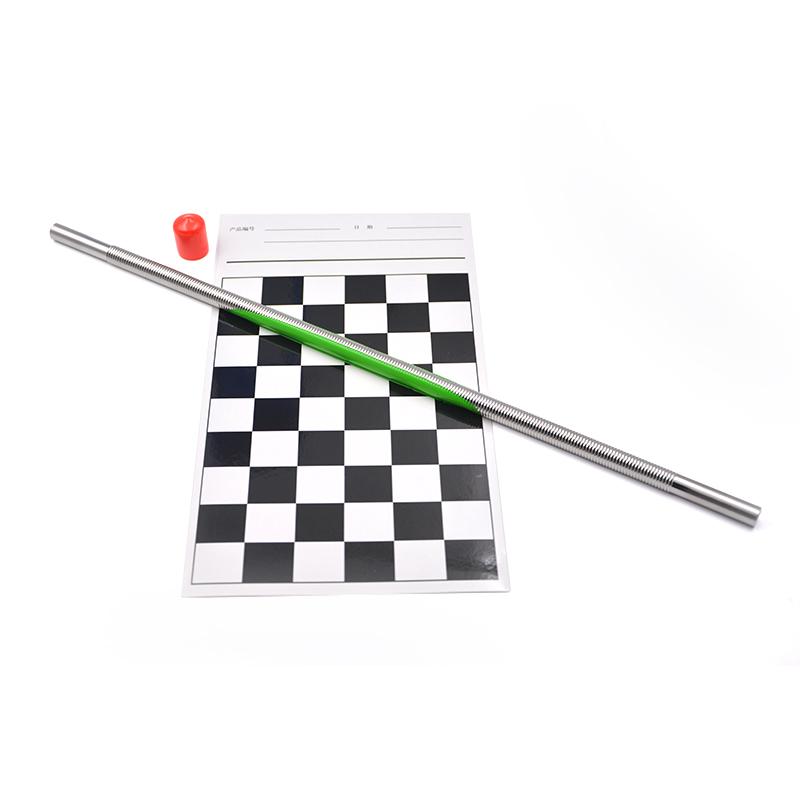

RDS #45 Mayer Rods is a forming process Mayer Rods with a diameter of 1/4 inch (6.35mm) and a film thickness of 102.9μm. The product inherits the advantages of the RDS wire-wound coating rod made of austenitic stainless steel and capable of preparing a 0.1 μm film thickness High Accuracy. The formed coating rod is developed by special processing technology without winding the steel wire. The wet film thickness is determined by the size of the U-shaped groove of the coating rod. It is not only easy to clean, but also suitable for applications such as high inks viscosity or high abrasion experiments.

Features

1. Adopt a molding process without winding a steel wire 2. Use austenitic stainless steel material, durable and high accuracy 3. The wet film thickness is accurately determined by the size of the U-shaped groove 4. Easy to clean 5. Suitable for high viscosity inks or high abrasion test occasions

Principle

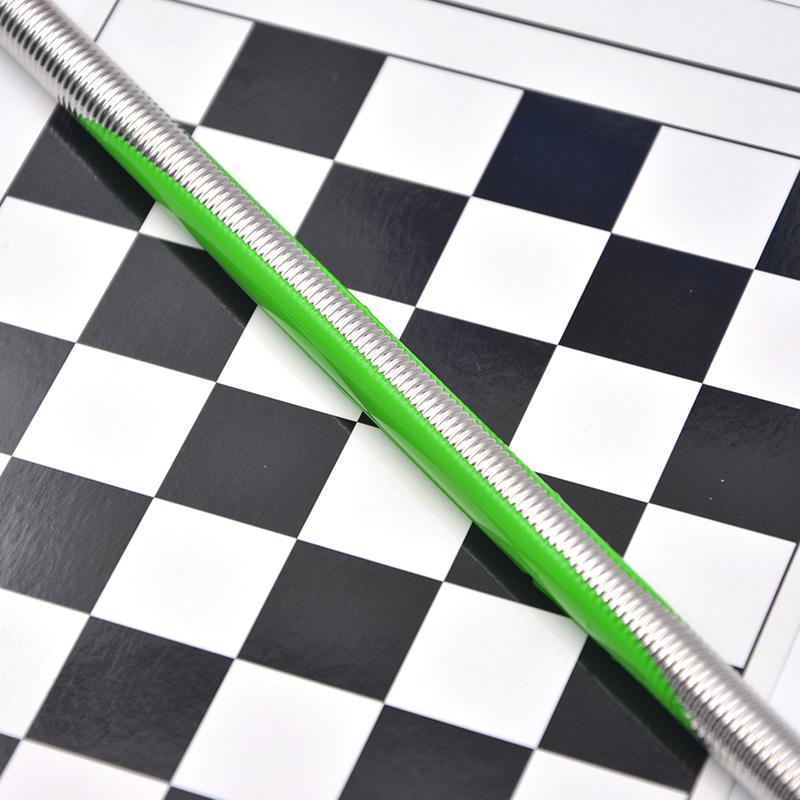

The RDS molded coating rod is made by special extrusion processing technology, and the wet film thickness is determined by the size of the U-shaped groove of the coating rod. When used, the coating rod rolls on the substrate, and the coating in the U-shaped groove is uniformly Spreader to form a wet-film of the specified thickness.

Applications

High viscosity inks Spreader, high abrasion test

Steps

1. Prepare coating rod and Spreader material 2. Coating into the U-shaped groove of the coating rod 3. Uniform rolling coating rod on the surface of the substrate 4. Clean the coating rod in time after completing the Spreader

Notice

• Coating rod should be cleaned in time after use to avoid drying • Suitable for high viscosity inks and high abrasion experiments • Spreader thickness is determined by the size of the U-shaped groove, please choose the appropriate model according to your needs • Ensure uniform Spreader during operation to avoid inconsistent thickness

process
Forming Type
wet film thickness
102.9μm
rod diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
