Overview

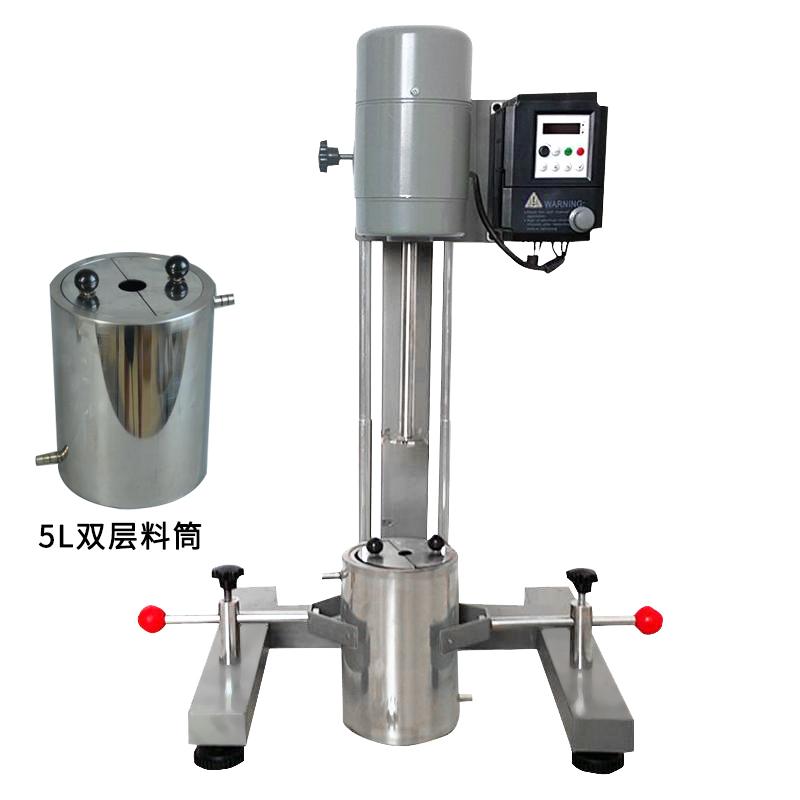

JFS-750 test multi-purpose Disperser is a new type of environmental protection laboratory equipment designed and developed by QIWEI brand with new technology, which integrates stirring, grinding and dispersing functions. The equipment adopts variable frequency motor, which has the advantages of small size, low noise, no commutation interference, no carbon brush mechanical abrasion, etc. The number directly displays the rotating shaft Rotation speed, and is equipped with a dispersing impeller and a grinding blade, which can adapt to different experimental needs and provide correct data for large-scale production.
Features
1. Adopt spring lifting system, easy to lift
2. Adopt a new type of variable frequency motor and realize stepless speed regulation through smart variable frequency controller
3. Application of digital PID technology, high control accuracy, 4 digital tube directly display spindle Rotation speed
4. Disperse impeller and sand grinding blades are directly connected to the shaft with screws
5. The barrel is fixed by the left and right grippers, and the cylinder body adopts a jacket structure, which can be processed from stainless steel by chilling down water
Principle
This equipment drives the rotating shaft swirl/spin through the frequency conversion motor, adopts the smart frequency conversion controller to realize stepless speed regulation, and the digital PID technology ensures High Accuracy control. The dispersion impeller and the sand grinding blades are directly connected to the rotating shaft, and the material is stirred, dispersed and ground by swirl/spin. The jacketed barrel can control the temperature through chilled down water.
Applications
Laboratory experiments, material dispersion, sand grinding, mixing and mixing
Steps
1. Fix the cartridge on the left and right grippers
2. Install dispersed impeller or sand grinding disc as needed
3. Rotation speed by variable frequency controller
4. Start the equipment for mixing, dispersing or sanding operations
5. Turn off the equipment and clean the parts after the operation is completed
Notice
• Power supply voltage 220V 50HZ before use
• Speed range is within 60~ 8000rpm
• Regularly check whether the connection between the impeller and the grinding disc is firm
• The barrel should be fixed to ensure stability and avoid loosening during operation
• Pay attention to the smooth water chilling down when using the jacketed barrel
