Overview

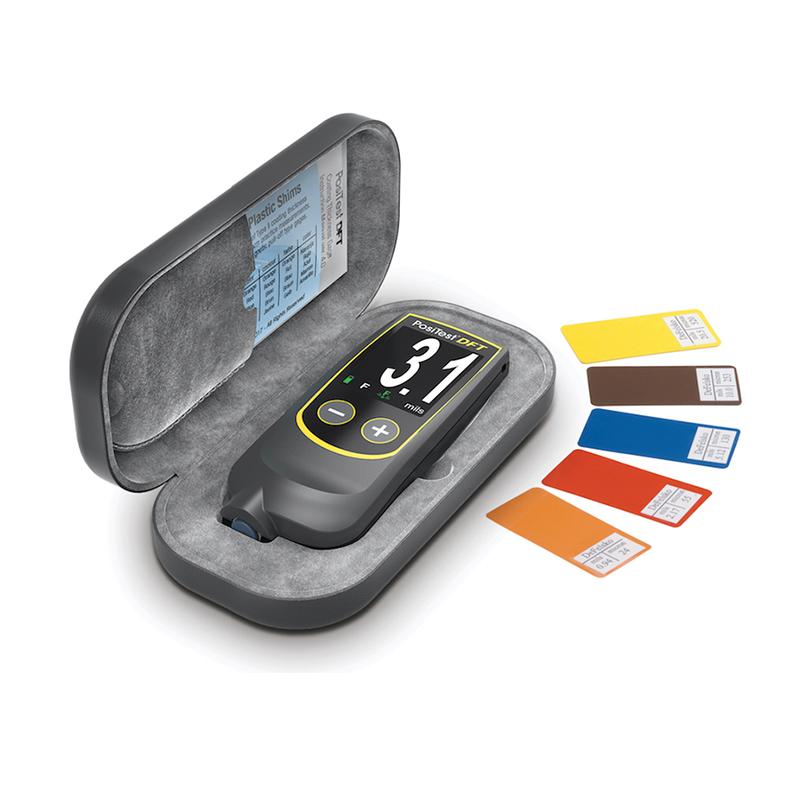

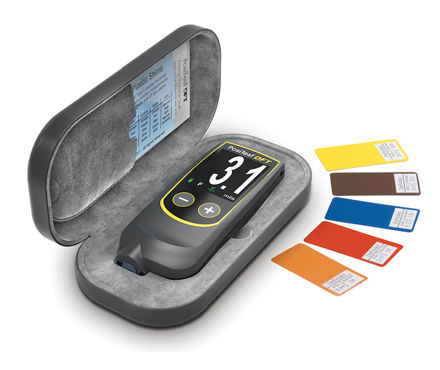

The Defelsko PosiTest DFT Combo Coating thickness gauge is a dual-function thickness gauge with built-in Ruby Probe, with automatic identification of different substrates, high measurement Sensitivity and Abrasion Resistance. The unique Probe design is especially suitable for thickness measurement of cylindrical parts. Measurement range 0~ 1000 microns, suitable for magnetic substrates and nonmagnetic substrates.
Features
1. Test Fast and Repeatability
2. No need to calibrate most measurements
3. Zero-point calibrated feature, which is conducive to rough surface or curved surface sample testing
4. Convenient RESET reset feature that performs well without a reference board
5. Ruby Probe with strong wear resistance
6. Audio and visual measurement indication
7. Unique V-groove Probe design meets the positioning measurement of cylindrical parts
8. Mil/micron/mm unit can be switched freely
9. Coating thickness gauge with basic instructions
Principle
Using magnetic Induction + eddy Current Measurement principle, different types of metal substrates can be automatically identified and measured.
Applications
Powder lame plating lines, painting equipment, coating inspectors, painting plants, automotive repair, other industrial applications
Standards
ISO 2178/2360/2808、prEN ISO 19840、ASTM B244/B499/B659/D1186/D1400/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Automatic identification of substrate type
2. Zero point calibrating (suitable for rough or curved surfaces)
3. Probe positioning measurement with V-groove
4. Read the display measurement results
5. Reset by RESET function
Notice
• Make sure the battery is fully charged before use
• Keep Probe in vertical contact with the surface during measurement
• Regularly use standard sheets to verify instrument accuracy
• Avoid severe impact on Probe
• Zero Adjustment is recommended for measurement on rough or curved samples
