OSP-5/250 coating Rod thread coating bar formed film wet film thickness 5μm

Name: OSP-5/250 coating Rod thread coating bar formed film wet film thickness 5μm
Brand: OSP
SKU: NB003708
Price: 155.0 USD
Availability: InStock

$ 155.00Ex works

The formed process is used to form a continuous groove to control the wet film thickness, the wet film thickness is 5 μm, the application width is 250mm, and the workmanship is fine and the environmental protection Encasement.

Model

Get Quote

Category : Coating Rod

Brand : OSP

SKU : NB003708

Service :The delivery and service By NBCLab.Com

Overview

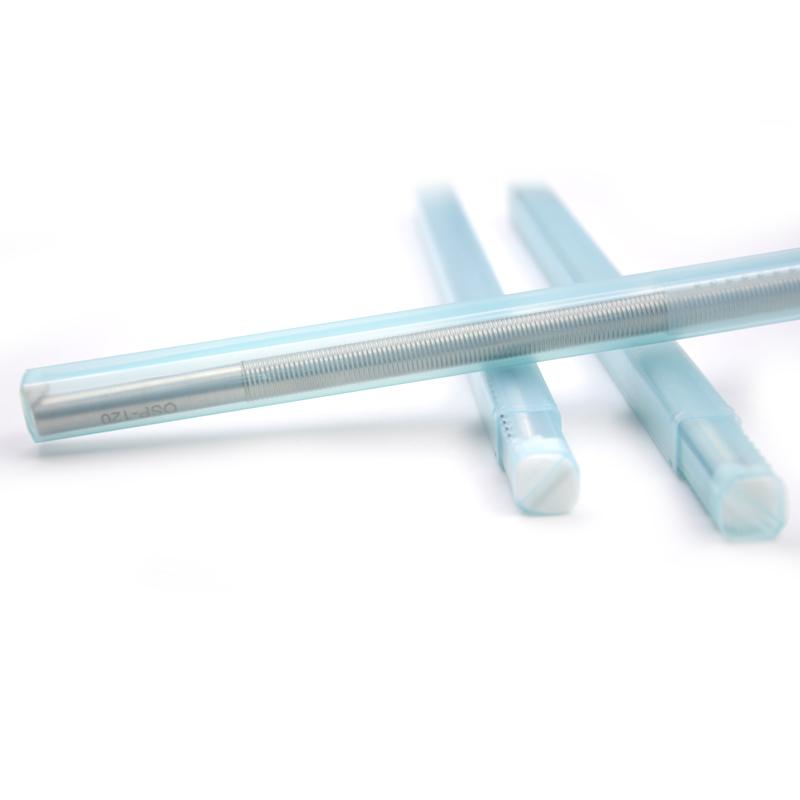

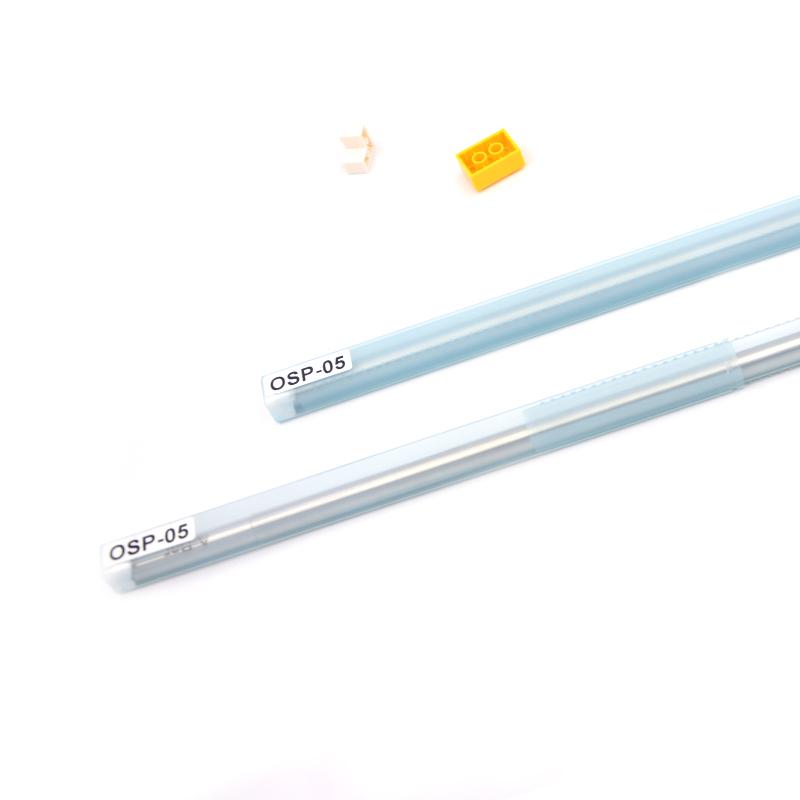

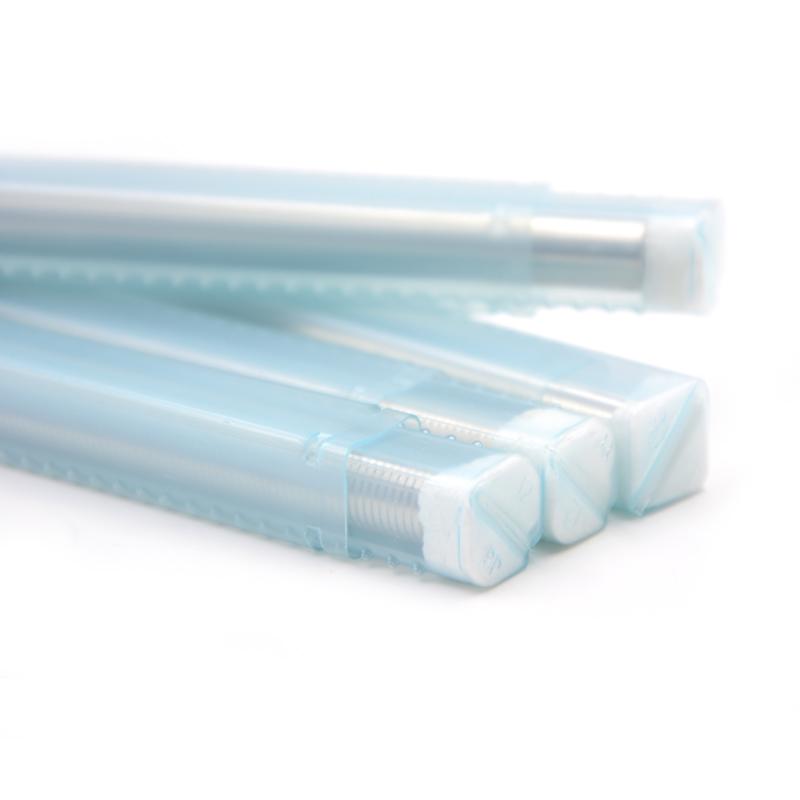

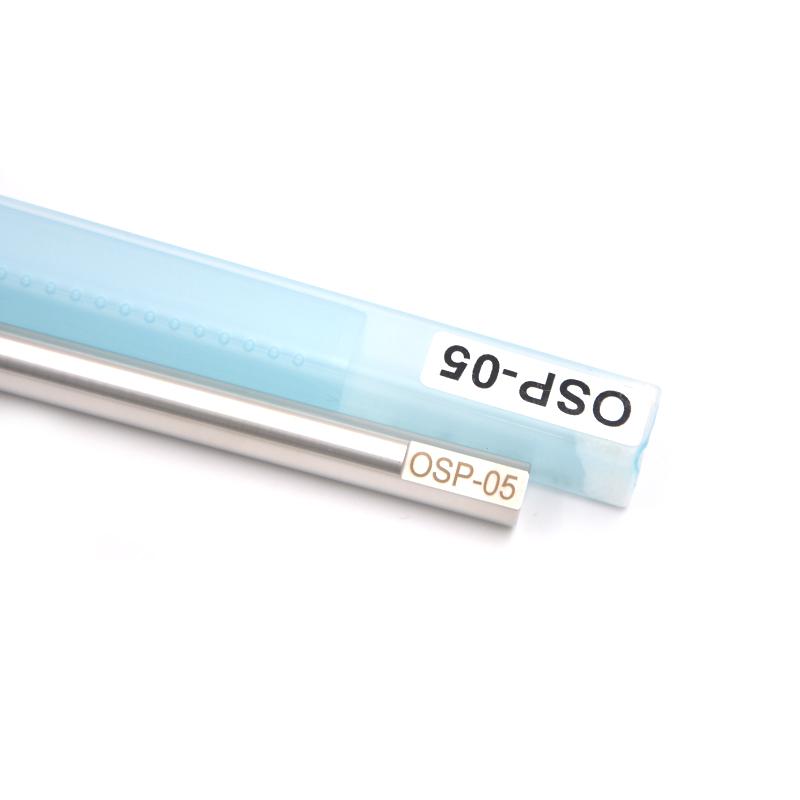

Japan OSP-05/250 thread coating bar is a coating rod with formed process. 304 stainless steel bars are processed by special cold extrusion process to form continuous grooves, and the size of the grooves is precisely controlled by wet film thickness. The product has fine workmanship and adopts environmentally friendly plastic shell Encasement. The wet film thickness is 5μm and the application width is 250mm.

Features

1. Manufactured by a special cold extrusion process 2. With continuous groove design, the wet film thickness is controlled by the groove size 3. Fine workmanship and excellent quality 4. Encasement with environmentally friendly plastic shell 5.304 stainless steel material, strong durability

Principle

The OSP-05/250 threaded coating bar forms a continuous groove on the surface of the steel rod through a cold extrusion process. Coating fills the groove during Spreader, and precisely controls the wet film thickness to 5 μm through the size of the groove to achieve a uniform Spreader effect.

Applications

Spreader, film

Standards

Environmental Encasement Standard

Steps

1. Spreader substrate 2. Coating evenly on the surface of the substrate 3. Use OSP-05/250 thread coating bar to scrape smoothly along the surface of the substrate 4. Ensure that the coating bar groove is consistent with the Spreader direction 5. Clean coating bar after finishing Spreader

Notice

• Please check whether the surface of the coating bar is intact before use • Spreader should maintain a steady and uniform force • Clean immediately after use to avoid Coating residues • Please keep the drying environment when storing • Avoid collision with hard objects to prevent groove damage

Production process
formed
wet film thickness
5μm
rod diameter
10mm
Total length
250mm
application width
250mm
Grip Width
0
material
304 stainless steel
