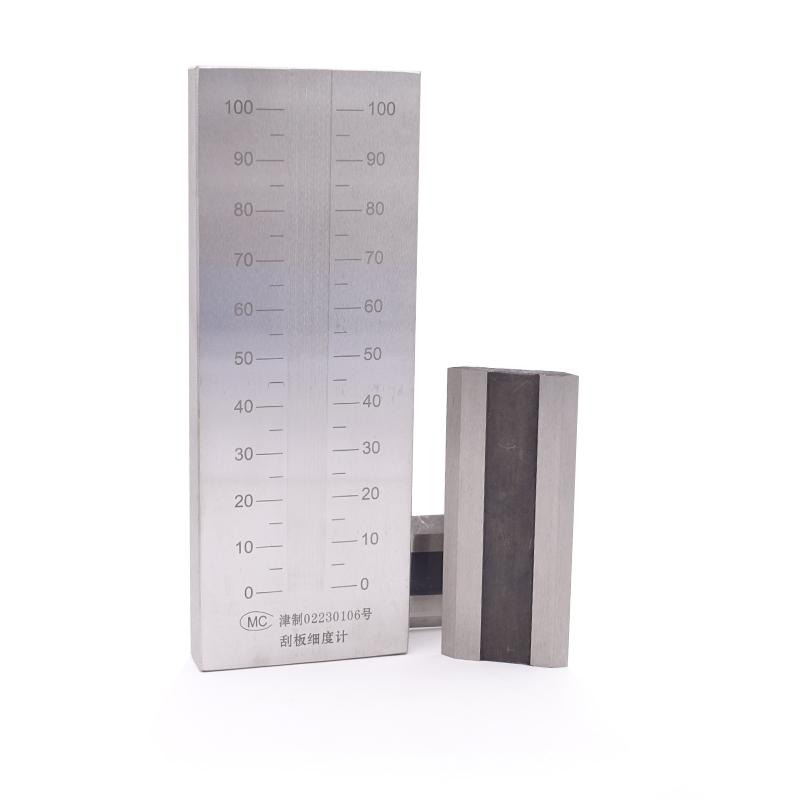

JINGKELIAN QXP 50-150 ISO single-channe GrindoMeter Stainless Steel Graduation 10µm

Name: JINGKELIAN QXP 50-150 ISO single-channe GrindoMeter Stainless Steel Graduation 10µm
Brand: JingKeLian
SKU: NB037186
Price: 216.0 USD
Availability: InStock

$ 216.00Ex works

Made of stainless steel, Graduation 10 µm, range 50~ 150 μm, surface roughness Ra1.6, the front of the scraper can be used for daily inspection of the straightness of the drawdown blade.

Model

Get Quote

Category : Fineness Gauge

Brand : JingKeLian

SKU : NB037186

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN QXP 50-150 ISO single-channe Grindometer is manufactured in accordance with the relevant provisions of international standard ISO1524-1983 (E) for the determination of particle fineness of Paints and related products. The product is a single-channe type Grindometer with a range of 50-150 μm, scale unit is μm, Graduation is 10 µm.

Features

1. Made of stainless steel, the scraper size is 175 * 65 * 13mm, the groove size is 140 * 12.5mm, and the drawdown blade size is 90 * 40 * 6mm; Production in accordance with international standards ISO1524-1983 (E) to ensure measurement accuracy; 3. Single-channe design, suitable for particle fineness determination of Paints and related products.

Principle

Spreader the sample by Grindometer having a precise scale of the groove, using a drawdown blade scraped flat, observe the distribution of particles on the scale, thereby determining the particle fineness of Paints and related products.

Applications

Determination of particle fineness of Paints and related products

Standards

ISO1524-1983(E)

Notice

• The front of the scraper can be used for daily inspection of the straightness of the drawdown blade; • Wash the drawdown blade after use, apply anti-rust oil and store it in the box; • The front of the scraper and the edge of the drawdown blade must not be bumped; • Grindometer should be inspected once after one year of use.

Scraper Type
single-channe
Range
50~150μm
Scale unit
μm
Graduation
10µm
Scraper material
stainless steel
Scraper Size
175*65*13mm
Groove Size
140*12.5mm
Drawdown blade Size
90*40*6mm
Applicable standard
ISO1524-1983(E)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
