Overview

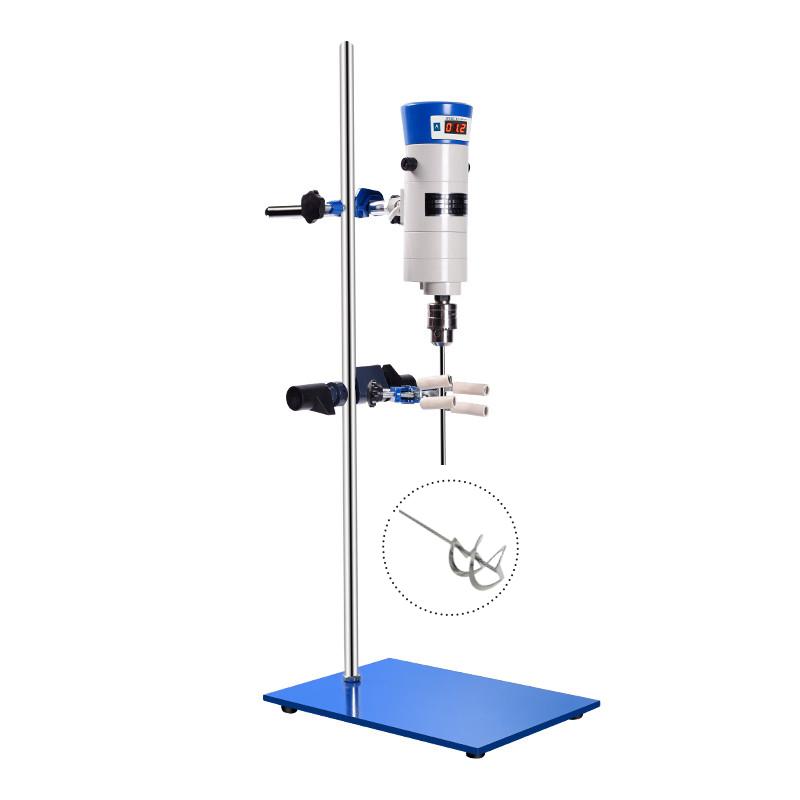

HUXI JB50-SH/20030076 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor (series micro motor), and uses a numerical control touch stepless governor to control the Rotation speed and digitally display the running status to ensure correct data collection. The output booster mechanism transmits the booster through multi-stage Non-metallic gears, which doubles the torque and achieves stable operation and low noise. The special pin design of the stirringrod makes it easy and flexible to unload, and the whole can achieve efficient liquid mixing and stirring.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type according to the experimental requirements (such as three hole fan type, dissolved type, three blades, etc.);
2. Use the Impeller special rolling head to install the Impeller to ensure flexible unloading;
3. Place the Stirrer on the open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz) and turn on the device.
5. Rotation speed (range 100~ 1300rpm) is set by numerical control touch stepless governor, and the running status is displayed digitally;
6. Start mixing and monitor the mixing process.
7. After the experiment, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate Impeller type and Rotation speed according to the liquid viscosity and sample capacity to avoid overload operation;
• Pay attention to the temperature of the equipment during continuous use to ensure that it is within a safe range;
When cleaning and maintaining, disconnect the power supply first to avoid electrical risks.
• Impeller and case cleaning after use to maintain equipment performance and life.
