Overview

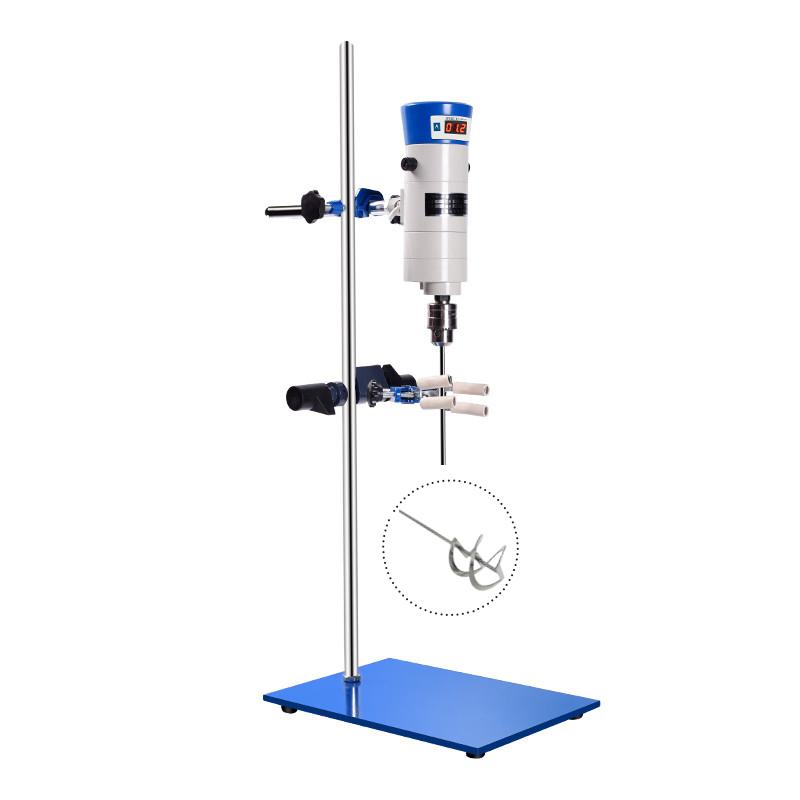

HUXI JB50-SH/20030080 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment specially designed for laboratories, suitable for biological, physical and chemical, cosmetics, health products, food and other fields. The product adopts novel design concepts and professional manufacturing processes, with the characteristics of large torque output at low speed and good continuous use performance. The drive motor adopts a series micro motor with large Power and compact structure, which is safe and reliable to run. The control adopts a numerical control touch stepless governor, which is convenient for speed regulation and digitally displays Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer provides power through a drive motor and uses multi-stage Non-metallic gears to transmit force, which doubles the torque and achieves stable operation and low noise. The numerical control touch stepless governor is used to control the motion state, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure the correct data collection. The Impeller is flexibly loaded and unloaded through a special pin to adapt to different experimental needs.
Applications
Biology, physics and chemistry, cosmetics, health products, food
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use a special rolling head to install the Impeller to ensure flexible loading and unloading.
3. Place the Stirrer on the open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
5. Rotation speed (100~ 1300rpm range) is set by numerical control touch stepless governor;
6. Start the equipment, observe the digital display Rotation speed status, and perform stirring operation;
7. After the experiment, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate Impeller type and Rotation speed according to the liquid viscosity and container size;
• Pay attention to the motor temperature when the equipment is used continuously to avoid overheating affecting the performance;
• Disconnect power during cleaning and maintenance to ensure safety.
• Clean the Impeller and Case in time after use to keep the equipment hygienic;
