Overview

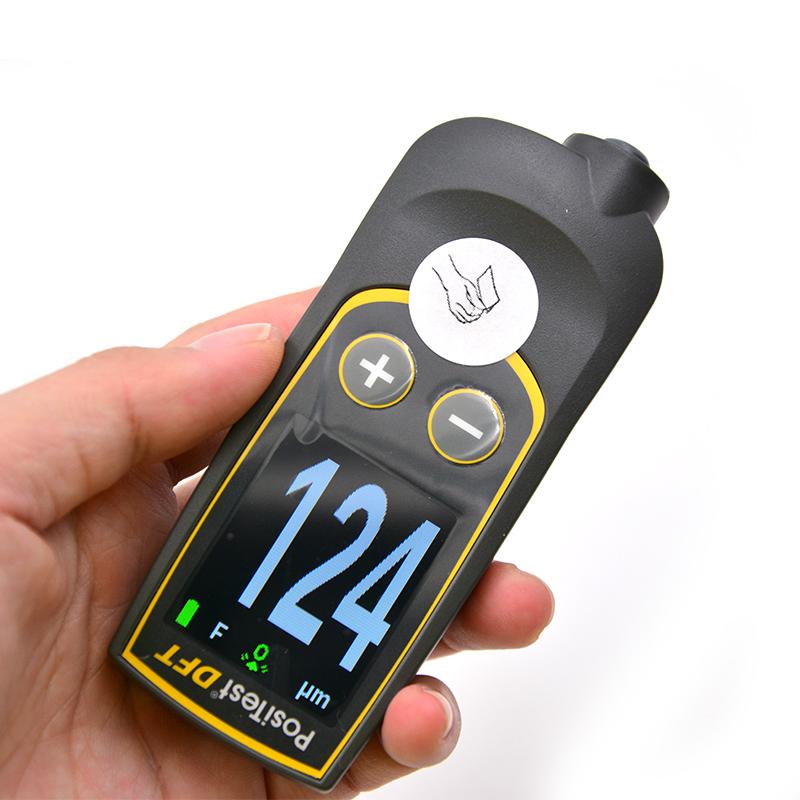

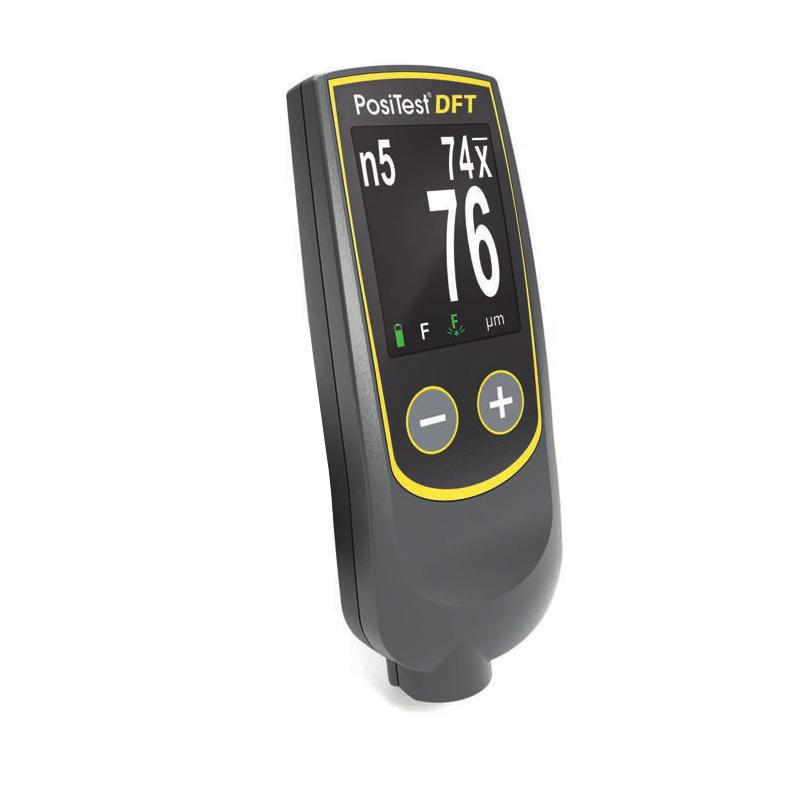

The Defelsko PosiTest DFT Ferrous Steel Surface Coating thickness gauge is a single-function Coating thickness gauge in the PosiTest DFT series, suitable for the measurement of the thickness of ferrous metal surface coatings, with a measurement range of 0 to 1000 microns. The thickness gauge has zero point Adjustment, built-in V-shaped groove Probe design, can be applied to rough surface testing and is also very suitable for cylindrical workpiece surface Coating thickness measurement, accurate measurement and stable performance.
Features
1. Test Fast, Repeatability Good
2. No need to calibrate most measurements
3. Zero-point calibrated feature, which is conducive to the testing of rough or curved samples
4. Convenient RESET reset feature, it can still perform well without a reference board
5. Robust Ruby Probe
6. Audio and visual measurement indication

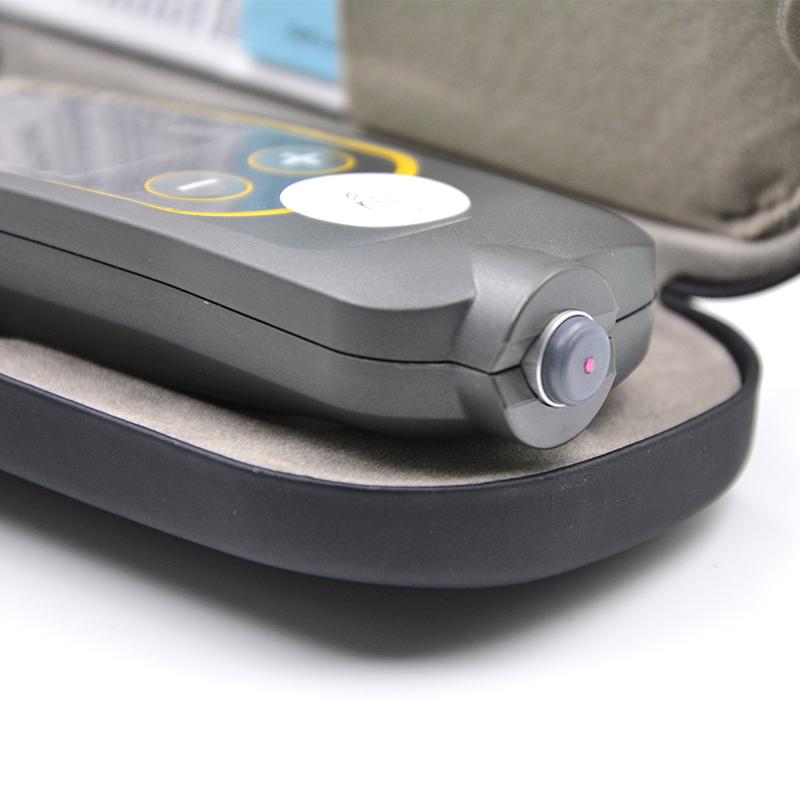

7. Unique V-groove Probe design meets the positioning measurement of cylindrical parts
8. Mil/micron/mm unit can be switched freely
9. Basic instructions are attached to the back of each thickness gauge
Principle
The principle of magnetic Induction is used for measurement of nonmagnetic coatings on ferrous metal substrates.
Applications

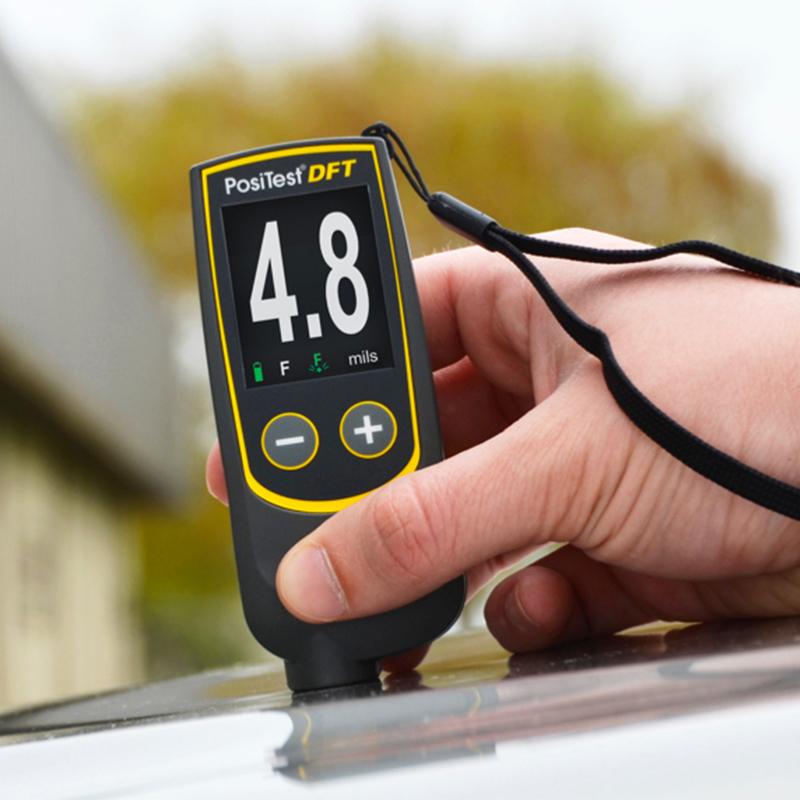

Powder lame plating lines, painting equipment, coating inspectors, painting plants, automotive repair, other industrial applications
Standards
ISO 2178/2360/2808、prEN ISO 19840、ASTM B244/B499/B659/D1186/D1400/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Boot preparation
2. Perform zero-point calibrating (for rough or curved samples)
3. Probe positioning measurement with V-groove
4. Read measurement results
5. Can be adjusted by RESET reset function
Notice
• Suitable for nonmagnetic coating measurement on ferrous metal substrates
• Measurement range from 0 to 1000 microns
• Ruby Probe with wear resistance
• Equipped with audio and visual measurement instructions

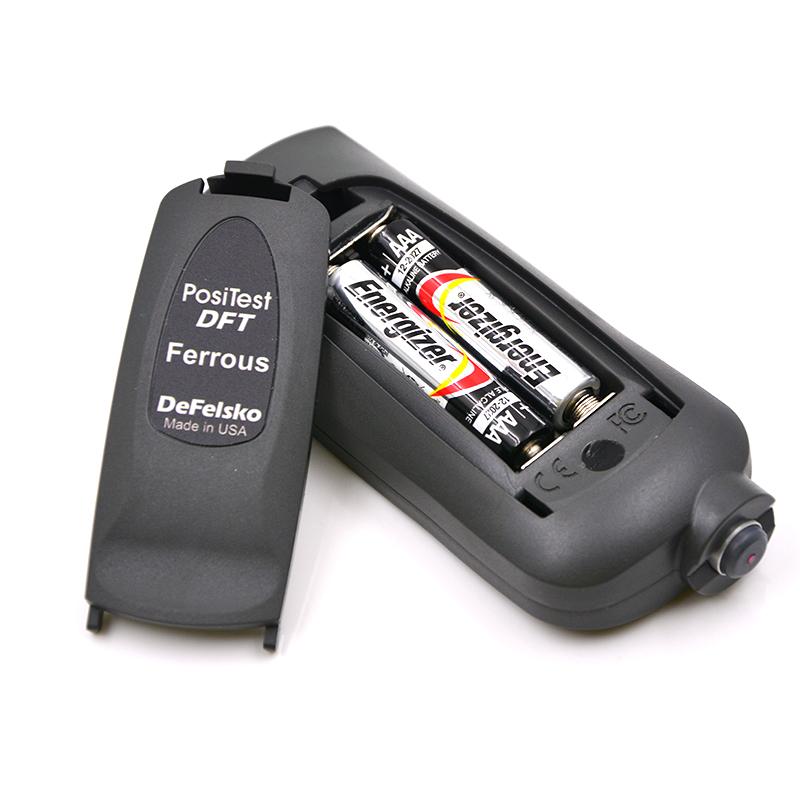

• Powered by 2 AAA alkaline batteries

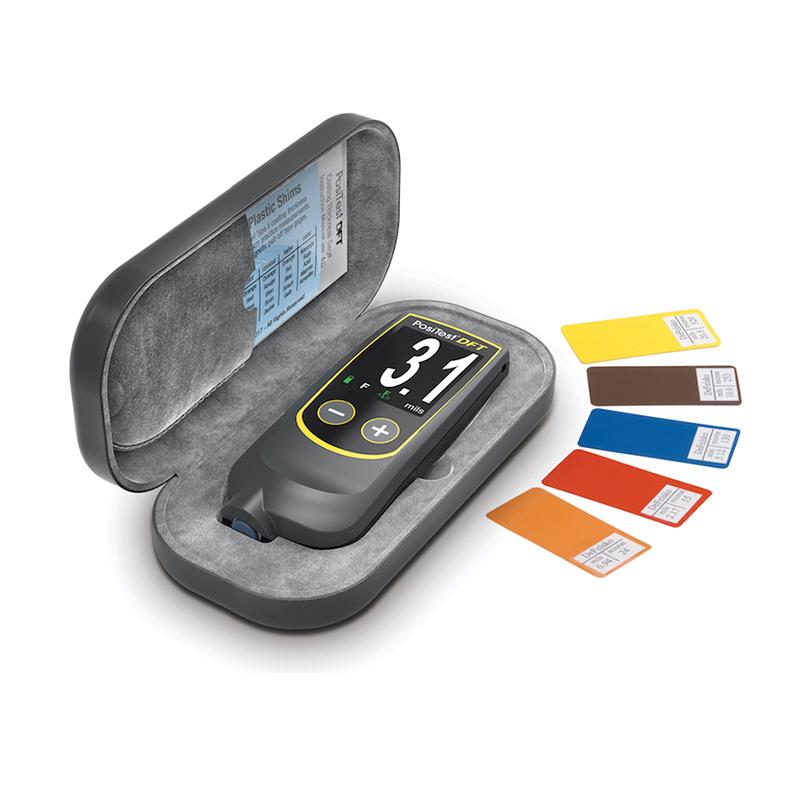

• Standard configuration includes One-piece Probe, Plastic Standard Sheet, Hard Case Encasement Case, AAA Battery and Instructions
