Overview

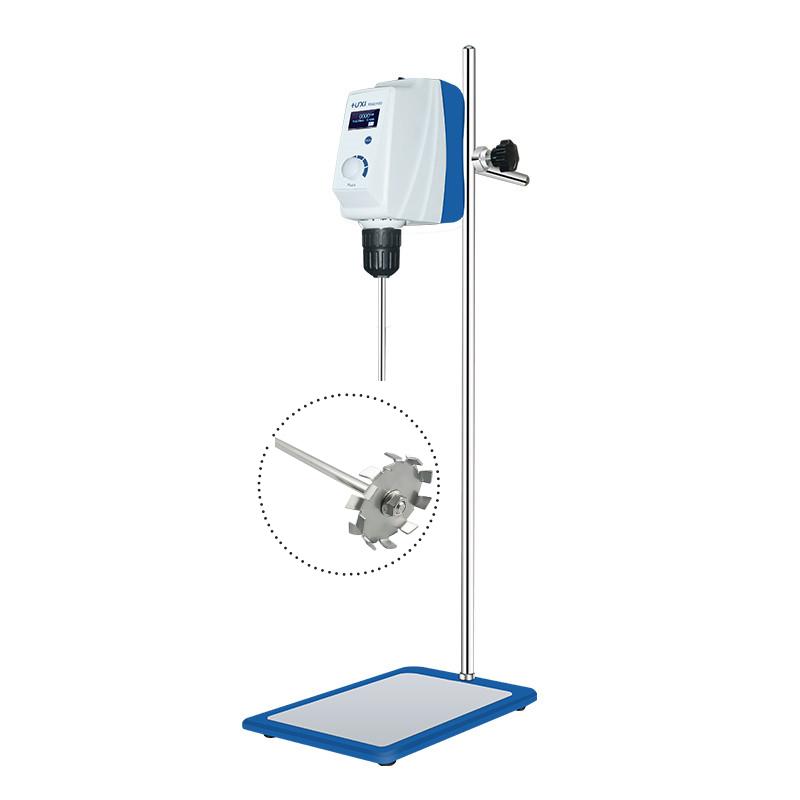

HUXI LCD top-mounted Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting fixed clip. The product is capable of high load, long-term continuous work, and has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
Impeller swirl/spin is driven by DC brushless motor to achieve mixing of solid-liquid, liquid-liquid or medium and high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
2. Connect the power supply and turn on the device.
3. Rotation speed and Working time set by LCD screen
Step 4 Start the mixing operation
5. Turn off the equipment after mixing
Notice
• Power supply voltage meets 100-240VAC requirements before use
• Operating Ambient Temperature should be kept within the range of 5-40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function, the device will automatically stop when there is an abnormality
• Use the appropriate Impeller type and size
• Regularly check the integrity of the chuck protective cover and non-slip pad
