Overview

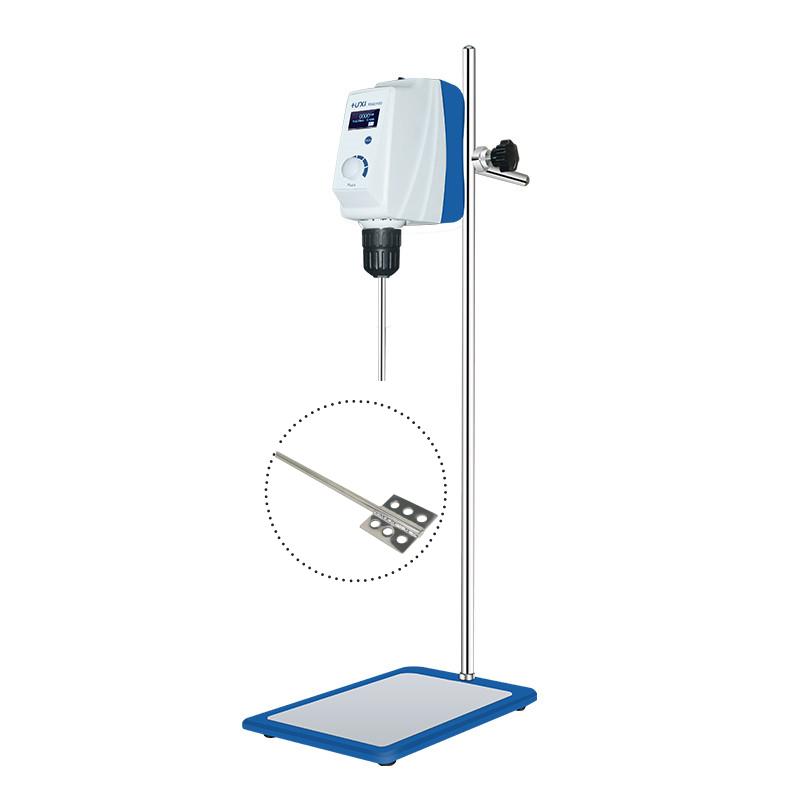

HUXI LCD top-mounted Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting and fixing clip design. The product is capable of high load and long-term continuous work, and has the automatic protection function of overload and abnormal conditions to ensure laboratory safety. It is mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to achieve mixing of medium and high viscosity liquids. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity change of the sample to ensure the mixing effect. Equipped with self-locking chuck and Cube lifting fixed clip to ensure stable and reliable mixing process.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it
2. Adjust the installation position of the stirring rod
3. Rotation speed and Working time
4. Start the equipment and start stirring
5. Time can be fine-tuned during the work process
6. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Pay attention to the use of chuck protective cover and non-slip pad
• The device will automatically stop and alarm when there is an overload or abnormality
• Impeller selection should be based on sample viscosity and container characteristics
• Regularly check the operating status of the equipment
